Airports for X-Plane

Årø - Molde Årø

Airport details

CountryNorway
StateMøre og Romsdal
RegionEN
AirspacePolaris Ctr
MunicipalityMolde
Elevation6ft (2m)
TimezoneGMT +1
Coordinates62.74472, 7.26250
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeENML
IATA codeMOL
FAA coden/a

Communication

Molde Årø ATIS133.075
Molde Årø AFIS119.950
Molde Årø Approach119.350

Approach frequencies

LOCRW25109.118.00mi
ILS-cat-IRW07109.7518.00mi
3.1° GSRW07109.7518.00mi

Runway info

Runway 07 / 25
 length2212m (7257ft)
 bearing81° / 261°
 width45m (148ft)
 surfaceasphalt
 displ threshold138m (453ft) / 99m (325ft)

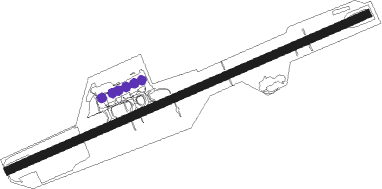

Airport layout - parking location Ramp


Taxiway locations

 C  D  E
Parking locations

 General  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
TATTAUTRA (MOLDE) NDB10.4260°393
BRSBREMSNES NDB22.949°371
KVBKVERNBERGET (KRISTIANSUND VOR/DME26.956°113.80
STGSTEGEN NDB58.6225°369

Departure and arrival routes

Transition altitude7000ft
SID end pointsdistanceoutbound heading
RW07
 NELS1A68mi81°
 BAMV1A26mi96°
 GIGI1A32mi168°
 TUTO1A67mi248°
RW25
 NELS1B68mi81°
 BAMV1B26mi96°
 GIGI1B32mi168°
 TUTO1B67mi248°

STAR starting pointsdistanceinbound heading
RW07
 TUMI3L71.753°
 DEKE3L59.7253°
 VEPU3L44.6296°
 OBIT3L44.4355°
RW25
 TUMI2M71.753°
 DEKE2M59.7253°
 VEPU2M44.6296°
 OBIT2M44.4355°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW07BEDUT (91°)BEDUT 4600ft
VEXAP (7mi, 130°) 4600ft
RW07VAVOP (71°)VAVOP 5800ft
VEXAP (5mi, 322°) 4600ft
 RNAVVEXAP 4600ft
BIGDU (4mi, 81°) 3800ft
ENML (12mi, 81°) 60ft
ML420 (9mi, 250°)
ML420 (turn) 2900ft
ERMEG (20mi, 321°) 4000ft
ERMEG (turn) 4000ft
RW25ERPER (271°)ERPER 5000ft
ABDEM (5mi, 304°) 5000ft
RW25UTILU (256°)UTILU 5000ft
ABDEM (5mi, 194°) 5000ft
 RNAVABDEM 5000ft
ML630 (4mi, 264°) 4000ft
ML631 (11mi, 264°) 59ft
ML631 (turn) 2600ft
ERMEG (19mi, 292°) 4000ft
ERMEG (turn) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DEKE2MDEKEBVHFleft70 (250)°> 7000ft1.0min timedICAO rules
DEKE3LBEDUTVHFright334 (154)°> 4600ft1.0min timedICAO rules
DEKE3LDEKEBVHFleft70 (250)°> 7000ft1.0min timedICAO rules
OBIT2MOBITIVHFleft130 (310)°> 14000ft1.0min timedICAO rules
OBIT3LOBITIVHFleft130 (310)°> 14000ft1.0min timedICAO rules
OBIT3LVAVOPVHFleft153 (333)°> 5800ft1.0min timedICAO rules
TUMI2MTUMIMVHFright191 (11)°> 14000ft1.0min timedICAO rules
TUMI3LTUMIMVHFright191 (11)°> 14000ft1.0min timedICAO rules
TUMI3LVAVOPVHFleft153 (333)°> 5800ft1.0min timedICAO rules
VEPU2MVEPULVHFright127 (307)°> 14000ft1.0min timedICAO rules
VEPU3LVAVOPVHFleft153 (333)°> 5800ft1.0min timedICAO rules
VEPU3LVEPULVHFright127 (307)°> 14000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
