Airports for X-Plane

Kalmar

Airport details

CountrySweden
StateKalmar län
RegionES
AirspaceSweden Ctr
MunicipalityKalmar
Elevation17ft (5m)
TimezoneGMT +1
Coordinates56.68555, 16.28750
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeESMQ
IATA codeKLR
FAA coden/a

Communication

Kalmar Tower127.055
Kalmar Tower130.805

Approach frequencies

ILS-cat-IRW16108.718.00mi
3° GSRW16108.718.00mi
Nearby Points of Interest:
Ebbetorp
-
Brukshagen
-
Kläckeberga socken
-
Sankt Birgitta church
-
Holy Cross Church
-
Dörby socken
-
Kalmar parish
-
Castenska gården
-
Stortorget
-
Residenset och Landsstatshuset, Kalmar
-
Kalmar stad
-
maritime museum in Kalmar
-
Hossmo socken
-
Förlösa socken
-
Ljungby sockenmagasin
-
Ljungby socken
-
Sankt Olofs kyrka
-
Åby socken
-
Kalmarsund VIII
-
Kingittorsuaq Runestone
-
Ryssby
-
Smålands runinskrifter 157
-
Ryssbylund
-
Algutsrum socken
-
Torslunda socken

Runway info

Runway 16 / 34
 length2042m (6699ft)
 bearing136° / 316°
 width45m (148ft)
 surfaceasphalt
Runway 05 / 23
 length654m (2146ft)
 bearing64° / 244°
 width40m (131ft)
 surfaceasphalt

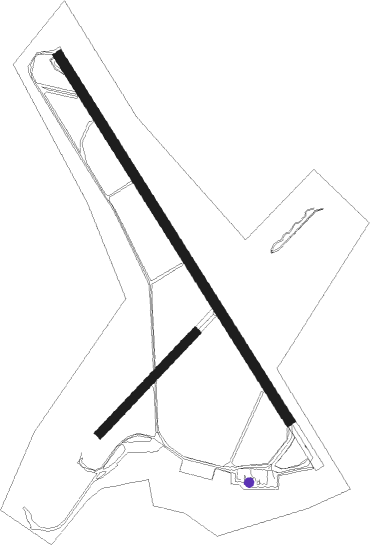

Airport layout - parking location 3


Taxiway locations

 A  A10  A8
Parking locations

 1  2  3  4  New

Nearby beacons

codeidentifierdistbearingfrequency
KALKALMAR VOR/DME0.1266°111.60
KMKALMAR NDB4.2316°366
MBLDME25.1164°115.60

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW16
 MOVI3B32mi6°
 LATV5B16mi58°
 LAGI5B14mi250°
 TILS5B15mi282°
RW34
 MOVI3C32mi6°
 LATV5C16mi58°

STAR starting pointsdistanceinbound heading
RW16
 LAGI6E13.970°
 TILS6E14.6102°
 MOVI4E32.1186°
 LATV6E15.7238°
RW34
 LAGI7F13.970°
 LATV7F15.7238°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW16MQ851 (136°)MQ851 2800ft
MQ850 (4mi, 136°) 2000ft
RW16MQ852 (114°)MQ852 2800ft
MQ850 (5mi, 74°) 2000ft
RW16MQ853 (171°)MQ853 2000ft
MQ850 (5mi, 254°) 2000ft
 RNAVMQ850 2000ft
MQ854 (5mi, 136°) 2000ft
ESMQ (7mi, 136°) 68ft
MQ550 (6mi, 136°)
EMKAS (8mi, 282°) 2000ft
EMKAS (turn) 2000ft
RW34DIXOT (356°)DIXOT 2000ft
SULAX (5mi, 74°) 2000ft
RW34GOPNI (316°)GOPNI 2000ft
SULAX (4mi, 316°) 2000ft
RW34TESVI (292°)TESVI 2000ft
SULAX (5mi, 254°) 2000ft
 RNAVSULAX 2000ft
MQ550 (4mi, 316°) 2000ft
ESMQ (6mi, 316°) 66ft
MQ900 (4mi, 316°)
EMKAS (7mi, 217°) 2000ft
EMKAS (turn) 2000ft
