Airports for X-Plane

Stockholm - Stockholm Arlanda

Airport details

CountrySweden
StateStockholms län
RegionES
AirspaceSweden Ctr
MunicipalitySigtuna kommun
Elevation137ft (42m)
TimezoneGMT +1
Coordinates59.65194, 17.91861
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeESSA
IATA codeARN
FAA coden/a

Communication

Stockholm Arlanda ATIS121.625
Stockholm Arlanda Clearance DEL121.825
Stockholm Arlanda Ground Control W121.700
Stockholm Arlanda Ground Control S121.975
Stockholm Arlanda Ground Control N121.925
Stockholm Arlanda Tower118.500
Stockholm Arlanda Approach 123.750123.750
Stockholm Arlanda STOCKHOLM CON123.750
Stockholm Arlanda Departure 123.750123.750
Stockholm Arlanda Approach 126.650123.650
Stockholm Arlanda Departure 126.650126.650

Approach frequencies

LOCRW08109.5518.00mi
ILS-cat-IIIRW01L109.918.00mi
ILS-cat-IIIRW01R109.3518.00mi
ILS-cat-IIIRW19L111.3518.00mi
ILS-cat-IRW19R110.718.00mi
ILS-cat-IRW26110.118.00mi
3° GSRW01L109.918.00mi
3° GSRW26110.118.00mi
3° GSRW19L111.3518.00mi
3° GSRW19R110.718.00mi
3° GSRW01R109.3518.00mi

Runway info

Runway 01L / 19R
 length3296m (10814ft)
 bearing20° / 200°
 width45m (148ft)
 surfaceconcrete
Runway 08 / 26
 length2493m (8179ft)
 bearing83° / 263°
 width45m (148ft)
 surfaceconcrete
Runway 01R / 19L
 length2496m (8189ft)
 bearing20° / 200°
 width45m (148ft)
 surfaceasphalt
 blast zone59m (194ft) / 0m (0ft)

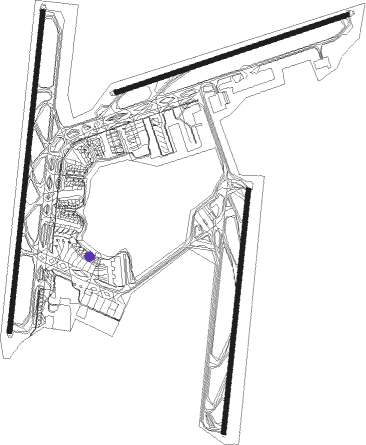

Airport layout - parking location 66


Taxiway locations

 D  JV  KW  LY  M  MU  PA  S
 SC  U  UA  UB  UC  UD  UE  UF
 UG  W  W1  W2  W3  W4  W5  W6
 W7  W8  X  X2  X3  X5  Y  Y10
 Y2  Y3  Y4  Y8  Y9  Y|X  Z  Z3
 ZB  ZE  ZF  ZG  ZH  ZJ  ZK  ZL
 ZM  ZN  ZP  ZQ  ZS  ZT
Parking locations

 1  10  101  102  103  104  105  106
 107  108  109  11  110  111  112  113
 115  117  119  12  13  14  15  16
 17  18  19  20  3  31  32  33
 34  35  36  37  38  39  4  40
 41  42  43  44  5  52  53  54
 55  56  57  58  6  60A  62  63
 64  65  66  67  68  7  8  9
 F28L  F28R  F29L  F29R  F30  F31  F32L  F32R
 F33L  F33R  F34  F35  F36L  F36R  F37  F38
 F39L  F39R  F40  F42  F44  G141  G142  G143
 G144  G145  G146  G148  R10  R3  R4  R5
 R6  R7  R8  R9  S1  S2  S2L  S3
 S3L  S4  S6  S71  S72  S73  S74  S75
 S77  S78  S79  S80  S81  S82

Nearby beacons

codeidentifierdistbearingfrequency
ARLARLANDA (STOCKHOLM) VOR/DME0.1290°116
WAARLANDA (STOCKHOLM) NDB0.2320°348
ASE(STOCKHOLM) DME1.4111°114.45
ANW(STOCKHOLM) DME4.1313°112.05
ASW(STOCKHOLM) DME4.8237°113.75
ANE(STOCKHOLM) DME4.973°113.30
TEBTEBBY VOR/DME11.2113°117.10
LNALENA NDB18.3259°330
ERKERKEN NDB19.360°383
UPUPPSALA NDB20.7326°366
CORCORNER NDB26.9228°388
HMRHAMMAR VOR/DME40.237°112.60
TRSTROSA VOR/DME44.7210°114.30
PEOSKAVSTA (STOCKHOLM) NDB57.9226°398

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW01L
 RESN4C43mi8°
 TOVR5C26mi83°
 MENG2C, BABA4C28mi106°
 TRS5C45mi210°
 NOSL5C40mi229°
 PETE1C38mi244°
 KOGA4C33mi302°
RW01R
 RESN3B43mi8°
 TOVR4B26mi83°
 BABA3B28mi106°
 TRS4B45mi210°
 NOSL4B40mi229°
 PETE1B38mi244°
 KOGA3B33mi302°
RW08
 RESN3L, LUMA5R43mi8°
 TOVR4L, TOVR4R26mi83°
 BABA3R, BABA3L28mi106°
 TRS5L, GALN3R45mi210°
 DIGL3R, NOSL5L40mi229°
 PETE1L, ABEN3R38mi244°
 TALE5R, KOGA3L33mi302°
RW19L
 LUMA5Q43mi8°
 TOVR4E26mi83°
 BABA3E28mi106°
 TRS5E, GALN5Q45mi210°
 NOSL5E, DIGL5Q40mi229°
 PETE1E, ABEN5Q38mi244°
 TALE5Q33mi302°
RW19R
 RESN5G43mi8°
 TOVR5G26mi83°
 BABA4G28mi106°
 TRS5G45mi210°
 NOSL5G40mi229°
 PETE1G38mi244°
 KOGA5G33mi302°
RW26
 RESN3K43mi8°
 TOVR4K26mi83°
 BABA3K28mi106°
 TRS3K45mi210°
 NOSL3K40mi229°
 PETE1K38mi244°
 KOGA3K33mi302°

STAR starting pointsdistanceinbound heading
RW01 (ALL)
 NILU2M50.22°
 ELTO7M29.9101°
 HMR5M40.2217°
 XILA4M35.1270°
RW01L
 NILU2J50.22°
 ELTO3J29.9101°
 HMR3J40.2217°
 XILA3J35.1270°
RW08
 NILU2S50.22°
 ELTO7S29.9101°
 HMR5S40.2217°
 XILA4S35.1270°
RW19 (ALL)
 NILU2P50.22°
 ELTO7P29.9101°
 HMR4P40.2217°
 XILA5P35.1270°
RW19R
 NILU2N50.22°
 ELTO3N29.9101°
 HMR3N40.2217°
 XILA3N35.1270°
RW26
 NILU2T, NILU2V50.22°
 ELTO2H, ELTO4T, ELTO3V29.9101°
 HMR3V, HMR4T40.2217°
 XILA3V, XILA5T35.1270°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW01LYALJAC (76°)ALJAC 4000ft
SA731 (5mi, 96°) 4000ft
 RNAVSA731 4000ft
SA732 (3mi, 96°) 3500ft
SA733 (5mi, 71°)
ESSA (5mi, 20°) 155ft
SA515 (turn)
(3680mi, 197°) 1500ft
RW01RXINLUX (66°)INLUX 4000ft
SA745 (4mi, 95°) 3500ft
 RNAVSA745 3500ft
SA740 (4mi, 79°) 2500ft
SA739 (3mi, 60°)
SA638 (2mi, 43°)
ESSA (4mi, 344°) 189ft
ESSA (turn)
(3679mi, 197°) 600ft
(turn) 1500ft
RW01RYOGMAK (344°)OGMAK 4000ft
SA649 (4mi, 350°)
SA648 (4mi, 350°) 2500ft
 RNAVSA648 2500ft
SA647 (3mi, 330°)
SA638 (2mi, 344°)
ESSA (4mi, 344°) 189ft
ESSA (turn)
(3679mi, 197°) 600ft
(turn) 1500ft
RW01RZREYMY (278°)REYMY 4000ft
SA575 (6mi, 259°) 2500ft
 RNAVSA575 2500ft
SA571 (2mi, 259°) 2300ft
SA638 (4mi, 293°)
ESSA (4mi, 344°) 189ft
ESSA (turn)
(3679mi, 197°) 600ft
(turn) 1500ft
RW19RXBALVI (106°)BALVI 5000ft
SA872 (4mi, 76°)
SA873 (3mi, 82°) 3500ft
 RNAVSA873 3500ft
SA543 (6mi, 115°)
ESSA (4mi, 200°) 169ft
(3679mi, 197°) 1500ft
(turn) 1500ft
RW19RYELFEC (175°)ELFEC 5000ft
SA874 (4mi, 202°)
SA875 (3mi, 148°) 3500ft
 RNAVSA875 3500ft
SA542 (5mi, 149°)
SA543 (2mi, 173°)
ESSA (4mi, 200°) 169ft
(3679mi, 197°) 1500ft
(turn) 1500ft
RW26-YSA501 (186°)SA501 5000ft
SA502 (6mi, 93°)
SA503 (3mi, 133°) 3400ft
 RNAVSA503 3400ft
SA504 (5mi, 221°)
ESSA (7mi, 262°) 178ft
SA730 (4mi, 265°)
SA730 (turn) 1500ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ELTO4TELTOKVHFleft285 (105)°> 10000ft1.5min timed230
ELTO4TERKFIXleft38 (218)°> 2500ft1.0min timed230
ELTO7MELTOKVHFleft285 (105)°> 10000ft1.5min timed230
ELTO7MLNAFIXleft259 (79)°> 2500ft1.0min timed230
ELTO7PBALVIVHFleft294 (114)°> 2500ft1.0min timed230
ELTO7PELTOKVHFleft285 (105)°> 10000ft1.5min timed230
ELTO7SBALVIVHFleft294 (114)°> 2500ft1.0min timed230
ELTO7SELTOKVHFleft285 (105)°> 10000ft1.5min timed230
HMR4PERKFIXleft38 (218)°> 2500ft1.0min timed230
HMR4PHMRNDBleft11 (191)°> 10000ft1.5min timed230
HMR4TERKFIXleft38 (218)°> 2500ft1.0min timed230
HMR4THMRNDBleft11 (191)°> 10000ft1.5min timed230
HMR5MHMRNDBleft11 (191)°> 10000ft1.5min timed230
HMR5MTEBNDBright177 (357)°> 2500ft1.0min timed230
HMR5SHMRNDBleft11 (191)°> 10000ft1.5min timed230
HMR5STEBNDBright177 (357)°> 2500ft1.0min timed230
NILU2MNILUGVHFright187 (7)°> 10000ft1.0min timed230
NILU2MTEBNDBright177 (357)°> 2500ft1.0min timed230
NILU2PERKFIXleft38 (218)°> 2500ft1.0min timed230
NILU2PNILUGVHFright187 (7)°> 10000ft1.0min timed230
NILU2PTEBNDBright177 (357)°> 2500ft1.0min timed230
NILU2SNILUGVHFright187 (7)°> 10000ft1.0min timed230
NILU2STEBNDBright177 (357)°> 2500ft1.0min timed230
NILU2TNILUGVHFright187 (7)°> 10000ft1.0min timed230
NILU2TTEBNDBright177 (357)°> 2500ft1.0min timed230
XILA4MTEBNDBright177 (357)°> 2500ft1.0min timed230
XILA4MXILANVHFleft68 (248)°10000ft - 24500ft1.5min timed230
XILA4STEBNDBright177 (357)°> 2500ft1.0min timed230
XILA4SXILANVHFleft68 (248)°10000ft - 24500ft1.5min timed230
XILA5PERKFIXleft38 (218)°> 2500ft1.0min timed230
XILA5PXILANVHFleft68 (248)°10000ft - 24500ft1.5min timed230
XILA5TTEBNDBright177 (357)°> 2500ft1.0min timed230
XILA5TXILANVHFleft68 (248)°10000ft - 24500ft1.5min timed230
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
