Airports for X-Plane

Port Louis - Sir Seewoosagur Ramgoolam Intl

Airport details

CountryMauritius
StateGrand Port
RegionFI
AirspaceMauritius Ctr
Elevation186ft (57m)
TimezoneGMT +4
Coordinates-20.42967, 57.67484
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeFIMP
IATA codeMRU
FAA coden/a

Communication

Sir Seewoosagur Ramgoolam Intl ATIS126.200
Sir Seewoosagur Ramgoolam Intl Tower118.100
Sir Seewoosagur Ramgoolam Intl Approach119.100

Approach frequencies

ILS-cat-IRW14109.918.00mi
3.5° GSRW14109.918.00mi

Runway info

Runway 14 / 32
 length3373m (11066ft)
 bearing116° / 296°
 width45m (148ft)
 surfaceasphalt
 displ threshold329m (1079ft) / 0m (0ft)
 blast zone61m (200ft) / 60m (197ft)

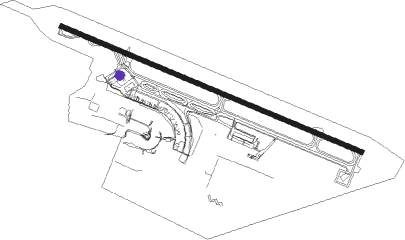

Airport layout - parking location 03


Taxiway locations

 A  C  D  E  F  J  N  Y
Parking locations

 01  02  03  04  05  07  08  09
 10  11  12  13  14  15  16  41
 42  43  44  45  46  47  48  NCG

Nearby beacons

codeidentifierdistbearingfrequency
PLSPLAISANCE (MAURITIUS) VOR/DME0.9308°113.70
MSPLAISANCE (MAURITIUS) NDB1124°343
FFFLIC EN FLAC (MAURITIUS) NDB19.2296°258
GBYGRAND BAY VOR/DME25.2350°114.80

Departure and arrival routes

Transition altitude4000ft
SID end pointsdistanceoutbound heading
RW14
 UDMED1150mi22°
 ETGOR145mi230°
 IBSIS180mi245°
 SOBAT181mi258°
 RASMA193mi278°
 NIBIS1147mi303°
 TIBAG1167mi313°
 OKMAR1162mi324°
 GABKI125mi350°
 UTIVA1151mi352°
RW32
 UDME1B150mi22°
 TAPE1B150mi42°
 DUDI1B150mi51°
 GUTK1B150mi59°
 ARIG1B150mi65°
 OVTI1B150mi70°
 IXAB1B150mi84°
 KINI1B149mi102°
 ATLO1B149mi113°
 ETGO1B45mi230°
 IBSI1B80mi245°
 SOBA1B81mi258°
 RASM1B93mi278°
 GERU1B13mi297°
 NIBI1B147mi303°
 TIBA1B167mi313°
 OKMA1B221mi325°
 UTIV1B151mi352°

STAR starting pointsdistanceinbound heading
RW14
 FF119.2116°
 GABKI125.2170°
RW32
 EPREX114.3265°
 GEVEV114.1295°
 EVOTU114.1327°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW14FF (116°)FF 4000ft
GERUS (7mi, 115°)
CR14 (2mi, 115°) 3940ft
RW14GABKI (170°)GABKI 4000ft
ESPIR (15mi, 222°) 4000ft
GERUS (8mi, 160°)
CR14 (2mi, 115°) 3940ft
 RNAVCR14 3940ft
ETLIV (turn) 3570ft
FIMP (9mi, 117°) 233ft
EPNES (3mi, 112°)
(3602mi, 290°) 4000ft
RW32EPREX (265°)EPREX 4000ft
ESTEK (8mi, 208°) 3590ft
RW32EVOTU (327°)EVOTU 4000ft
ESTEK (8mi, 29°) 3590ft
RW32GEVEV (295°)GEVEV 4000ft
ESTEK (2mi, 296°) 3590ft
 RNAVESTEK 3590ft
EPNUK (6mi, 296°) 1740ft
FIMP (6mi, 294°) 148ft
(3599mi, 290°) 590ft
IBKOV (3599mi, 110°)
IBKOV (turn) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
EPREX1GABKIVHFleft59 (239)°> 4000ft1.0min timedICAO rules
EPREX1GEVEVVHFright136 (316)°> 4000ft1.0min timedICAO rules
EVOTU1GEVEVVHFright136 (316)°> 4000ft1.0min timedICAO rules
FF1FFFIXleft316 (136)°> 4000ft1.0min timedICAO rules
GABKI1GABKIVHFleft59 (239)°> 4000ft1.0min timedICAO rules
GEVEV1GEVEVVHFright136 (316)°> 4000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
