Airports for X-Plane

Lanzarote Island - Lanzarote

Airport details

CountrySpain
StateCanary Islands
RegionGC
AirspaceCanaries Ctr
MunicipalitySan Bartolomé
Elevation14ft (4m)
TimezoneGMT +0
Coordinates28.94753, -13.60707
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeGCRR
IATA codeACE
FAA coden/a

Communication

Lanzarote ATIS118.625
Lanzarote Ground Control121.800
Lanzarote Tower124.000
Lanzarote Tower120.700
Lanzarote CANARIAS Approach129.300
Lanzarote Departure133.000

Approach frequencies

ILS-cat-IRW03109.118.00mi
3° GSRW03109.118.00mi
Nearby Points of Interest:
Edificio Segarra
-
Castillo de San José

Runway info

Runway 03 / 21
 length2406m (7894ft)
 bearing30° / 210°
 width45m (148ft)
 surfaceasphalt
 displ threshold90m (295ft) / 0m (0ft)
 blast zone69m (226ft) / 70m (230ft)

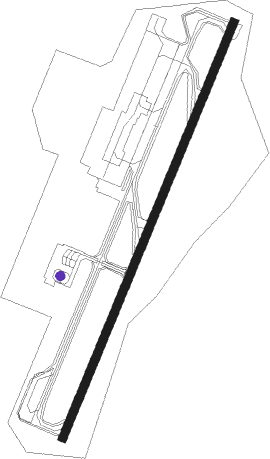

Airport layout - parking location M8


Taxiway locations

 E1  E2  E4  R4  R5  RA  RB
Parking locations

 AG1  AG2  AG3  AG4  Cargo  Gate  M1  M2
 M3  M4  M5  M6  M7  M8

Nearby beacons

codeidentifierdistbearingfrequency
TLZLANZAROTE TACAN0.1178°114.70
LTELANZAROTE AEROPUERTO VOR/DME0.383°114.40
LZRLANZAROTE VOR/DME1424°115.20
FTVFUERTEVENTURA VOR/DME33.8206°114.10
FUEDME36.5205°108
FVFUERTEVENTURA NDB36.5205°397

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW03
 VAST2Y, VAST7M94mi1°
 DESU1Y, DESU1M88mi11°
 KORA3V, KORA7M72mi53°
 TEND7M25mi185°
 BAMK2M35mi192°
 SOTA2M60mi194°
 KEME3M26mi232°
 LORP3M70mi235°
 LARY1M65mi266°
 SAMA6M, SAMA1Y125mi338°
RW21
 VAST7N94mi1°
 DESU1N88mi11°
 KORA2W, KORA8N72mi53°
 TEND3N25mi185°
 BAMK2N35mi192°
 SOTA1N60mi194°
 KEME3N26mi232°
 LORP1N70mi235°
 LARY1N65mi266°
 SAMA7N125mi338°

STAR starting pointsdistanceinbound heading
RW03
 RASE2P46.773°
 LARY2P64.686°
 TERT1P83.5218°
 DEVL1Z, DEVL4P50.0251°
RW21
 RASE2Q46.773°
 LARY2X64.686°
 TERT4Q83.5218°
 DEVL3Q, DEVL1Z50.0251°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW03-YBAPAL (326°)BAPAL 5000ft
GARGO (8mi, 285°) 2300ft
LOBSO (5mi, 285°) 2300ft
GOLFY (2mi, 322°) 2300ft
 RNAVGOLFY 2300ft
RR06S (5mi, 30°) 1700ft
RR407 (4mi, 30°) 387ft
RR409 (10mi, 78°)
RR410 (11mi, 58°)
RR411 (6mi, 0°) 3500ft
LZR (13mi, 270°)
LTE (14mi, 203°) 5000ft
LTE (turn) 5000ft
RW03-ZBAPAL (326°)BAPAL 5000ft
GARGO (8mi, 285°) 2300ft
LOBSO (5mi, 285°) 2300ft
GOLFY (2mi, 322°) 2300ft
 RNAVGOLFY 2300ft
RR05S (5mi, 30°) 1700ft
GCRR (6mi, 29°) 69ft
RR408 (turn)
RR409 (9mi, 83°)
RR410 (11mi, 58°)
RR411 (6mi, 0°) 3500ft
LZR (13mi, 270°)
LTE (14mi, 203°) 5000ft
LTE (turn) 5000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DEVL1ZLTENDBright209 (29)°> 5000ft1.0min timedICAO rules
DEVL3QNAVIMVHFleft54 (234)°> 4000ft1.0min timed220
DEVL3QRR512VHFright147 (327)°11000ft - 13000ft1.0min timed240
DEVL4PALEDUVHFleft23 (203)°> 6000ft1.0min timed220
DEVL4PBAPALVHFright153 (333)°> 5000ft1.0min timed220
DEVL4PROCAZVHFleft68 (248)°6000ft - 12000ft1.0min timed240
LARY2PMAPEDVHFleft270 (90)°> 5000ft1.0min timedICAO rules
LARY2XLUNOBVHFleft334 (154)°> 6000ft1.0min timedICAO rules
RASE2PMAPEDVHFleft270 (90)°> 5000ft1.0min timedICAO rules
RASE2QLUNOBVHFleft334 (154)°> 6000ft1.0min timedICAO rules
TERT1PALEDUVHFleft23 (203)°> 6000ft1.0min timed220
TERT1PBAPALVHFright153 (333)°> 5000ft1.0min timed220
TERT1PTICKEVHFright23 (203)°> 9000ft1.0min timedICAO rules
TERT4QGAKMIVHFleft27 (207)°> 9000ft1.0min timedICAO rules
TERT4QNAVIMVHFleft54 (234)°> 4000ft1.0min timed220
*) magnetic outbound (inbound) holding course
