Marrakech - Marrakech Menara
Airport details
| Country | Morocco |
| State | Marrakech Province |
| Region | GM |
| Airspace | Casablanca Ctr |
| Municipality | Marrakesh |
| Elevation | 1541ft (470m) |
| Timezone | GMT +0 |
| Coordinates | 31.60861, -8.04083 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | GMMX |
| IATA code | RAK |
| FAA code | n/a |
Communication
| Marrakech Menara MARRAKECH Information | 121.950 |
| Marrakech Menara MARRAKECH Tower | 118.700 |
| Marrakech Menara MARRAKECH Approach | 119.700 |
Approach frequencies
| ILS-cat-I | RW10 | 109.7 | 18.00mi |
| 3° GS | RW10 | 109.7 | 18.00mi |
Nearby Points of Interest:
Menara gardens
-Bab er-Robb
-Bab Ksiba
-Al-Mansur Mosque
-Saadian Tombs
-Walls of Marrakech
-Shrob ou shouf fountain
-Agdal Gardens
-Ben Youssef Madrasa
-Bab Debbagh
-Bab Aghmat
-Palmeraie
-Tahannaout

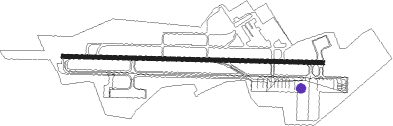

Runway info
| Runway 10 / 28 | ||
| length | 3095m (10154ft) | |
| bearing | 95° / 275° | |
| width | 45m (148ft) | |
| surface | asphalt | |
| blast zone | 60m (197ft) / 61m (200ft) | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| MAK | MARRAKECH VOR/DME | 3.1 | 274° | 113.30 |
| CNZ | MARRAKECH NDB | 3.9 | 96° | 267 |
| BGR | BENGUERIR VOR/DME | 33.9 | 16° | 115.40 |
Departure and arrival routes
| Transition altitude | 6000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW10 | |||
| OBOG3D | 18mi | 45° | |
| MOKI3D | 27mi | 122° | |
| LISR3D | 32mi | 230° | |
| MAGA3D | 38mi | 264° | |
| MABA3D | 32mi | 343° | |
| RW28 | |||
| OBOG4D | 18mi | 45° | |
| MOKI4D | 27mi | 122° | |
| LISR4D | 32mi | 230° | |
| MAGA4D | 38mi | 264° | |
| MABA4D | 32mi | 343° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| RW10 | |||
| LISR1A, LISR3A | 32.0 | 50° | |
| GOSN1A, GOSN3A | 32.4 | 61° | |
| MAGA1A, MAGA3A | 38.0 | 84° | |
| BENO3A | 35.9 | 140° | |
| MABA3A, MABA1A | 31.9 | 163° | |
| OBOG7A, OBOG3A, OBOG1A | 17.9 | 225° | |
| KUDA3A | 22.3 | 242° | |
| MOKI3A, MOKI1A | 27.2 | 302° | |
| RW28 | |||
| LISR4A, LISR2A | 32.0 | 50° | |
| GOSN4A, GOSN2A | 32.4 | 61° | |
| MAGA4A, MAGA2A | 38.0 | 84° | |
| BENO4A | 35.9 | 140° | |
| MABA4A, MABA2A | 31.9 | 163° | |
| OBOG8A, OBOG4A, OBOG2A | 17.9 | 225° | |
| KUDA4A | 22.3 | 242° | |
| MOKI4A, MOKI2A | 27.2 | 302° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW10 | LANBA (123°) | LANBA 6000ft MX102 (13mi, 159°) 3200ft |
| RW10 | ODALO (95°) | ODALO 6000ft MX102 (9mi, 95°) 3200ft |
| RW10 | SIVSO (64°) | SIVSO 6000ft MX102 (10mi, 8°) 3200ft |
| RNAV | MX102 3200ft MX104 (8mi, 95°) 3200ft MX106 (4mi, 95°) 1846ft MX106 (turn) 2000ft MX608 (8mi, 223°) 4500ft ODALO (19mi, 293°) 6000ft ODALO (turn) 6000ft | |
| RW28 | MX283 (296°) | MX283 5500ft RINPA (5mi, 7°) 4300ft |
| RW28 | RAMIM (256°) | RAMIM 5500ft RINPA (5mi, 187°) 4300ft |
| RNAV | RINPA 4300ft MX281 (5mi, 275°) 3200ft GMMX (6mi, 276°) 1595ft ODALO (23mi, 275°) 6000ft ODALO (turn) 6000ft |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| BENO3A | ODALO | VHF | right | 279 (99)° | 6000ft - 11000ft | DME 5.0mi | ICAO rules |
| BENO4A | RAMIM | VHF | right | 98 (278)° | 5500ft - 12000ft | 1.0min timed | 210 |
| GOSN1A | ODALO | VHF | right | 279 (99)° | 6000ft - 11000ft | DME 5.0mi | ICAO rules |
| GOSN2A | ODALO | VHF | right | 279 (99)° | 6000ft - 11000ft | DME 5.0mi | ICAO rules |
| GOSN3A | ODALO | VHF | right | 279 (99)° | 6000ft - 11000ft | DME 5.0mi | ICAO rules |
| KUDA3A | ODALO | VHF | right | 279 (99)° | 6000ft - 11000ft | DME 5.0mi | ICAO rules |
| KUDA4A | RAMIM | VHF | right | 98 (278)° | 5500ft - 12000ft | 1.0min timed | 210 |
| LISR1A | ODALO | VHF | right | 279 (99)° | 6000ft - 11000ft | DME 5.0mi | ICAO rules |
| LISR2A | ODALO | VHF | right | 279 (99)° | 6000ft - 11000ft | DME 5.0mi | ICAO rules |
| LISR3A | ODALO | VHF | right | 279 (99)° | 6000ft - 11000ft | DME 5.0mi | ICAO rules |
| MABA1A | ODALO | VHF | right | 279 (99)° | 6000ft - 11000ft | DME 5.0mi | ICAO rules |
| MABA2A | ODALO | VHF | right | 279 (99)° | 6000ft - 11000ft | DME 5.0mi | ICAO rules |
| MABA3A | ODALO | VHF | right | 279 (99)° | 6000ft - 11000ft | DME 5.0mi | ICAO rules |
| MABA4A | RAMIM | VHF | right | 98 (278)° | 5500ft - 12000ft | 1.0min timed | 210 |
| MAGA1A | ODALO | VHF | right | 279 (99)° | 6000ft - 11000ft | DME 5.0mi | ICAO rules |
| MAGA2A | ODALO | VHF | right | 279 (99)° | 6000ft - 11000ft | DME 5.0mi | ICAO rules |
| MAGA3A | ODALO | VHF | right | 279 (99)° | 6000ft - 11000ft | DME 5.0mi | ICAO rules |
| MOKI1A | MAK | NDB | left | 279 (99)° | 3200ft - 11000ft | 1.0min timed | 220 |
| MOKI2A | MAK | NDB | left | 279 (99)° | 3200ft - 11000ft | 1.0min timed | 220 |
| MOKI3A | ODALO | VHF | right | 279 (99)° | 6000ft - 11000ft | DME 5.0mi | ICAO rules |
| MOKI4A | RAMIM | VHF | right | 98 (278)° | 5500ft - 12000ft | 1.0min timed | 210 |
| OBOG1A | MAK | NDB | left | 279 (99)° | 3200ft - 11000ft | 1.0min timed | 220 |
| OBOG2A | MAK | NDB | left | 279 (99)° | 3200ft - 11000ft | 1.0min timed | 220 |
| OBOG3A | ODALO | VHF | right | 279 (99)° | 6000ft - 11000ft | DME 5.0mi | ICAO rules |
| OBOG4A | RAMIM | VHF | right | 98 (278)° | 5500ft - 12000ft | 1.0min timed | 210 |
| OBOG7A | MAK | NDB | left | 279 (99)° | 3200ft - 11000ft | 1.0min timed | 220 |
| OBOG8A | MAK | NDB | left | 279 (99)° | 3200ft - 11000ft | 1.0min timed | 220 |
| *) magnetic outbound (inbound) holding course | |||||||
Disclaimer
The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
