Airports for X-Plane

Marrakech - Marrakech Menara

Airport details

CountryMorocco
StateMarrakech Province
RegionGM
AirspaceCasablanca Ctr
MunicipalityMarrakesh
Elevation1541ft (470m)
TimezoneGMT +0
Coordinates31.60861, -8.04083
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeGMMX
IATA codeRAK
FAA coden/a

Communication

Marrakech Menara MARRAKECH Information121.950
Marrakech Menara MARRAKECH Tower118.700
Marrakech Menara MARRAKECH Approach119.700

Approach frequencies

ILS-cat-IRW10109.718.00mi
3° GSRW10109.718.00mi
Nearby Points of Interest:
Menara gardens
-
Bab er-Robb
-
Bab Ksiba
-
Al-Mansur Mosque
-
Saadian Tombs
-
Walls of Marrakech
-
Shrob ou shouf fountain
-
Agdal Gardens
-
Ben Youssef Madrasa
-
Bab Debbagh
-
Bab Aghmat
-
Palmeraie
-
Tahannaout

Runway info

Runway 10 / 28
 length3095m (10154ft)
 bearing95° / 275°
 width45m (148ft)
 surfaceasphalt
 blast zone60m (197ft) / 61m (200ft)

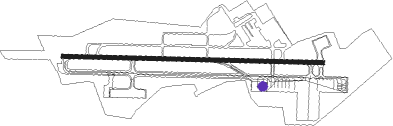

Airport layout - parking location 2


Taxiway locations

 C4
Parking locations

 1  10  11  14  15  16  17  18
 19  2  21C  21D  21E  21F  21G  22C
 22D  22E  22F  22G  3  4  5  6
 7  8  9  A1  A2  A3  A4  A5
 A6  E1  E2  E3  E4  E5  J1  J2
 J3

Nearby beacons

codeidentifierdistbearingfrequency
MAKMARRAKECH VOR/DME3.1274°113.30
CNZMARRAKECH NDB3.996°267
BGRBENGUERIR VOR/DME33.916°115.40

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW10
 OBOG3D18mi45°
 MOKI3D27mi122°
 LISR3D32mi230°
 MAGA3D38mi264°
 MABA3D32mi343°
RW28
 OBOG4D18mi45°
 MOKI4D27mi122°
 LISR4D32mi230°
 MAGA4D38mi264°
 MABA4D32mi343°

STAR starting pointsdistanceinbound heading
RW10
 LISR1A, LISR3A32.050°
 GOSN1A, GOSN3A32.461°
 MAGA1A, MAGA3A38.084°
 BENO3A35.9140°
 MABA3A, MABA1A31.9163°
 OBOG7A, OBOG3A, OBOG1A17.9225°
 KUDA3A22.3242°
 MOKI3A, MOKI1A27.2302°
RW28
 LISR4A, LISR2A32.050°
 GOSN4A, GOSN2A32.461°
 MAGA4A, MAGA2A38.084°
 BENO4A35.9140°
 MABA4A, MABA2A31.9163°
 OBOG8A, OBOG4A, OBOG2A17.9225°
 KUDA4A22.3242°
 MOKI4A, MOKI2A27.2302°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW10LANBA (123°)LANBA 6000ft
MX102 (13mi, 159°) 3200ft
RW10ODALO (95°)ODALO 6000ft
MX102 (9mi, 95°) 3200ft
RW10SIVSO (64°)SIVSO 6000ft
MX102 (10mi, 8°) 3200ft
 RNAVMX102 3200ft
MX104 (8mi, 95°) 3200ft
MX106 (4mi, 95°) 1846ft
MX106 (turn) 2000ft
MX608 (8mi, 223°) 4500ft
ODALO (19mi, 293°) 6000ft
ODALO (turn) 6000ft
RW28MX283 (296°)MX283 5500ft
RINPA (5mi, 7°) 4300ft
RW28RAMIM (256°)RAMIM 5500ft
RINPA (5mi, 187°) 4300ft
 RNAVRINPA 4300ft
MX281 (5mi, 275°) 3200ft
GMMX (6mi, 276°) 1595ft
ODALO (23mi, 275°) 6000ft
ODALO (turn) 6000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BENO3AODALOVHFright279 (99)°6000ft - 11000ftDME 5.0miICAO rules
BENO4ARAMIMVHFright98 (278)°5500ft - 12000ft1.0min timed210
GOSN1AODALOVHFright279 (99)°6000ft - 11000ftDME 5.0miICAO rules
GOSN2AODALOVHFright279 (99)°6000ft - 11000ftDME 5.0miICAO rules
GOSN3AODALOVHFright279 (99)°6000ft - 11000ftDME 5.0miICAO rules
KUDA3AODALOVHFright279 (99)°6000ft - 11000ftDME 5.0miICAO rules
KUDA4ARAMIMVHFright98 (278)°5500ft - 12000ft1.0min timed210
LISR1AODALOVHFright279 (99)°6000ft - 11000ftDME 5.0miICAO rules
LISR2AODALOVHFright279 (99)°6000ft - 11000ftDME 5.0miICAO rules
LISR3AODALOVHFright279 (99)°6000ft - 11000ftDME 5.0miICAO rules
MABA1AODALOVHFright279 (99)°6000ft - 11000ftDME 5.0miICAO rules
MABA2AODALOVHFright279 (99)°6000ft - 11000ftDME 5.0miICAO rules
MABA3AODALOVHFright279 (99)°6000ft - 11000ftDME 5.0miICAO rules
MABA4ARAMIMVHFright98 (278)°5500ft - 12000ft1.0min timed210
MAGA1AODALOVHFright279 (99)°6000ft - 11000ftDME 5.0miICAO rules
MAGA2AODALOVHFright279 (99)°6000ft - 11000ftDME 5.0miICAO rules
MAGA3AODALOVHFright279 (99)°6000ft - 11000ftDME 5.0miICAO rules
MOKI1AMAKNDBleft279 (99)°3200ft - 11000ft1.0min timed220
MOKI2AMAKNDBleft279 (99)°3200ft - 11000ft1.0min timed220
MOKI3AODALOVHFright279 (99)°6000ft - 11000ftDME 5.0miICAO rules
MOKI4ARAMIMVHFright98 (278)°5500ft - 12000ft1.0min timed210
OBOG1AMAKNDBleft279 (99)°3200ft - 11000ft1.0min timed220
OBOG2AMAKNDBleft279 (99)°3200ft - 11000ft1.0min timed220
OBOG3AODALOVHFright279 (99)°6000ft - 11000ftDME 5.0miICAO rules
OBOG4ARAMIMVHFright98 (278)°5500ft - 12000ft1.0min timed210
OBOG7AMAKNDBleft279 (99)°3200ft - 11000ft1.0min timed220
OBOG8AMAKNDBleft279 (99)°3200ft - 11000ft1.0min timed220
*) magnetic outbound (inbound) holding course
