Airports for X-Plane

Diass - Blaise Diagne Intl

Airport details

CountrySenegal
StateThies
RegionGO
AirspaceDakar Ctr
MunicipalityCommunauté rurale de Diass
Elevation290ft (88m)
TimezoneGMT +0
Coordinates14.68667, -17.07511
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeGOBD
IATA codeDSS
FAA coden/a

Communication

Blaise Diagne Intl ATIS126.200
Blaise Diagne Intl DIASS Ground Control121.800
Blaise Diagne Intl DIASS Tower118.800
Blaise Diagne Intl DIASS Approach120.500
Blaise Diagne Intl DIASS DepartureARTURE121.500

Approach frequencies

ILS-cat-IRW01110.118.00mi
3° GSRW01110.118.00mi

Runway info

Runway 01 / 19
 length3517m (11539ft)
 bearing359° / 179°
 width60m (197ft)
 surfaceasphalt
 blast zone123m (404ft) / 120m (394ft)

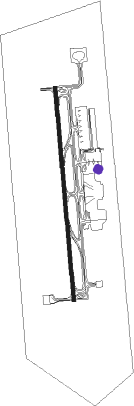

Airport layout - parking location 16


Taxiway locations

 01  19  A  A3  C  C1  C2  C3
 C4  C5  C6  C7  C8  G  H  M
 P
Parking locations

 1  10  11  12  13  14  15  16
 17  18  19  2  20  21  22  23
 24  25  26  27  3  4  5  6
 7  8  9  Cargo  GA  Helipad  Maintenance  VIP

Nearby beacons

codeidentifierdistbearingfrequency
DSDAKAR-DIASS VOR/DME2.5177°115.40
SDSDAKAR NDB23.7274°323

Departure and arrival routes

STAR starting pointsdistanceinbound heading
RW01
 BOMS1D68.952°
 KILG2D, KILG1D142.9109°
 AMRO1D, AMRO2D22.9140°
 LIMA2D, LIMA1V, LIMA1D124.7173°
 BIKI2D, BIKI1V, BIKI1D97.0190°
 SLO1V, SLO2D, SLO1D89.3204°
 ENUR1D119.6268°
 NURA1D96.6286°
 ERID1D144.5308°
RW19
 BOMS1K, BOMS1V68.952°
 KILG1K142.9109°
 AMRO1K22.9140°
 LIMA1K124.7173°
 BIKI1K97.0190°
 SLO1K89.3204°
 ENUR1K119.6268°
 NURA1K96.6286°
 ERID1V, ERID2K, ERID1K144.5308°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW01GATRO (15°)GATRO 3000ft
DEPAL (5mi, 90°) 3000ft
RW01LIPEK (344°)LIPEK 3000ft
DEPAL (5mi, 270°) 3000ft
 RNAVDEPAL 3000ft
BD501 (8mi, 359°) 3000ft
GOBD (10mi, 359°) 321ft
BD502 (3mi, 2°)
BD503 (12mi, 208°)
GATRO (11mi, 177°) 3000ft
RW19PIMLA (159°)PIMLA 3000ft
KOSOM (5mi, 90°) 3000ft
RW19RUSMO (201°)RUSMO 3000ft
KOSOM (5mi, 270°) 3000ft
 RNAVKOSOM 3000ft
BD504 (5mi, 179°) 3000ft
GOBD (9mi, 180°) 300ft
BD505 (11mi, 179°)
BD506 (6mi, 269°)
PIMLA (25mi, 3°) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AMRO1DAMRODVHFright332 (152)°3000ft - 14000ftDME 5.0mi230
AMRO1DDEPALVHFright187 (7)°3000ft - 9000ftDME 5.0mi230
AMRO1KAMRODVHFright332 (152)°3000ft - 14000ftDME 5.0mi230
AMRO1KKOSOMVHFright7 (187)°3000ft - 9000ftDME 5.0mi230
AMRO2DAMRODVHFright332 (152)°3000ft - 14000ftDME 5.0mi230
AMRO2DDEPALVHFright187 (7)°3000ft - 9000ftDME 5.0mi230
BIKI1DDEPALVHFright187 (7)°3000ft - 9000ftDME 5.0mi230
BIKI1KKOSOMVHFright7 (187)°3000ft - 9000ftDME 5.0mi230
BIKI2DDEPALVHFright187 (7)°3000ft - 9000ftDME 5.0mi230
BJ1DDEPALVHFright187 (7)°3000ft - 9000ftDME 5.0mi230
BJ1KKOSOMVHFright7 (187)°3000ft - 9000ftDME 5.0mi230
BJ2KKOSOMVHFright7 (187)°3000ft - 9000ftDME 5.0mi230
BOMS1DDEPALVHFright187 (7)°3000ft - 9000ftDME 5.0mi230
BOMS1KKOSOMVHFright7 (187)°3000ft - 9000ftDME 5.0mi230
ENUR1DDEPALVHFright187 (7)°3000ft - 9000ftDME 5.0mi230
ENUR1KKOSOMVHFright7 (187)°3000ft - 9000ftDME 5.0mi230
ERID1DDEPALVHFright187 (7)°3000ft - 9000ftDME 5.0mi230
ERID1KKOSOMVHFright7 (187)°3000ft - 9000ftDME 5.0mi230
ERID2KKOSOMVHFright7 (187)°3000ft - 9000ftDME 5.0mi230
KILG1DDEPALVHFright187 (7)°3000ft - 9000ftDME 5.0mi230
KILG1KKOSOMVHFright7 (187)°3000ft - 9000ftDME 5.0mi230
KILG2DDEPALVHFright187 (7)°3000ft - 9000ftDME 5.0mi230
LIMA1DDEPALVHFright187 (7)°3000ft - 9000ftDME 5.0mi230
LIMA1KKOSOMVHFright7 (187)°3000ft - 9000ftDME 5.0mi230
LIMA2DDEPALVHFright187 (7)°3000ft - 9000ftDME 5.0mi230
NURA1DDEPALVHFright187 (7)°3000ft - 9000ftDME 5.0mi230
NURA1KKOSOMVHFright7 (187)°3000ft - 9000ftDME 5.0mi230
SLO1DDEPALVHFright187 (7)°3000ft - 9000ftDME 5.0mi230
SLO1KKOSOMVHFright7 (187)°3000ft - 9000ftDME 5.0mi230
SLO2DDEPALVHFright187 (7)°3000ft - 9000ftDME 5.0mi230
*) magnetic outbound (inbound) holding course
