Airports for X-Plane

Luxor

Airport details

CountryEgypt
StateLuxor
RegionHE
AirspaceCairo Ctr
MunicipalityMonsha'et Al Amary
Elevation292ft (89m)
TimezoneGMT +2
Coordinates25.67083, 32.70639
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeHELX
IATA codeLXR
FAA coden/a

Communication

Luxor Ground Control121.900
Luxor Tower118.100
Luxor Tower119.900
Luxor RADAR124.300
Luxor RADAR118.100

Approach frequencies

ILS-cat-IRW02108.518.00mi
ILS-cat-IRW20111.118.00mi
3° GSRW02108.518.00mi
3° GSRW20111.118.00mi
Nearby Points of Interest:
Theban Necropolis
-
El-Khokha

Runway info

Runway 02 / 20
 length3009m (9872ft)
 bearing25° / 205°
 width45m (148ft)
 surfaceasphalt
 blast zone66m (217ft) / 66m (217ft)

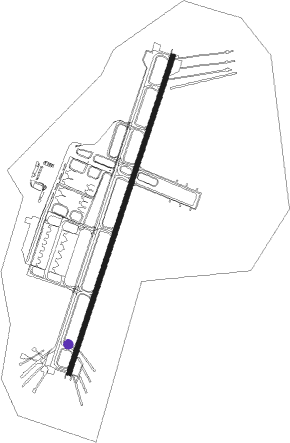

Airport layout - taxiway location C


Taxiway locations

 B  C  D  E  F  G  H  J
 K
Parking locations

 Ramp

Nearby beacons

codeidentifierdistbearingfrequency
LXRLUXOR VOR/DME5.738°114.40
SHGSUHAG VOR/DME67305°115.30

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW02LX600 (63°)LX600
LX603 (10mi, 111°) 3500ft
RW02LX601 (25°)LX601
LX603 (8mi, 25°) 3500ft
RW02LX602 (349°)LX602
LX603 (8mi, 291°) 3500ft
 RNAVLX603 3500ft
LX604 (5mi, 25°) 2500ft
HELX (8mi, 25°) 344ft
LX605 (6mi, 25°) 1600ft
LX606 (10mi, 291°) 3100ft
LX600 (19mi, 205°)
LX600 (turn)
RW20LX811 (159°)LX811
LX814 (10mi, 111°) 3000ft
RW20LX812 (205°)LX812 4500ft
LX814 (7mi, 205°) 3000ft
RW20LX813 (239°)LX813 4500ft
LX814 (7mi, 291°) 3000ft
 RNAVLX814 3000ft
LX815 (5mi, 205°) 2000ft
HELX (6mi, 205°) 322ft
LX816 (7mi, 205°) 1700ft
LX817 (10mi, 291°) 3200ft
LX811 (18mi, 25°)
LX811 (turn)
