Airports for X-Plane

Minneapolis - Anoka Co Blaine (janes Field)

Airport details

CountryUnited States of America
StateMinnesota
RegionK3
AirspaceMinneapolis Ctr
MunicipalityBlaine
Elevation912ft (278m)
TimezoneGMT -6
Coordinates45.14489, -93.21020
Magnetic var
Typeland
Available sinceX-Plane v10.32
ICAO codeKANE
IATA coden/a
FAA codeANE

Communication

Anoka Co Blaine (Janes Field) ATIS120.625
Anoka Co Blaine (Janes Field) CTAF126.050
Anoka Co Blaine (Janes Field) UNICOM122.950
Anoka Co Blaine (Janes Field) Clearance DEL121.300
Anoka Co Blaine (Janes Field) Ground Control121.850
Anoka Co Blaine (Janes Field) Tower126.050
Anoka Co Blaine (Janes Field) MINNEAPOLIS Approach/Departure126.500

Approach frequencies

ILS-cat-IRW27111.1518.00mi
3° GSRW27111.1518.00mi

Runway info

Runway 18 / 36
 length1482m (4862ft)
 bearing181° / 1°
 width30m (98ft)
 surfaceasphalt
Runway 9 / 27
 length1520m (4987ft)
 bearing91° / 271°
 width30m (98ft)
 surfaceasphalt

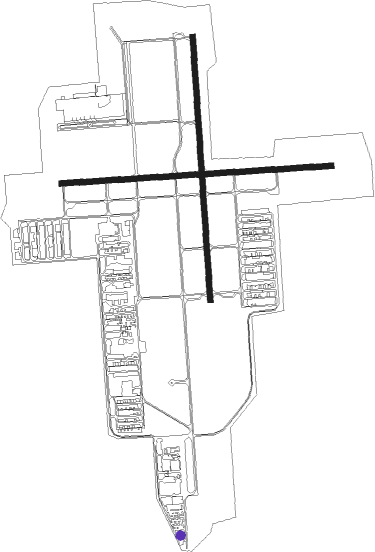

Airport layout - parking location South


Taxiway locations

 A  A1  A2  A3  A5  B  B1  B2
 B3  C  C1  C2  D  E  F
Parking locations

 Cirrus  East  Fueling  Key  Maintenance  Malibu  Museum  South
 SW  Twin  West

Nearby beacons

codeidentifierdistbearingfrequency
GEPGOPHER (MINNEAPOLIS) VORTAC6.9270°117.30
MSPMINNEAPOLIS VOR/DME14.9186°115.30
FCMFLYING CLOUD (MINNEAPOLIS VOR/DME21.5216°117.70
PNMPRINCETON NDB30.2317°368
FGTFARMINGTON VORTAC30.8177°115.70
ROSRUSH CITY NDB34.725°282
STHUSSK (ST CLOUD) NDB37.7294°342
RGREGUE (RED WING) NDB40.6134°274
STCSAINT CLOUD VOR/DME43.2295°112.10
RZNDME53.751°109.40
BXRBIG DOCTOR (SIREN) NDB53.951°203
FOWHALFWAY (MORRISTOWN) VOR/DME56.8190°111.20
MKTMANKATO VOR/DME63.1217°110.80

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW09
 COULT7176mi115°
 ZMBRO7105mi125°
 RST1159mi163°
 ORSKY2263mi212°
 SCHEP9287mi244°
 DWN8219mi273°
RW18
 COULT7176mi115°
 ZMBRO7105mi125°
 RST1159mi163°
 ORSKY2263mi212°
 SCHEP9287mi244°
 DWN8219mi273°
RW27
 COULT7176mi115°
 ZMBRO7105mi125°
 RST1159mi163°
 ORSKY2263mi212°
 SCHEP9287mi244°
 DWN8219mi273°
RW36
 COULT7176mi115°
 ZMBRO7105mi125°
 RST1159mi163°
 ORSKY2263mi212°
 SCHEP9287mi244°
 DWN8219mi273°

STAR starting pointsdistanceinbound heading
ALL
 ENCEE2100.376°
 GEP141.9141°
 AGUDE534.6271°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW09JONNA (57°)JONNA
HUFFR (22mi, 33°) 3000ft
RW09SODIE (109°)SODIE
HUFFR (21mi, 120°) 3000ft
 RNAVHUFFR 3000ft
CIRAP (6mi, 90°) 2700ft
KANE (6mi, 90°) 945ft
(5541mi, 116°) 1225ft
JUDAL (5525mi, 296°) 3100ft
JUDAL (turn)
RW18CINCI (236°)CINCI
RUNRR (16mi, 258°) 2600ft
RW18DOCKN (150°)DOCKN
RUNRR (12mi, 129°) 2600ft
RW18GEP (90°)GEP
RUNRR (12mi, 45°) 2600ft
RUNRR (turn) 2600ft
 RNAVRUNRR 2600ft
DOZXU (6mi, 181°) 2100ft
KANE (4mi, 181°) 962ft
(5541mi, 116°) 1312ft
RUNRR (5541mi, 296°) 2600ft
RUNRR (turn)
RW27BLAYN (242°)BLAYN
JUDAL (11mi, 163°) 3100ft
RW27STILS (271°)STILS
JUDAL (8mi, 272°) 3100ft
 RNAVJUDAL 3100ft
BOKYA (11mi, 271°) 2600ft
KOGGE (2mi, 271°) 1780ft
KANE (3mi, 271°) 958ft
(5541mi, 116°) 1160ft
OCIBA (5543mi, 296°)
GEP (5mi, 270°) 2700ft
GEP (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AGUDE5BEERIVHFright127 (307)°1.0min timedICAO rules
ENCEE2WOOODVHFleft251 (71)°< 17999ftDME 10.0miICAO rules
GEP1GOLLFVHFleft333 (153)°< 17999ft1.0min timedICAO rules
TWOLF3TWOLFVHFleft178 (358)°< 17999ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
