Airports for X-Plane

Atlanta - Atlanta Hartsfield Jackson

Airport details

CountryUnited States of America
StateGeorgia
RegionK7
AirspaceAtlanta Ctr
MunicipalityAtlanta
Elevation1020ft (311m)
TimezoneGMT -5
Coordinates33.65154, -84.42573
Magnetic var
Typeland
Available sinceX-Plane v10.32
ICAO codeKATL
IATA codeATL
FAA codeATL

Communication

Atlanta Hartsfield Jackson Atlanta Departure ATIS125.550
Atlanta Hartsfield Jackson Atlanta Arrival ATIS119.650
Atlanta Hartsfield Jackson Atlanta Unicom122.950
Atlanta Hartsfield Jackson Atlanta Delivery118.100
Atlanta Hartsfield Jackson Atlanta Ground South121.750
Atlanta Hartsfield Jackson Atlanta Ground 10/28121.650
Atlanta Hartsfield Jackson Atlanta Ground North121.900
Atlanta Hartsfield Jackson Atlanta Tower 09R/27L119.300
Atlanta Hartsfield Jackson Atlanta Tower 09L/27R123.850
Atlanta Hartsfield Jackson Atlanta Tower 08L/26R119.100
Atlanta Hartsfield Jackson Atlanta Tower 10/28119.500
Atlanta Hartsfield Jackson Atlanta Tower 08R/26L125.325
Atlanta Hartsfield Jackson ATLANTA Approach128.525
Atlanta Hartsfield Jackson ATLANTA Approach128.575
Atlanta Hartsfield Jackson ATLANTA Approach128.000
Atlanta Hartsfield Jackson ATLANTA Approach127.900
Atlanta Hartsfield Jackson ATLANTA Approach119.800
Atlanta Hartsfield Jackson ATLANTA Departure 08L/R 26L/R125.700
Atlanta Hartsfield Jackson ATLANTA Departure 10/28135.375
Atlanta Hartsfield Jackson ATLANTA Departure 09L/R 27L/R125.650
Atlanta Hartsfield Jackson ATLANTA Departure128.000

Approach frequencies

ILS-cat-IIIRW10111.5518.00mi
ILS-cat-IIIRW09R108.918.00mi
ILS-cat-IIIRW08L109.318.00mi
ILS-cat-IIRW26R110.118.00mi
ILS-cat-IIRW28111.7518.00mi
ILS-cat-IIRW27L108.518.00mi
ILS-cat-IRW27R111.318.00mi
ILS-cat-IRW08R109.918.00mi
ILS-cat-IRW26L108.718.00mi
ILS-cat-IRW09L110.518.00mi
3° GSRW09R108.918.00mi
3° GSRW26R110.118.00mi
3° GSRW27R111.318.00mi
3° GSRW10111.5518.00mi
3° GSRW08R109.918.00mi
3° GSRW09L110.518.00mi
3° GSRW26L108.718.00mi
3° GSRW27L108.518.00mi
3° GSRW08L109.318.00mi
3° GSRW28111.7518.00mi
Nearby Points of Interest:
Jeremiah S. Gilbert House
-
Utoy Cemetery
-
West End Historic District
-
Western and Atlantic 12 “Texas”
-
Atlanta Cyclorama & Civil War Museum
-
Burns Cottage
-
Southern Belting Company Building
-
Atlanta City Hall
-
Georgia State Capitol
-
Fulton County Courthouse
-
Hotel Row Historic District
-
Fountain Hall
-
J. Mack Robinson College of Business Administration Building
-
Grady Memorial Hospital
-
Dixie Coca-Cola Bottling Company Plant
-
Elbert P. Tuttle United States Court of Appeals Building
-
Glenn Building
-
Flatiron Building
-
Southern Bell Telephone Company Building
-
Candler Building
-
Rhodes-Haverty Building
-
Hurt Building
-
Herndon Building
-
Loew's Grand Theatre
-
Odd Fellows Building and Auditorium

Runway info

Runway 8L / 26R
 length2741m (8993ft)
 bearing90° / 270°
 width46m (151ft)
 surfaceconcrete
Runway 8R / 26L
 length3044m (9987ft)
 bearing90° / 270°
 width46m (151ft)
 surfaceconcrete
Runway 9L / 27R
 length3770m (12369ft)
 bearing90° / 270°
 width45m (148ft)
 surfaceconcrete
 displ threshold0m (0ft) / 152m (499ft)
Runway 9R / 27L
 length2739m (8986ft)
 bearing90° / 270°
 width46m (151ft)
 surfaceconcrete
Runway 10 / 28
 length2740m (8990ft)
 bearing90° / 270°
 width46m (151ft)
 surfaceconcrete
 blast zone120m (394ft) / 120m (394ft)

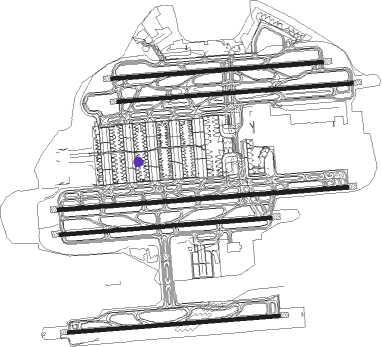

Airport layout - parking location B14


Taxiway locations

 A  B  E  F3  F5  L  L1  LA
 LB  LC  LT  M  N  P  R  SC
 SG  SJ  T  T1  T13  T13A  T14  T15
 T16  T16A  T17  T17A  T1A  T2  T2A  T3
 T4  T5  T6  T7  T8  V
Parking locations

 A1  A10  A11  A12  A15  A16  A17  A18
 A19  A2  A20  A21  A24  A25  A26  A27
 A28  A29  A3  A30  A31  A32  A33  A34
 A4  A5  A6  A7  A9  B1  B10  B11
 B12  B13  B14  B16  B17  B18  B19  B2
 B20  B21  B22  B23  B24  B25  B26  B27
 B28  B29  B3  B31  B32  B33  B34  B36
 B4  B5  B6  B7  B9  C1  C10  C12
 C13  C14  C15  C16  C17  C2  C20  C21
 C22  C3  C30  C32  C33  C35  C36  C37
 C4  C40  C41  C42  C43  C46  C47  C5
 C50  C51  C52  C55  C7  C8  C9  D1
 D10  D11  D11A  D12  D13  D14  D15  D16
 D1A  D1B  D2  D21  D23  D23A  D24  D25
 D26  D27  D28  D29  D3  D30  D31  D32
 D33  D34  D35  D38  D39  D4  D40  D41
 D42  D44  D46  D5  D6  D7  D8  D8A
 D9  Delta  DHL  E1  E10  E11  E12  E14
 E15  E15A  E16  E16A  E17  E17A  E18  E18A
 E2  E26  E27  E27A  E28  E29  E3  E30
 E30A  E31  E32  E32A  E33  E34  E35  E36
 E36A  E3A  E4  E4A  E5  E6  E7  E8
 E8A  E9  F1  F10  F12  F14  F2  F3
 F4  F5  F6  F7  F8  F9  FedEx  Landmark
 North  NWA  South  T1  T10  T11  T12  T13
 T13A  T14  T15  T16  T16A  T17  T17A  T1A
 T2  T2A  T3  T4  T5  T6  T7  T8
 T9

Nearby beacons

codeidentifierdistbearingfrequency
ATLATLANTA VORTAC1.4203°116.90
ATCATTA (ATLANTA) NDB5.8268°375
PDKPEACHTREE (ATLANTA) VOR/DME14.830°116.60
DOBDOBBINS (MARIETTA) TACAN16.3343°113
FFCPECAT (ATLANTA) NDB21.2190°316
EQQCOWETA COUNTY (NEWNAN) NDB27.7216°234
VOFALCOVY (COVINGTON) NDB32.292°370
GPQCARROLLTON NDB35.6263°278
TXGWNET (LAWRENCEVILLE) NDB35.757°419
DJDCHERO NDB36.2354°415
FKVFLOWERY BRANCH (GAINESVILLE) NDB4243°365
BMWBARROW COUNTY (WINDER) NDB4571°404
OPYATES (THOMASTON) NDB45.5162°339
RMGROME VORTAC46.2306°115.40
LGCLA GRANGE VORTAC53.3232°115.60
MCNMACON VORTAC69.7141°114.20

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW08 (ALL)
 VRSTY270mi141°
 SMLTZ281mi158°
 BANNG281mi179°
 HAALO282mi186°
RW08L
 PADGT2137mi11°
 SMKEY2132mi15°
 PLMMR2149mi61°
 JACCC2124mi69°
 PHIIL3119mi75°
 GAIRY2113mi89°
 WIGLE281mi158°
 POUNC2181mi255°
 KAJIN2155mi260°
 NASSA2153mi273°
 CUTTN262mi279°
 PENCL294mi336°
 VARNM2119mi346°
 ATL122mi357°
RW08R
 PADGT2137mi11°
 SMKEY2132mi15°
 PLMMR2149mi61°
 JACCC2124mi69°
 PHIIL3119mi75°
 GAIRY2113mi89°
 WIGLE281mi158°
 POUNC2181mi255°
 KAJIN2155mi260°
 NASSA2153mi273°
 CUTTN262mi279°
 PENCL294mi336°
 VARNM2119mi346°
 ATL122mi357°
RW09 (ALL)
 PADGT2137mi11°
 SMKEY2132mi15°
 PLMMR2149mi61°
 JACCC2124mi69°
 PHIIL3119mi75°
 GAIRY2113mi89°
 WIGLE281mi158°
 PENCL294mi336°
 VARNM2119mi346°
RW09L
 VRSTY270mi141°
 SMLTZ281mi158°
 BANNG281mi179°
 HAALO282mi186°
 POUNC2181mi255°
 KAJIN2155mi260°
 NASSA2153mi273°
 CUTTN262mi279°
 ATL122mi357°
RW09R
 VRSTY270mi141°
 SMLTZ281mi158°
 BANNG281mi179°
 HAALO282mi186°
 POUNC2181mi255°
 KAJIN2155mi260°
 NASSA2153mi273°
 CUTTN262mi279°
 ATL122mi357°
RW10
 PADGT2137mi11°
 SMKEY2132mi15°
 PLMMR2149mi61°
 JACCC2124mi69°
 PHIIL3119mi75°
 GAIRY2113mi89°
 VRSTY270mi141°
 SMLTZ281mi158°
 BANNG281mi179°
 HAALO282mi186°
 POUNC2181mi255°
 KAJIN2155mi260°
 NASSA2153mi273°
 CUTTN262mi279°
 PENCL294mi336°
 VARNM2119mi346°
 ATL122mi357°
RW26 (ALL)
 ATL122mi357°
RW26L
 PADGT2137mi11°
 SMKEY2132mi15°
 PLMMR2149mi61°
 JACCC2124mi69°
 PHIIL3119mi75°
 GAIRY2113mi89°
 VRSTY270mi141°
 SMLTZ281mi158°
 BANNG281mi179°
 HAALO282mi186°
 POUNC2181mi255°
 KAJIN2155mi260°
 NASSA2153mi273°
 CUTTN262mi279°
 PENCL294mi336°
 VARNM2119mi346°
RW26R
 PADGT2137mi11°
 SMKEY2132mi15°
 PLMMR2149mi61°
 JACCC2124mi69°
 PHIIL3119mi75°
 GAIRY2113mi89°
 VRSTY270mi141°
 SMLTZ281mi158°
 BANNG281mi179°
 HAALO282mi186°
 POUNC2181mi255°
 KAJIN2155mi260°
 NASSA2153mi273°
 CUTTN262mi279°
 PENCL294mi336°
 VARNM2119mi346°
RW27 (ALL)
 PADGT2137mi11°
 SMKEY2132mi15°
 VRSTY270mi141°
 SMLTZ281mi158°
 BANNG281mi179°
 HAALO282mi186°
 POUNC2181mi255°
 KAJIN2155mi260°
 NASSA2153mi273°
 CUTTN262mi279°
 PENCL294mi336°
 VARNM2119mi346°
 ATL122mi357°
RW27L
 PLMMR2149mi61°
 JACCC2124mi69°
 PHIIL3119mi75°
 GAIRY2113mi89°
RW27R
 ZELAN4137mi11°
 PLMMR2149mi61°
 JACCC2124mi69°
 PHIIL3119mi75°
 GAIRY2113mi89°
RW28
 PADGT2137mi11°
 SMKEY2132mi15°
 PLMMR2149mi61°
 JACCC2124mi69°
 PHIIL3119mi75°
 GAIRY2113mi89°
 VRSTY270mi141°
 SMLTZ281mi158°
 BANNG281mi179°
 HAALO282mi186°
 POUNC2181mi255°
 KAJIN2155mi260°
 NASSA2153mi273°
 CUTTN262mi279°
 PENCL294mi336°
 VARNM2119mi346°
 ATL122mi357°
YAALL
 NASSA2153mi273°

STAR starting pointsdistanceinbound heading
ALL
 GNDLF245.550°
 LGC553.352°
 RMG646.2126°
 WHINZ484.1227°
RW08 (ALL)
 CHPPR130.1131°
 ONDRE126.6223°
 OZZZI129.8235°
 SITTH227.9307°
RW08L
 GLAVN129.4119°
RW08R
 GLAVN129.4119°
RW09 (ALL)
 ONDRE126.6223°
 OZZZI129.8235°
 SITTH227.9307°
RW09L
 GLAVN129.4119°
 CHPPR130.1131°
RW09R
 GLAVN129.4119°
 CHPPR130.1131°
RW10
 GLAVN129.4119°
 CHPPR130.1131°
 ONDRE126.6223°
 OZZZI129.8235°
 SITTH227.9307°
RW26 (ALL)
 HOBTT228.751°
 GLAVN129.4119°
 CHPPR130.1131°
 ONDRE126.6223°
 JJEDI222.8296°
RW26L
 OZZZI129.8235°
RW26R
 OZZZI129.8235°
RW27 (ALL)
 HOBTT228.751°
 GLAVN129.4119°
 CHPPR130.1131°
 JJEDI222.8296°
RW27L
 ONDRE126.6223°
 OZZZI129.8235°
RW27R
 ONDRE126.6223°
 OZZZI129.8235°
RW28
 HOBTT228.751°
 GLAVN129.4119°
 CHPPR130.1131°
 ONDRE126.6223°
 OZZZI129.8235°
 JJEDI222.8296°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW08LYLARII (90°)LARII 5000ft
JAAJJ (7mi, 90°) 5000ft
 RNAVJAAJJ 5000ft
BAZAR (3mi, 90°) 4000ft
SCHEL (4mi, 90°) 2900ft
KATL (6mi, 89°) 1065ft
(5127mi, 112°) 1500ft
TROYS (5128mi, 292°) 3500ft
TROYS (turn)
RW08LZBOLND (132°)BOLND 8000ft
EEERR (6mi, 270°) 6000ft
BAZAR (5mi, 180°) 4000ft
RW08LZJAAJJ (90°)JAAJJ 5000ft
BAZAR (3mi, 90°) 4000ft
 RNAVBAZAR 4000ft
SCHEL (4mi, 90°) 2900ft
KATL (6mi, 89°) 1065ft
(5127mi, 112°) 1500ft
TROYS (5128mi, 292°) 3500ft
TROYS (turn)
RW08RGPEAT (89°)GPEAT 5000ft
PEARI (7mi, 90°) 5000ft
 RNAVPEARI 5000ft
NZBIT (3mi, 90°) 4000ft
HARSN (5mi, 90°) 2800ft
KATL (6mi, 88°) 1077ft
(5127mi, 112°) 1500ft
TROYS (5128mi, 292°) 3500ft
TROYS (turn)
RW09LRYENN (88°)RYENN 7000ft
AAKAY (3mi, 90°) 6000ft
ARRBE (4mi, 90°) 5000ft
 RNAVARRBE 5000ft
HRDEY (3mi, 90°) 4000ft
VINII (5mi, 90°) 2700ft
KATL (6mi, 82°) 1075ft
(5127mi, 112°) 1359ft
LEADR (5122mi, 292°)
CONNI (26mi, 88°) 4000ft
CONNI (turn)
RW09RANDIY (87°)ANDIY 7000ft
DFINS (3mi, 90°) 6000ft
GGUYY (4mi, 90°) 5000ft
 RNAVGGUYY 5000ft
EEASY (3mi, 90°) 4000ft
BURNY (5mi, 90°) 2700ft
KATL (6mi, 81°) 1082ft
(5127mi, 112°) 1226ft
RATCH (5122mi, 292°)
CONNI (26mi, 87°) 4000ft
CONNI (turn)
RW10-YDEWHY (85°)DEWHY 4000ft
CTEEE (7mi, 90°) 4000ft
RW10-YYINNZ (72°)YINNZ
DEWHY (10mi, 44°) 4000ft
CTEEE (7mi, 90°) 4000ft
 RNAVCTEEE 4000ft
ZMANN (5mi, 90°) 2700ft
KATL (7mi, 76°) 1055ft
(5127mi, 112°) 1500ft
SCARR (5126mi, 292°) 3000ft
SCARR (turn)
RW10-ZGAAIN (84°)GAAIN
CTEEE (3mi, 90°) 4000ft
RW10-ZROBNS (41°)ROBNS 8000ft
ELRAY (6mi, 270°) 6000ft
CTEEE (5mi, 360°) 4000ft
 RNAVCTEEE 4000ft
ZMANN (5mi, 90°) 2700ft
KATL (7mi, 76°) 1055ft
(5127mi, 112°) 1500ft
SCARR (5126mi, 292°) 3000ft
SCARR (turn)
RW26LJIRRI (271°)JIRRI 5000ft
BOYKN (6mi, 270°) 5000ft
 RNAVBOYKN 5000ft
MARKD (3mi, 270°) 4000ft
DEJAA (5mi, 270°) 2600ft
KATL (6mi, 272°) 1047ft
(5127mi, 112°) 1500ft
TROYS (5128mi, 292°) 3500ft
TROYS (turn)
RW26RYZELOW (270°)ZELOW 5000ft
HAINZ (6mi, 270°) 5000ft
 RNAVHAINZ 5000ft
BAMBU (4mi, 270°) 4000ft
AJAAY (5mi, 270°) 2700ft
KATL (6mi, 271°) 1045ft
(5127mi, 112°) 1500ft
TROYS (5128mi, 292°) 3500ft
TROYS (turn)
RW26RZBROOX (229°)BROOX 8000ft
OLEGG (6mi, 90°) 6000ft
BAMBU (5mi, 180°) 4000ft
RW26RZHAINZ (270°)HAINZ 5000ft
BAMBU (4mi, 270°) 4000ft
 RNAVBAMBU 4000ft
AJAAY (5mi, 270°) 2700ft
KATL (6mi, 271°) 1045ft
(5127mi, 112°) 1500ft
TROYS (5128mi, 292°) 3500ft
TROYS (turn)
RW27LSLVAA (273°)SLVAA 7000ft
ROMMM (3mi, 270°) 6000ft
SEJAY (3mi, 270°) 5000ft
 RNAVSEJAY 5000ft
GRMPI (4mi, 270°) 4000ft
DEPOT (5mi, 270°) 2800ft
KATL (6mi, 280°) 1043ft
(5127mi, 112°) 1199ft
CALUP (5133mi, 292°)
TEMPO (25mi, 268°) 4000ft
TEMPO (turn)
RW27RYOUYU (272°)YOUYU 7000ft
MMCAP (3mi, 270°) 6000ft
MAASN (3mi, 270°) 5000ft
 RNAVMAASN 5000ft
MRCER (4mi, 270°) 4000ft
OSTRR (5mi, 270°) 2700ft
KATL (6mi, 278°) 1034ft
(5127mi, 112°) 1185ft
ROTLE (5132mi, 292°)
TEMPO (25mi, 267°) 4000ft
TEMPO (turn)
RW28-YPRMAN (275°)PRMAN 4000ft
WONZR (8mi, 270°) 4000ft
RW28-YTERII (290°)TERII
PRMAN (10mi, 323°) 4000ft
WONZR (8mi, 270°) 4000ft
 RNAVWONZR 4000ft
JUBBA (5mi, 270°) 2700ft
KATL (6mi, 286°) 1055ft
(5127mi, 112°) 1500ft
SCARR (5126mi, 292°) 3000ft
SCARR (turn)
RW28-ZJAYAA (276°)JAYAA
WONZR (4mi, 270°) 4000ft
RW28-ZRODNN (323°)RODNN 8000ft
JAYQQ (6mi, 90°) 6000ft
WONZR (5mi, 0°) 4000ft
 RNAVWONZR 4000ft
JUBBA (5mi, 270°) 2700ft
KATL (6mi, 286°) 1055ft
(5127mi, 112°) 1500ft
SCARR (5126mi, 292°) 3000ft
SCARR (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
CHPPR1BBABEVHFright327 (147)°DME 15.0miICAO rules
GLAVN1JKSONVHFleft292 (112)°DME 15.0miICAO rules
GNDLF2FRDDOVHFright240 (60)°DME 15.0miICAO rules
GNDLF2GIMLYVHFright163 (343)°DME 15.0miICAO rules
GNDLF2MORDRVHFright263 (83)°DME 15.0miICAO rules
GNDLF2SMAWGVHFright241 (61)°DME 15.0miICAO rules
HOBTT2FRDDOVHFright240 (60)°DME 15.0miICAO rules
HOBTT2GIMLYVHFright163 (343)°DME 15.0miICAO rules
HOBTT2MORDRVHFright263 (83)°DME 15.0miICAO rules
HOBTT2SMAWGVHFright241 (61)°DME 15.0miICAO rules
JJEDI2DTSTRVHFright144 (324)°DME 15.0miICAO rules
JJEDI2LAYUHVHFleft87 (267)°DME 15.0miICAO rules
JJEDI2NEWHPVHFright144 (324)°DME 15.0miICAO rules
JJEDI2XWNNGVHFright99 (279)°DME 15.0miICAO rules
LGC5CLEAVVHFright163 (343)°< 17999ft1.0min timedICAO rules
LGC5LGCNDBright228 (48)°1.0min timedICAO rules
LGC5MOBEEVHFright257 (77)°< 17999ft1.0min timedICAO rules
LGC5TIMMYVHFright228 (48)°< 17999ft1.0min timedICAO rules
ONDRE1ADEINVHFleft31 (211)°DME 15.0miICAO rules
ONDRE1KNOWWVHFright30 (210)°DME 15.0miICAO rules
ONDRE1THERZVHFright12 (192)°DME 15.0miICAO rules
ONDRE1WEALLVHFright30 (210)°DME 15.0miICAO rules
OZZZI1SCHULVHFright49 (229)°DME 15.0miICAO rules
OZZZI1TEDGEVHFright49 (229)°DME 15.0miICAO rules
OZZZI1WINNGVHFright47 (227)°DME 15.0miICAO rules
OZZZI1WLLSNVHFright49 (229)°DME 15.0miICAO rules
OZZZI1YEOLDVHFright50 (230)°DME 15.0miICAO rules
RMG6CALCOVHFleft283 (103)°18000ft - 45000ft1.5min timedICAO rules
RMG6DEVACVHFleft283 (103)°< 17999ftDME 15.0miICAO rules
RMG6DRAKKVHFright328 (148)°DME 15.0miICAO rules
RMG6NEUTOVHFright326 (146)°< 17999ftDME 8.0miICAO rules
RMG6RMGNDBright313 (133)°< 17999ftDME 15.0miICAO rules
SITTH2AATATVHFright99 (279)°DME 15.0miICAO rules
SITTH2FORCCVHFright144 (324)°DME 15.0miICAO rules
SITTH2LAYUHVHFleft87 (267)°DME 15.0miICAO rules
SITTH2NEWHPVHFright144 (324)°DME 15.0miICAO rules
WHINZ4AVERYVHFright45 (225)°DME 15.0miICAO rules
WHINZ4BEBADVHFright45 (225)°DME 15.0miICAO rules
WHINZ4ODFNDBleft45 (225)°DME 15.0miICAO rules
WHINZ4WHINZVHFright37 (217)°DME 15.0miICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
