Airports for X-Plane offers a convenient way to explore airports and their related communication information for the X-Plane flight simulator. It only uses data from the X-Plane flight simulator itself, and is therefore more reliable than the data that comes from real aviation websites. You can search for airports by using the ICAO code, or browse for airports per country and state. The information displayed is categorized by airport details, runway information, airport communication, approach frequencies (ILS and Glidepath details), details of nearby beacons, SIDs, STARs and approach procedures.

airbus public transport aviation stolport airport terminal airline flights air traffic control government tarmac local government airspeed downtown train station grass runway lighting buildings heliport ferry international

Airports for X-Plane

Denver - Rocky Mountain Metro

Airport details

CountryUnited States of America
StateColorado
RegionK2
AirspaceDenver Ctr
MunicipalityJefferson County
Elevation5667ft (1727m)
TimezoneGMT -7
Coordinates39.90881, -105.11720
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKBJC
IATA codeBJC
FAA codeBJC

Communication

Rocky Mountain Metro ATIS126.250
Rocky Mountain Metro CLEARANCE DELIVERY132.600
Rocky Mountain Metro Ground Control121.700
Rocky Mountain Metro Tower118.600
Rocky Mountain Metro DENVER Approach/Departure126.100

Approach frequencies

ILS-cat-IRW30R111.718.00mi
3° GSRW30R111.718.00mi
Nearby Points of Interest:
Rocky Flats Plant
-
William J. Gregory House
-
Bowles House
-
Harris Park School
-
Arvada Downtown
-
Arvada Flour Mill
-
Pioneer Sod House
-
Boulder Valley Grange No. 131
-
Thede Farmhouse
-
Tower of Memories
-
Boulder County Poor Farm
-
Highlands Masonic Lodge
-
McKenzie Well
-
St. Dominic's Church
-
All Saints Episcopal Church
-
Carnegie Library
-
Barnes–Peery House
-
Golden High School
-
Ammunition Igloo
-
Walker Ranch
-
Loveland Block and Coors Building
-
Frederick W. Neef House
-
Quaintance Block
-
Colorado National Guard Armory
-
First Presbyterian Church of Golden and Unger House

Runway info

Runway 12L / 30R
 length2740m (8990ft)
 bearing118° / 298°
 width30m (100ft)
 surfaceasphalt
 blast zone61m (200ft) / 61m (200ft)
Runway 12R / 30L
 length2132m (6995ft)
 bearing118° / 298°
 width23m (75ft)
 surfaceasphalt
 blast zone0m (0ft) / 46m (151ft)
Runway 3 / 21
 length1098m (3602ft)
 bearing42° / 222°
 width23m (75ft)
 surfaceasphalt

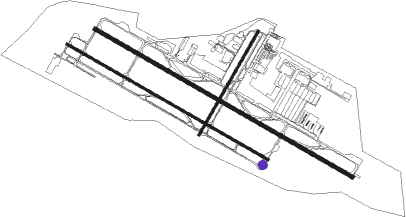

Airport layout - taxiway location D1


Taxiway locations

 A  A1  A2  A3  A4  A5  A6  A7
 B  B2  B3  D  D1  D2  D3  D4
 D5  D6  D7  E  G  H  J  R1
 R2  R3  R4  R5  R6
Parking locations

 Colorado  East  McAir  NCAR  New  Pilatus  Rocky  Signature
 Terminal  Western

Nearby beacons

codeidentifierdistbearingfrequency
BJCJEFFCO (DENVER) VOR/DME1281°115.40
BKFBUCKLEY (AURORA) TACAN20.7119°109.60
DENDENVER VOR/DME21.8102°117.90
DVVMILE HIGH (DENVER) VORTAC22.792°114.70
FQFFALCON (DENVER) VORTAC26.3114°116.30
FNCOLLN (FT COLLINS-LOVELAND) NDB2818°400
GLLGILL VOR/DME44.143°114.20
BRKBLACK FOREST VOR/DME62.1153°112.50

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
ALL
 YELLO4262mi27°
 PLAIN1152mi104°
 ROCKI561mi274°
RW12 (ALL)
 ECHOO1173mi87°
 SKYEE1175mi149°
 WNGSS175mi257°
 MRSHH294mi351°
RW30 (ALL)
 ECHOO1173mi87°
 SKYEE1175mi149°
 WNGSS175mi257°
 MRSHH294mi351°

STAR starting pointsdistanceinbound heading
ALL
 LARKS240.016°
 POWDR135.135°
 TOMSN830.6144°
 RAMMS835.5168°
 PINNR345.0172°
 BRNKO262.6236°
 LANDR257.8248°
 DANDD162.5293°
 QUAIL160.1303°
 DUNNN482.9312°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW12LDRROP (169°)DRROP
NTOOO (4mi, 197°) 8100ft
HALFF (4mi, 197°) 7100ft
RW12LPYDRT (200°)PYDRT 9000ft
OTHER (7mi, 234°) 8100ft
HALFF (4mi, 234°) 7100ft
 RNAVHALFF 7100ft
PYYPP (4mi, 159°) 6700ft
DUUUD (2mi, 137°) 5966ft
(6099mi, 111°) 6200ft
NSPYR (6092mi, 291°) 8400ft
NSPYR (turn)
RW30LNSPYR (312°)NSPYR
BLIPS (4mi, 351°) 7000ft
RW30LROKXX (243°)ROKXX
PLAAY (7mi, 130°) 7000ft
LAWNG (4mi, 204°) 7000ft
BLIPS (3mi, 261°) 7000ft
 RNAVBLIPS 7000ft
HESDA (4mi, 298°) 7000ft
KBJC (5mi, 299°) 5636ft
(6098mi, 111°) 6300ft
HYGEN (6099mi, 291°) 10300ft
HYGEN (turn)
RW30RNSPYR (312°)NSPYR
BAAWL (4mi, 0°) 7000ft
RW30RROKXX (243°)ROKXX
PLAAY (7mi, 130°) 7000ft
LAWNG (4mi, 204°) 7000ft
BAAWL (3mi, 257°) 7000ft
 RNAVBAAWL 7000ft
ALIKE (4mi, 298°) 7000ft
VOGFA (2mi, 298°) 6220ft
KBJC (3mi, 297°) 5618ft
(6098mi, 111°) 6300ft
HYGEN (6099mi, 291°) 10300ft
HYGEN (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DANDD1DANDDVHFleft125 (305)°1.0min timedICAO rules
DANDD1KIPPYVHFright125 (305)°1.0min timedICAO rules
DANDD1OATHEVHFright81 (261)°1.5min timedICAO rules
DANDD1PRAGGVHFright125 (305)°1.0min timedICAO rules
LANDR2BFFNDBright65 (245)°1.5min timedICAO rules
LANDR2LANDRVHFleft38 (218)°1.0min timedICAO rules
LANDR2LIBIEVHFleft34 (214)°1.0min timedICAO rules
LANDR2SNYNDBleft74 (254)°1.0min timedICAO rules
LARKS2HBUNDBleft211 (31)°1.0min timedICAO rules
LARKS2HICKYVHFleft220 (40)°1.0min timedICAO rules
LARKS2LARKSVHFleft220 (40)°1.0min timedICAO rules
LARKS2MURFEVHFleft220 (40)°1.0min timedICAO rules
LARKS2TERROVHFright220 (40)°1.0min timedICAO rules
POWDR1GRIPPVHFright218 (38)°1.0min timedICAO rules
POWDR1HBUNDBleft211 (31)°1.0min timedICAO rules
POWDR1SKEEDVHFright225 (45)°1.0min timedICAO rules
QUAIL1CONALVHFright132 (312)°1.0min timedICAO rules
QUAIL1HGONDBleft132 (312)°1.0min timedICAO rules
QUAIL1HYMNSVHFleft123 (303)°1.0min timedICAO rules
QUAIL1QUAILVHFright127 (307)°1.0min timedICAO rules
RAMMS8ALPOEVHFright276 (96)°1.0min timedICAO rules
RAMMS8AUTIMVHFright276 (96)°1.0min timedICAO rules
RAMMS8RAMMSVHFright314 (134)°1.0min timedICAO rules
TOMSN8CHENDBright288 (108)°1.0min timedICAO rules
TOMSN8FROGSVHFright258 (78)°< 17999ft1.0min timedICAO rules
TOMSN8GOULLVHFright256 (76)°DME 10.0miICAO rules
TOMSN8TOMSNVHFright306 (126)°< 17999ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
