Airports for X-Plane

Cleveland - Cuyahoga Co

Airport details

CountryUnited States of America
StateOhio
RegionK5
AirspaceCleveland Ctr
MunicipalityHighland Heights
Elevation876ft (267m)
TimezoneGMT -5
Coordinates41.56511, -81.48636
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKCGF
IATA codeCGF
FAA codeCGF

Communication

CUYAHOGA CO CTAF118.500
CUYAHOGA CO UNICOM122.950
CUYAHOGA CO Ground Control/Clearance DEL121.850
CUYAHOGA CO COUNTY Tower118.500
CUYAHOGA CO CLEVELAND Approach/Departure125.350

Approach frequencies

ILS-cat-IRW24111.118.00mi
3° GSRW24111.118.00mi

Runway info

Runway 6 / 24
 length1554m (5098ft)
 bearing57° / 237°
 width30m (98ft)
 surfaceasphalt

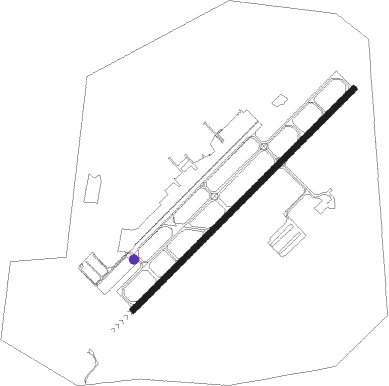

Airport layout - taxiway location B4


Taxiway locations

 A  A1  A2  A3  A4  A5  B4  U
 W
Parking locations

 East  Jet  Main  South  SouthParking

Nearby beacons

codeidentifierdistbearingfrequency
BFTABEY (CLEVELAND) NDB3.9273°248
LQLLAKELAND (WILLOUGHBY) NDB8.542°263
CXRCHARDON VOR/DME14.898°112.70
AKAKRON NDB30169°362
ACOAKRON VOR/DME30.3148°114.40
DJBDRYER VOR/DME32.8253°113.60
JFNJEFFERSON VOR/DME35.175°115.20
YNGYOUNGSTOWN VORTAC39.1106°109
YNFETCH (YOUNGSTOWN/WARREN) NDB45.7112°338
BSVBRIGGS VOR/DME49.5176°112.40
MFMANNS (MANSFIELD) NDB64.6230°372

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW06
 MYCAR438mi62°
 AHMET497mi156°
 CAVVS499mi218°
 ZAAPA5231mi250°
 GTLKE4190mi268°
RW24
 MYCAR438mi62°
 AHMET497mi156°
 CAVVS499mi218°
 ZAAPA5231mi250°
 GTLKE4190mi268°

STAR starting pointsdistanceinbound heading
ALL
 ROLLN242.621°
 ROKNN359.658°
 BRWNZ436.8112°
 TRYBE419.4277°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW24WEIDS (247°)WEIDS
EBLIS (7mi, 264°) 3000ft
 RNAVEBLIS 3000ft
IMUSY (4mi, 237°) 3000ft
KROOK (4mi, 237°) 2300ft
KCGF (5mi, 237°) 917ft
(5023mi, 117°) 2500ft
ZUPKO (5020mi, 297°) 3000ft
ZUPKO (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BRWNZ4BRWNZVHFleft293 (113)°DME 10.0miICAO rules
BRWNZ4DETMRVHFleft282 (102)°DME 10.0miICAO rules
BRWNZ4FRYYEVHFleft284 (104)°DME 10.0miICAO rules
ROKNN3ROKNNVHFright232 (52)°DME 10.0miICAO rules
ROLLN2ROLLNVHFright198 (18)°DME 10.0miICAO rules
TRYBE4DECRRVHFleft120 (300)°DME 10.0miICAO rules
TRYBE4HFNERVHFright78 (258)°DME 10.0miICAO rules
TRYBE4TRYBEVHFleft95 (275)°DME 10.0miICAO rules
*) magnetic outbound (inbound) holding course
