Chandler - Chandler Muni
Airport details
| Country | United States of America |
| State | Arizona |
| Region | K2 |
| Airspace | Albuquerque Ctr |
| Municipality | Chandler |
| Elevation | 1243ft (379m) |
| Timezone | GMT -7 |
| Coordinates | 33.27352, -111.79954 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | KCHD |
| IATA code | n/a |
| FAA code | CHD |
Communication
| Chandler Muni ATIS | 128.325 |
| Chandler Muni Ground Control | 124.400 |
| Chandler Muni Tower | 126.100 |
| Chandler Muni Tower | 133.100 |
| Chandler Muni PHOENIX Approach | 123.700 |
| Chandler Muni PHOENIX Departure | 123.700 |

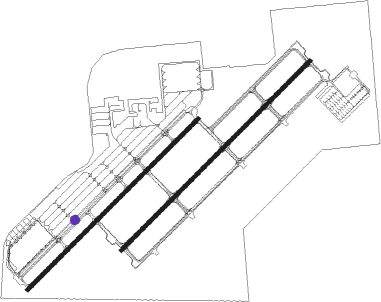

Runway info
Runway 4R / 22L  | ||
| length | 1485m (4872ft) | |
| bearing | 54° / 234° | |
| width | 23m (75ft) | |
| surface | asphalt | |
| blast zone | 27m (89ft) / 27m (89ft) | |
| Runway 4L / 22R | ||
| length | 1342m (4403ft) | |
| bearing | 54° / 234° | |
| width | 23m (75ft) | |
| surface | asphalt | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| IWA | WILLIE (PHOENIX) VORTAC | 7.6 | 79° | 113.30 |
| PXR | PHOENIX VORTAC | 12.8 | 313° | 115.60 |
| TFD | STANFIELD (CASA GRANDE) VORTAC | 23.9 | 196° | 114.80 |
| LUF | LUKE (GLENDALE) TACAN | 33.1 | 294° | 113 |
| GBN | GILA BEND VORTAC | 47.9 | 250° | 116.60 |
| AVQ | MARANA NDB | 59.5 | 146° | 245 |
| PAN | DME | 63.3 | 25° | 116.35 |
Departure and arrival routes
| Transition altitude | 18000ft |
| Transition level | 18000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW04 (ALL) | |||
| YOTES6, SNOBL6 | 158mi | 30° | |
| LALUZ6 | 149mi | 67° | |
| FTHLS6 | 263mi | 78° | |
| KATMN6 | 144mi | 109° | |
| BNYRD6 | 84mi | 143° | |
| JUDTH7 | 113mi | 257° | |
| IZZZO7 | 105mi | 285° | |
| MAYSA7 | 109mi | 319° | |
| RW22 (ALL) | |||
| SNOBL6, YOTES6 | 158mi | 30° | |
| LALUZ6 | 149mi | 67° | |
| FTHLS6 | 263mi | 78° | |
| KATMN6 | 144mi | 109° | |
| BNYRD6 | 84mi | 143° | |
| JUDTH7 | 113mi | 257° | |
| IZZZO7 | 105mi | 285° | |
| MAYSA7 | 109mi | 319° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| ALL | |||
| ARLIN4, BLH5 | 44.4 | 91° | |
| DSERT2 | 70.5 | 187° | |
| HUUTY1 | 79.2 | 233° | |
| SUNSS8 | 46.6 | 306° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW04R | PXR (133°) | PXR SIZVU (12mi, 205°) 5100ft DECTU (7mi, 134°) 4000ft |
| RW04R | TFD (16°) | TFD NISIW (11mi, 7°) 5100ft DECTU (7mi, 317°) 4000ft |
| RNAV | DECTU 4000ft KEDDU (5mi, 56°) 2900ft KCHD (6mi, 56°) 1275ft (6491mi, 107°) 2200ft DECTU (6501mi, 286°) 4000ft DECTU (turn) |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| ARLIN4 | ARLIN | VHF | right | 256 (76)° | 1.0min timed | ICAO rules | |
| ARLIN4 | HYDRR | VHF | right | 215 (35)° | 1.0min timed | ICAO rules | |
| BLH5 | ARLIN | VHF | right | 256 (76)° | 1.0min timed | ICAO rules | |
| BLH5 | HYDRR | VHF | right | 215 (35)° | 1.0min timed | ICAO rules | |
| DSERT2 | DSERT | VHF | left | 345 (165)° | DME 10.0mi | ICAO rules | |
| DSERT2 | SHOCK | VHF | left | 2 (182)° | DME 10.0mi | ICAO rules | |
| HUUTY1 | CHEKR | VHF | left | 16 (196)° | < 14000ft | DME 7.0mi | ICAO rules |
| HUUTY1 | INW | NDB | right | 248 (68)° | 1.0min timed | ICAO rules | |
| HUUTY1 | ROSEE | VHF | right | 39 (219)° | < 14000ft | DME 7.0mi | ICAO rules |
| HUUTY1 | ZUN | NDB | left | 73 (253)° | 18000ft - 45000ft | 1.5min timed | ICAO rules |
| SUNSS8 | BAYBI | VHF | left | 120 (300)° | DME 9.0mi | ICAO rules | |
| SUNSS8 | ITEMM | VHF | left | 93 (273)° | DME 10.0mi | ICAO rules | |
| SUNSS8 | SQUEZ | VHF | left | 120 (300)° | DME 7.0mi | ICAO rules | |
| *) magnetic outbound (inbound) holding course | |||||||
