Airports for X-Plane

Kenosha - Kenosha Regl

Airport details

CountryUnited States of America
StateWisconsin
RegionK5
AirspaceChicago Ctr
MunicipalityKenosha
Elevation743ft (226m)
TimezoneGMT -6
Coordinates42.59570, -87.92780
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKENW
IATA codeENW
FAA codeENW

Communication

Kenosha Regl ATIS127.175
Kenosha Regl UNICOM122.950
Kenosha Regl CTAF118.600
Kenosha Regl Ground Control121.875
Kenosha Regl Tower118.600
Kenosha Regl MILWAUKEE Approach/Departure135.875

Approach frequencies

ILS-cat-IRW07L109.3518.00mi
3° GSRW07L109.3518.00mi

Runway info

Runway 7L / 25R
 length1674m (5492ft)
 bearing70° / 250°
 width30m (100ft)
 surfaceconcrete
Runway 15 / 33
 length1346m (4416ft)
 bearing135° / 315°
 width30m (100ft)
 surfaceconcrete
Runway 7R / 25L
 length1005m (3297ft)
 bearing70° / 250°
 width23m (75ft)
 surfaceasphalt

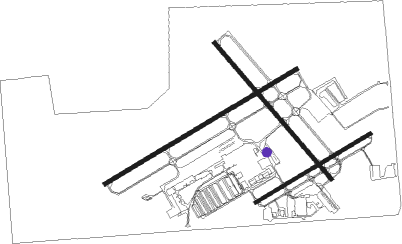

Airport layout - parking location Terminal-4


Taxiway locations

 A  A1  A2  A3  A4  B  B2  B3
 C  C2  C3  D  D2  E1  F  G
Parking locations

 East-1  East-2  East-3  North-1  North-2  North-3  North-4  North-5
 North-J1  North-J2  North-J3  North-J4  South-1  South-2  South-3  South-4
 South-5  South-6  Terminal-1  Terminal-2  Terminal-3  Terminal-4  Terminal-5  Terminal-6

Nearby beacons

codeidentifierdistbearingfrequency
ENWDME0.2311°109.20
RAPASER (RACINE) NDB5.318°206
UGWAUKE (CHICAGO/WAUKEGAN) NDB9.6136°379
HRK(RACINE) DME11.134°117.70
BUU(BURLINGTON) DME17.4284°114.50
OBKNORTHBROOK VOR/DME22.5184°113
LJT(MILWAUKEE) DME31.2348°115.65
BAEBADGER (MILWAUKEE) VOR/DME35326°116.40
GCODME36.1178°108.25
DPADUPAGE (CHICAGO) VOR/DME46.3211°108.40
RYVROCK RIVER (WATERTOWN) NDB49.3306°371
BJBWEST BEND VOR50.3347°109.80
MXKEDZI (CHICAGO) NDB52.3164°248
UNUJUNEAU NDB60.5317°344

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
ALL
 UECKR642mi143°
 ACCRA540mi188°

STAR starting pointsdistanceinbound heading
ALL
 GOPAC225.3114°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW07LDIKHU (70°)DIKHU 3000ft
RW07LFARMM (59°)FARMM
DIKHU (14mi, 48°) 3000ft
RW07LOBK (4°)OBK
FARIV (13mi, 323°) 3000ft
DIKHU (7mi, 326°) 3000ft
RW07LVEENA (106°)VEENA
DIKHU (13mi, 144°) 3000ft
 RNAVDIKHU 3000ft
AHYOB (6mi, 70°) 2400ft
TABTE (4mi, 70°) 1280ft
KENW (2mi, 73°) 798ft
(5314mi, 116°) 2500ft
DIKHU (5324mi, 296°) 3000ft
DIKHU (turn)
RW15PETTY (232°)PETTY
KILME (16mi, 266°) 3000ft
IPIGY (5mi, 242°) 3000ft
RW15VEENA (106°)VEENA
IPIGY (10mi, 78°) 3000ft
 RNAVIPIGY 3000ft
KENUF (6mi, 135°) 2400ft
KENW (5mi, 136°) 766ft
(5314mi, 116°) 1142ft
VEENA (5330mi, 296°) 3000ft
VEENA (turn)
RW25RPETTY (232°)PETTY
GAVSE (9mi, 204°) 3000ft
RW25RTALOR (271°)TALOR
GAVSE (6mi, 320°) 3000ft
 RNAVGAVSE 3000ft
BOCIJ (6mi, 250°) 2400ft
TALGE (4mi, 250°) 1220ft
KENW (2mi, 247°) 752ft
(5314mi, 116°) 923ft
AHYOB (5319mi, 296°)
VEENA (15mi, 300°) 3000ft
VEENA (turn)
RW33PAPPI (315°)PAPPI
INSAW (13mi, 316°) 3000ft
RW33TALOR (271°)TALOR
KODOW (7mi, 210°) 3000ft
INSAW (5mi, 242°) 3000ft
RW33WARPI (338°)WARPI
INSAW (12mi, 4°) 3000ft
 RNAVINSAW 3000ft
KOKNE (6mi, 315°) 2400ft
APPLR (3mi, 315°) 1440ft
KENW (3mi, 313°) 758ft
(5314mi, 116°) 1160ft
KENUF (5317mi, 296°)
VEENA (14mi, 276°) 3000ft
VEENA (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
GOPAC2LEEDNVHFright181 (1)°DME 10.0miICAO rules
GOPAC2ZOWROVHFright273 (93)°DME 10.0miICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
