Airports for X-Plane

Great Bend - Great Bend Muni

Airport details

CountryUnited States of America
StateKansas
RegionK3
AirspaceKansas City Ctr
MunicipalityGreat Bend
Elevation1887ft (575m)
TimezoneGMT -6
Coordinates38.34425, -98.85919
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKGBD
IATA codeGBD
FAA codeGBD

Communication

Great Bend Muni AWOS 3119.275
Great Bend Muni CTAF/UNICOM122.800

Approach frequencies

ILS-cat-IRW35111.918.00mi
3° GSRW35111.918.00mi
Nearby Points of Interest:
Nagel House
-
Cheyenne Bottoms
-
Rush County Courthouse
-
Stafford Reformed Presbyterian Church
-
Stafford First United Methodist Church
-
Rice County Courthouse

Runway info

Runway 17 / 35
 length2397m (7864ft)
 bearing179° / 359°
 width30m (100ft)
 surfaceasphalt
 blast zone49m (161ft) / 0m (0ft)
Runway 11 / 29
 length1430m (4692ft)
 bearing114° / 294°
 width23m (75ft)
 surfaceasphalt
 blast zone198m (650ft) / 0m (0ft)

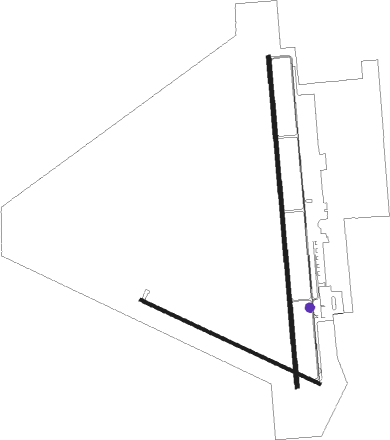

Airport layout - taxiway location A


Taxiway locations

 A  B  C  D
Parking locations

 New

Nearby beacons

codeidentifierdistbearingfrequency
GBBABSY NDB5.5178°419
HYNETTE (HAYS) NDB31.4317°374
HYSHAYS VORTAC36320°110.40
HUSALTT (HUTCHINSON) NDB45.9103°404
HUTHUTCHINSON VOR/DME48.4111°116.80

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW17DISKS (142°)DISKS
FEVDI (11mi, 4°) 4000ft
FEVDI (turn) 4000ft
RW17HYS (140°)HYS
JIPKU (23mi, 134°) 4000ft
FEVDI (5mi, 90°) 4000ft
 RNAVFEVDI 4000ft
CONPI (6mi, 179°) 3600ft
EJAFA (3mi, 179°) 2620ft
KGBD (3mi, 182°) 1926ft
(5822mi, 111°) 2084ft
HESMA (5823mi, 291°) 3600ft
HESMA (turn)
RW35DISKS (142°)DISKS
HESMA (13mi, 176°) 3600ft
HESMA (turn) 3600ft
RW35HARAN (289°)HARAN
PUCIS (10mi, 236°) 3600ft
HESMA (5mi, 270°) 3600ft
RW35SOSPE (68°)SOSPE
JAPRU (16mi, 95°) 3600ft
HESMA (5mi, 90°) 3600ft
 RNAVHESMA 3600ft
FENOB (6mi, 359°) 3600ft
VACUR (3mi, 359°) 2620ft
KGBD (3mi, 357°) 1931ft
WEDEG (5mi, 1°)
YUCUK (8mi, 270°) 4500ft
SOSPE (19mi, 227°)
SOSPE (turn)
