Airports for X-Plane

Washington - Washington Dulles Intl

Airport details

CountryUnited States of America
StateVirginia
RegionK6
AirspaceWashington Ctr
MunicipalityLoudoun County
Elevation312ft (95m)
TimezoneGMT -5
Coordinates38.94744, -77.45995
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKIAD
IATA codeIAD
FAA codeIAD

Communication

Washington Dulles Intl ATIS134.850
Washington Dulles Intl UNICOM122.950
Washington Dulles Intl Clearance DEL135.700
Washington Dulles Intl Ground Control {East)121.900
Washington Dulles Intl Ground Control (West)121.625
Washington Dulles Intl Tower (Rwys 01L-19R, 12-30)134.425
Washington Dulles Intl Tower (Rwy 01R-19L)120.100
Washington Dulles Intl Tower (Rwy01C-19C)120.250
Washington Dulles Intl POTOMAC Approach (331-090)126.100
Washington Dulles Intl POTOMAC Approach (091-240)128.525
Washington Dulles Intl POTOMAC Approach (241-330)120.450
Washington Dulles Intl POTOMAC Departure (190-300)126.650
Washington Dulles Intl POTOMAC Departure (300-010)125.050

Approach frequencies

ILS-cat-IIIRW01R110.118.00mi
ILS-cat-IIIRW19R110.7518.00mi
ILS-cat-IIIRW01L110.7518.00mi
ILS-cat-IIIRW19C111.318.00mi
ILS-cat-IIRW01C111.318.00mi
ILS-cat-IIRW19L110.118.00mi
ILS-cat-IRW12109.318.00mi
3° GSRW19L110.118.00mi
3° GSRW01C111.318.00mi
3° GSRW01L110.7518.00mi
3° GSRW19R110.7518.00mi
3° GSRW01R110.118.00mi
3° GSRW19C111.318.00mi
3° GSRW12109.318.00mi

Runway info

Runway 1L / 19R
 length2871m (9419ft)
 bearing1° / 181°
 width46m (150ft)
 surfaceconcrete
 blast zone122m (400ft) / 122m (400ft)
Runway 1C / 19C
 length3513m (11526ft)
 bearing1° / 181°
 width46m (150ft)
 surfaceconcrete
 blast zone122m (400ft) / 0m (0ft)
Runway 1R / 19L
 length3513m (11526ft)
 bearing1° / 181°
 width46m (150ft)
 surfaceconcrete
 blast zone0m (0ft) / 115m (377ft)
Runway 12 / 30
 length3196m (10486ft)
 bearing106° / 286°
 width46m (150ft)
 surfaceconcrete
 blast zone0m (0ft) / 122m (400ft)

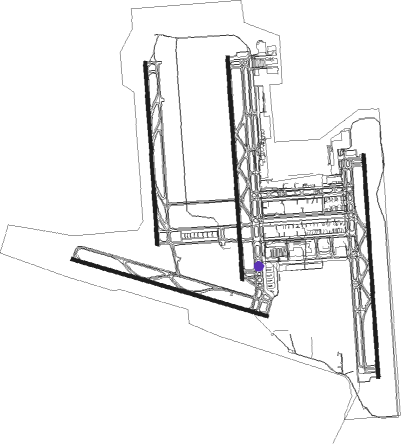

Airport layout - taxiway location Z


Taxiway locations

 A  A1  A2  A4  A5  B  C  D
 E  E1  E2  E3  EE  F  G  H
 J  J1  J2  J3  J4  J5  K  K1
 K2  K3  K4  K5  K6  K7  K8  Q
 Q1  Q2  Q3  Q4  S  T  U  U1
 U2  U3  U4  U5  U6  U7  W2  W3
 W4  Y  Y1  Y11  Y2  Y3  Y4  Y5
 Y6  Y7  Y8  Y9  Z  Z2  Z3  Z5
 Z7
Parking locations

 1A  1B  1C  1E  1F  1G  2A  2B
 2C  2E  2F  2G  3A  3C  3E  3F
 4A  4B  4C  4E  4F  5A  5C  5E
 5F  6A  6B  6C  6E  A14  A15  A19
 A20  A20A  A23  A24  A26  A31  A32  B37
 B40  B41  B44  B45  B48  B49  B50  B62
 B63  B64  B65  B66  B67  B70  B71  B72
 B73  B73X  B74  B75  B76  B78  B79  B79A
 C1  C11  C11A  C12  C14  C17  C18  C19
 C2  C20  C22  C23  C24  C26  C27  C28
 C3  C4  C5  C6  C7  C8  C9  D1
 D10  D11  D12  D14  D15  D15A  D16  D18
 D19  D2  D20  D21  D21A  D23  D24  D26
 D29  D29B  D3  D30  D30A  D30B  D32  D32A
 D32B  D4  D5  D6  D7  D8  FedEx  GA
 R28  UPS  W  Z1  Z10  Z12  Z14  Z2
 Z3  Z6A  Z6B  Z6C  Z9

Nearby beacons

codeidentifierdistbearingfrequency
AMLARMEL (WASH.,D.C.) VOR/DME0.8208°113.50
GTNGEORGETOWN (WASH., D.C.) NDB15.793°323
DCAWASHINGTON, D.C. VOR/DME20.4102°111
DCAOXONN (WASHINGTON) NDB22.9113°332
DAADAVEE (FT BELVOIR) NDB23.7129°223
CSNCASANOVA VORTAC26.4233°116.30
FDKFREDERICK VOR28.110°109
ADWANDREWS (CAMP SPRINGS) VORTAC29103°113.10
MRBMARTINSBURG VORTAC31.9318°112.10
BUHANNE ARUNDEL (FT MEADE) NDB33.679°260
LDNLINDEN VORTAC35.2263°114.30
MSQNAILR (CULPEPER) NDB36.2222°351
OTTNOTTINGHAM VORTAC36.4109°113.70
BRVBROOKE VORTAC37170°114.50
FNDELLICOTT (BALTIMORE) NDB37.864°371
BALBALTIMORE VORTAC39.574°115.10
EMIWESTMINSTER VORTAC39.741°117.90
EZFSHANNON (FREDERICKSBURG) NDB40.9179°237
HGRHAGERSTOWN VOR48.6332°109.80
THSSAINT THOMAS VORTAC63.4334°115
GVEGORDONSVILLE VORTAC64.8217°115.60

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
ALL
 JDUBB4142mi219°
 CLTCH3109mi240°
RW01 (ALL)
 JERES242mi0°
 WOOLY2, JCOBY459mi81°
 SCRAM6118mi227°
 RNLDI435mi263°
 BUNZZ335mi271°
 MCRAY240mi326°
RW01C
 CPTAL119mi31°
RW01L
 CPTAL119mi31°
RW01R
 CPTAL119mi31°
RW12
 CPTAL119mi31°
RW19 (ALL)
 JERES242mi0°
 JCOBY4, WOOLY259mi81°
 SCRAM6118mi227°
 RNLDI435mi263°
 BUNZZ335mi271°
 MCRAY240mi326°
RW19C
 CPTAL119mi31°
RW19L
 CPTAL119mi31°
RW19R
 CPTAL119mi31°
RW30
 JERES242mi0°
 CPTAL119mi31°
 JCOBY4, WOOLY259mi81°
 SCRAM6118mi227°
 RNLDI435mi263°
 BUNZZ335mi271°
 MCRAY240mi326°

STAR starting pointsdistanceinbound heading
ALL
 COATT559.67°
 WIGOL266.644°
 PRIVO269.4166°
 SEG6113.8197°
 DELRO572.3219°
RW01 (ALL)
 CAVLR442.52°
 DOCCS340.474°
 GIBBZ414.094°
RW01C
 MAPEL334.1166°
 HYPER8, LEGGO645.5198°
RW01L
 MAPEL334.1166°
 HYPER8, LEGGO645.5198°
RW01R
 MAPEL334.1166°
 LEGGO6, HYPER845.5198°
RW12
 DOCCS340.474°
RW19 (ALL)
 CAVLR442.52°
 DOCCS340.474°
 GIBBZ414.094°
RW19C
 MAPEL334.1166°
 LEGGO6, HYPER845.5198°
RW19L
 MAPEL334.1166°
 HYPER8, LEGGO645.5198°
RW19R
 MAPEL334.1166°
 LEGGO6, HYPER845.5198°
RW30
 CAVLR442.52°
 DOCCS340.474°
 GIBBZ414.094°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW01CYBARIN (345°)BARIN
ERACE (9mi, 322°) 4000ft
CARRY (6mi, 1°) 2900ft
RW01CYGILBY (101°)GILBY
KIESS (16mi, 176°) 4000ft
ERACE (5mi, 90°) 4000ft
CARRY (6mi, 1°) 2900ft
 RNAVCARRY 2900ft
SKINS (2mi, 1°) 2300ft
KIAD (7mi, 1°) 340ft
BOYDS (16mi, 1°) 3000ft
BOYDS (turn)
RW01CZBRV (350°)BRV
ERACE (23mi, 344°) 4000ft
RW01CZDRUZZ (104°)DRUZZ
CSN (39mi, 137°) 5000ft
ERACE (19mi, 80°) 4000ft
RW01CZSHNON (89°)SHNON
CSN (20mi, 147°) 5000ft
ERACE (19mi, 80°) 4000ft
 RNAVERACE 4000ft
SKINS (8mi, 1°) 2300ft
KIAD (7mi, 1°) 340ft
WASMA (1mi, 2°)
HARPP (25mi, 294°) 5000ft
HARPP (turn)
RW01LCSN (53°)CSN
CINNA (18mi, 84°) 4000ft
FAZER (4mi, 1°) 3000ft
 RNAVFAZER 3000ft
MORCE (7mi, 1°) 1900ft
KIAD (5mi, 11°) 351ft
COCAV (5mi, 347°)
PRISM (10mi, 286°)
MRB (20mi, 330°) 4000ft
MRB (turn)
RW01RYBRV (350°)BRV
MOSBY (23mi, 347°) 3000ft
RW01RYCSN (53°)CSN
MOSBY (21mi, 80°) 3000ft
 RNAVMOSBY 3000ft
WAXIN (8mi, 1°) 1900ft
KIAD (6mi, 348°) 365ft
FUREE (4mi, 23°)
BLITZ (16mi, 57°) 3000ft
BLITZ (turn)
RW01RZBRV (350°)BRV
MOSBY (23mi, 347°) 3000ft
RW01RZDRUZZ (104°)DRUZZ
CSN (39mi, 137°) 5000ft
MOSBY (21mi, 80°) 3000ft
RW01RZSHNON (89°)SHNON
CSN (20mi, 147°) 5000ft
MOSBY (21mi, 80°) 3000ft
 RNAVMOSBY 3000ft
WAXIN (8mi, 1°) 1900ft
KIAD (6mi, 348°) 365ft
FUREE (4mi, 23°)
HARPP (25mi, 289°) 5000ft
HARPP (turn)
RW12DOCCS (74°)DOCCS
SHNON (17mi, 44°) 5700ft
KNUCK (14mi, 69°) 4500ft
RW12DRUZZ (104°)DRUZZ
RAZZZ (8mi, 96°) 4800ft
KNUCK (20mi, 106°) 4500ft
 RNAVKNUCK 4500ft
JETMO (11mi, 106°) 1700ft
OKRAE (2mi, 106°) 1180ft
KIAD (4mi, 98°) 359ft
OTSUE (4mi, 115°)
ZULKA (9mi, 191°)
OLIVR (23mi, 284°) 4000ft
OLIVR (turn)
RW19CYDRUZZ (104°)DRUZZ
CRVER (33mi, 78°) 4800ft
DIMKE (11mi, 90°) 4000ft
BOYDS (6mi, 181°) 4000ft
RW19CYMULRR (190°)MULRR
DIMKE (20mi, 200°) 4000ft
BOYDS (6mi, 181°) 4000ft
RW19CYSHNON (89°)SHNON
CRVER (29mi, 45°) 4400ft
DIMKE (11mi, 90°) 4000ft
BOYDS (6mi, 181°) 4000ft
 RNAVBOYDS 4000ft
FEMKO (11mi, 181°) 1500ft
KIAD (5mi, 181°) 323ft
BOPAC (4mi, 181°)
CSN (24mi, 239°) 4000ft
CSN (turn)
RW19CZDRUZZ (104°)DRUZZ
CRVER (33mi, 78°) 4100ft
DIMKE (11mi, 90°) 4000ft
BOYDS (6mi, 181°) 4000ft
RW19CZMULRR (190°)MULRR
DIMKE (20mi, 200°) 4000ft
BOYDS (6mi, 181°) 4000ft
RW19CZSHNON (89°)SHNON
CRVER (29mi, 45°) 4100ft
DIMKE (11mi, 90°) 4000ft
BOYDS (6mi, 181°) 4000ft
RW19CZTRING (233°)TRING
BGBRO (10mi, 17°) 4000ft
BOYDS (7mi, 276°) 4000ft
 RNAVBOYDS 4000ft
CIREP (7mi, 181°) 2500ft
FEMKO (3mi, 181°) 1500ft
KIAD (5mi, 181°) 323ft
BOPAC (4mi, 181°)
BLUES (22mi, 258°) 4000ft
BLUES (turn)
RW19LYDRUZZ (104°)DRUZZ
CRVER (33mi, 78°) 4800ft
YYANG (12mi, 90°) 4000ft
IZUMI (7mi, 181°) 3000ft
RW19LYMULRR (190°)MULRR
YYANG (20mi, 196°) 4000ft
IZUMI (7mi, 181°) 3000ft
RW19LYSHNON (89°)SHNON
CRVER (29mi, 45°) 4400ft
YYANG (12mi, 90°) 4000ft
IZUMI (7mi, 181°) 3000ft
 RNAVIZUMI 3000ft
DOMSE (10mi, 181°) 1700ft
KIAD (5mi, 198°) 348ft
WAXIN (6mi, 168°) 2000ft
WAXIN (turn)
RW19LZDRUZZ (104°)DRUZZ
CRVER (33mi, 78°) 4100ft
YYANG (12mi, 90°) 4000ft
IZUMI (7mi, 181°) 3000ft
RW19LZMULRR (190°)MULRR
YYANG (20mi, 196°) 4000ft
IZUMI (7mi, 181°) 3000ft
RW19LZSHNON (89°)SHNON
CRVER (29mi, 45°) 4100ft
YYANG (12mi, 90°) 4000ft
IZUMI (7mi, 181°) 3000ft
RW19LZTRING (233°)TRING
PERTE (9mi, 27°) 4000ft
IZUMI (7mi, 279°) 3000ft
 RNAVIZUMI 3000ft
DOMSE (10mi, 181°) 1700ft
KIAD (5mi, 198°) 348ft
WAXIN (6mi, 168°) 2000ft
WAXIN (turn)
RW19RDRUZZ (104°)DRUZZ
CRVER (33mi, 78°) 4800ft
BEEZY (11mi, 108°) 4000ft
LAUGH (5mi, 181°) 3000ft
RW19RMULRR (190°)MULRR
BEEZY (24mi, 199°) 4000ft
LAUGH (5mi, 181°) 3000ft
RW19RSHNON (89°)SHNON
CRVER (29mi, 45°) 4400ft
BEEZY (11mi, 108°) 4000ft
LAUGH (5mi, 181°) 3000ft
 RNAVLAUGH 3000ft
MULKY (7mi, 181°) 1700ft
KIAD (6mi, 172°) 332ft
HIMRA (4mi, 195°)
OLIVR (19mi, 270°) 5000ft
OLIVR (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
CAVLR4BNTLYVHFright214 (34)°DME 10.0mi230
CAVLR4CAVLRVHFleft217 (37)°6001ft - 14000ftDME 5.0mi210
CAVLR4DORRNVHFleft214 (34)°DME 10.0miICAO rules
CAVLR4MEEGOVHFright217 (37)°6001ft - 14000ftDME 10.0mi210
COATT5BRVNDBleft214 (34)°1.0min timedICAO rules
COATT5FALKOVHFleft211 (31)°6001ft - 14000ft1.0min timed210
COATT5OGATEVHFleft211 (31)°1.0min timedICAO rules
DELRO5BINNSVHFright68 (248)°1.0min timed265
DELRO5HYPERVHFleft65 (245)°6001ft - 14000ft1.0min timed210
DOCCS3DOCCSVHFright259 (79)°6001ft - 14000ft1.0min timed210
DOCCS3FINKSVHFright259 (79)°18000ft - 45000ft1.5min timedICAO rules
GIBBZ4HESEEVHFright265 (85)°< 60000ftDME 10.0mi250
GIBBZ4IGGGYVHFright293 (113)°6001ft - 14000ftDME 6.0mi210
GIBBZ4KILMRVHFright263 (83)°6001ft - 14000ftDME 6.0mi210
GIBBZ4MGWNDBleft307 (127)°18000ft - 45000ft1.5min timedICAO rules
HYPER8BINNSVHFright68 (248)°1.0min timed265
HYPER8HYPERVHFleft65 (245)°6001ft - 14000ft1.0min timed210
LEGGO6HYPERVHFleft65 (245)°6001ft - 14000ft1.0min timed210
LEGGO6PRTZLVHFright21 (201)°6001ft - 14000ft1.0min timed210
LEGGO6SEGNDBright17 (197)°6001ft - 14000ft1.0min timed210
MAPEL3DAFIXVHFleft357 (177)°6001ft - 14000ft1.0min timed210
PRIVO2DAFIXVHFleft357 (177)°6001ft - 14000ft1.0min timed210
SEG6HYPERVHFleft65 (245)°6001ft - 14000ft1.0min timed210
SEG6PRTZLVHFright21 (201)°6001ft - 14000ft1.0min timed210
SEG6SEGNDBright17 (197)°6001ft - 14000ft1.0min timed210
WIGOL2BBILLVHFleft233 (53)°DME 10.0miICAO rules
WIGOL2JUDGGVHFleft269 (89)°DME 10.0miICAO rules
*) magnetic outbound (inbound) holding course
