Airports for X-Plane

Olathe - New Century Aircenter

Airport details

CountryUnited States of America
StateKansas
RegionK3
AirspaceKansas City Ctr
MunicipalityJohnson County
Elevation1085ft (331m)
TimezoneGMT -6
Coordinates38.83092, -94.89030
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKIXD
IATA codeJCI
FAA codeIXD

Communication

New Century Aircenter ASOS135.325
New Century Aircenter CTAF133.000
New Century Aircenter UNICOM122.950
New Century Aircenter Ground Control124.300
New Century Aircenter Tower133.000
New Century Aircenter KANSAS CITY Approach/Departure118.900

Approach frequencies

ILS-cat-IRW36110.918.00mi
3° GSRW36110.918.00mi

Runway info

Runway 18 / 36
 length2241m (7352ft)
 bearing180° / 0°
 width46m (151ft)
 surfaceasphalt
Runway 4 / 22
 length1563m (5128ft)
 bearing54° / 234°
 width30m (98ft)
 surfaceasphalt

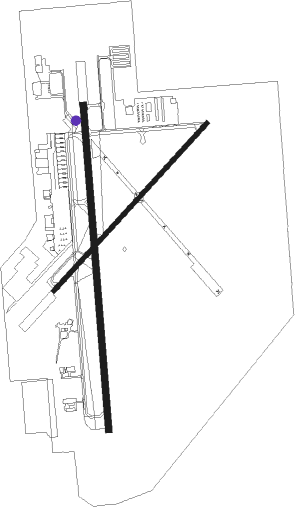

Airport layout - taxiway location C


Taxiway locations

 A  B  C  F  H  K  L
Parking locations

 Advanced  Executive  FBO  GA  Maint  T-Hanger

Nearby beacons

codeidentifierdistbearingfrequency
PKHERBB (OLATHE) NDB8.5117°420
JZNEWBN (LAWRENCE) NDB13.2287°338
OWIOTTAWA NDB24.3232°251
MCIKANSAS CITY VORTAC28.219°113.25
RNHUGGY (KANSAS CITY) NDB28.35°416
TOPTOPEKA VORTAC35.8295°117.80
FOEFORBES (TOPEKA) TACAN36.7279°111.60
BUMBUTLER VORTAC38.5144°115.90
ANXNAPOLEON VORTAC38.971°114
TOBILOY (TOPEKA) NDB41290°521
STTARIO (ST JOSEPH) NDB50.7359°260

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
ALL
 ROYAL988mi10°
 WLDCT5128mi272°
 TIFTO666mi308°
RW04
 LAKES3168mi76°
 RACER7115mi133°
 CHIEF768mi358°
RW18
 LAKES3168mi76°
 RACER7115mi133°
 CHIEF768mi358°
RW22
 LAKES3168mi76°
 RACER7115mi133°
 CHIEF768mi358°
RW36
 LAKES3168mi76°
 RACER7115mi133°
 CHIEF768mi358°

STAR starting pointsdistanceinbound heading
ALL
 JHAWK624.887°
 BQS767.3232°
 TYGER638.8280°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW04AXUXE (54°)AXUXE 3100ft
RW04JONUL (79°)JONUL
AXUXE (7mi, 130°) 3100ft
RW04WAMUS (23°)WAMUS
AXUXE (7mi, 310°) 3100ft
 RNAVAXUXE 3100ft
ORAVE (7mi, 54°) 2700ft
KIXD (5mi, 54°) 1102ft
(5634mi, 112°) 1330ft
FALOV (5624mi, 292°) 3100ft
FALOV (turn)
RW18MIFEV (209°)MIFEV 3100ft
ZODPU (5mi, 270°) 3100ft
RW18OGUCO (150°)OGUCO 3100ft
ZODPU (5mi, 90°) 3100ft
RW18ZODPU (180°)ZODPU 3100ft
 RNAVZODPU 3100ft
KEZNU (6mi, 180°) 2700ft
KIXD (5mi, 179°) 1131ft
(5634mi, 112°) 1487ft
ANQUM (5635mi, 292°) 3100ft
ANQUM (turn)
RW22AYOBU (203°)AYOBU
FALOV (7mi, 130°) 3100ft
RW22FALOV (234°)FALOV 3100ft
RW22SIPSE (258°)SIPSE
FALOV (7mi, 310°) 3100ft
 RNAVFALOV 3100ft
CALVU (7mi, 234°) 2700ft
KIXD (5mi, 234°) 1132ft
(5634mi, 112°) 1337ft
AXUXE (5644mi, 292°) 3100ft
AXUXE (turn)
RW36ANQUM (0°)ANQUM 3100ft
RW36NAPVY (332°)NAPVY 3100ft
ANQUM (5mi, 270°) 3100ft
RW36UNOXY (29°)UNOXY 3100ft
ANQUM (5mi, 90°) 3100ft
 RNAVANQUM 3100ft
JIKLA (6mi, 0°) 2700ft
KIXD (6mi, 1°) 1102ft
(5634mi, 112°) 1316ft
ZODPU (5633mi, 292°) 3100ft
ZODPU (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BQS7BQSNDBright54 (234)°1.0min timedICAO rules
BQS7FONIXVHFright57 (237)°1.0min timedICAO rules
JHAWK6JHAWKVHFleft223 (43)°< 17999ft1.0min timedICAO rules
TYGER6TYGERVHFleft135 (315)°< 17999ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
