Airports for X-Plane

Lawrence - Lawrence Muni

Airport details

CountryUnited States of America
StateMassachusetts
RegionK6
AirspaceBoston Ctr
MunicipalityNorth Andover
Elevation145ft (44m)
TimezoneGMT -5
Coordinates42.71719, -71.12341
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKLWM
IATA codeLWM
FAA codeLWM

Communication

Lawrence Muni ATIS126.750
Lawrence Muni Ground Control124.300
Lawrence Muni Tower119.250
Lawrence Muni BOSTON Approach124.400
Lawrence Muni BOSTON Departure124.400

Approach frequencies

ILS-cat-IRW05111.718.00mi
3° GSRW05111.718.00mi

Runway info

Runway 5 / 23
 length1528m (5013ft)
 bearing47° / 227°
 width30m (98ft)
 surfaceasphalt
Runway 14 / 32
 length1115m (3658ft)
 bearing114° / 294°
 width30m (100ft)
 surfaceasphalt
 displ threshold0m (0ft) / 25m (82ft)

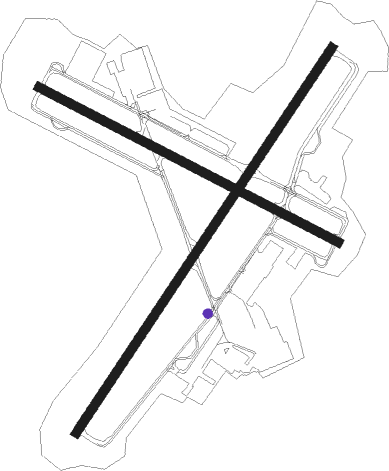

Airport layout - taxiway location A


Taxiway locations

 A  B  C  D  E  F
Parking locations

 Boston  CAP  Eagle  Falcon  FBO  Lawrence  MHM  North
 Ramp

Nearby beacons

codeidentifierdistbearingfrequency
LWMDME1.851°112.50
MHTMANCHESTER VOR/DME14.1302°114.40
MJFITZY (MANCHESTER) NDB19.9290°209
BOSBOSTON VOR/DME22.4160°112.70
PSM(PORTSMOUTH) DME25.538°116.50
COEPSOM (CONCORD) NDB28.1321°216
ESGROLLINS (ROLLINSFORD) NDB32.830°260
OWSTOGE (NORWOOD) NDB35.8180°397
CONCONCORD VOR/DME36.1318°112.90
SFSANFD (SANFORD) NDB39.125°349
GDMGARDNER VOR/DME42.5260°110.60
ENEKENNEBUNK VOR/DME4836°117.10
LCBLNAP (LACONIA) NDB52.4333°328
PVCPROVINCETOWN NDB55.7126°389
PUTPUTNAM VOR/DME55.8223°117.40
PVDPROVIDENCE VOR/DME61.1197°115.60

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW05
 LWM137mi229°
RW14
 LWM137mi229°
RW23
 LWM137mi229°
RW32
 LWM137mi229°

STAR starting pointsdistanceinbound heading
ALL
 GRAYM654.656°
 DREEM234.760°
 ZELKA223.263°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05BOS (340°)BOS
KENEE (14mi, 298°) 2000ft
TEWKS (5mi, 351°) 2000ft
RW05SOSYO (53°)SOSYO
TEWKS (9mi, 60°) 2000ft
RW05TEWKS (47°)TEWKS 2000ft
RW05WEPSO (63°)WEPSO
TEWKS (7mi, 85°) 2000ft
 RNAVTEWKS 2000ft
WOBMU (5mi, 47°) 1900ft
GRAPS (4mi, 47°) 720ft
KLWM (2mi, 46°) 191ft
(4579mi, 121°) 700ft
WITCH (4568mi, 301°) 3000ft
WITCH (turn) 3000ft
RW23NUBRY (256°)NUBRY
TUNUY (7mi, 300°) 2100ft
RW23TUNUY (227°)TUNUY 2100ft
RW23WIPNO (188°)WIPNO
TUNUY (7mi, 120°) 2100ft
 RNAVTUNUY 2100ft
WUMUP (7mi, 227°) 1400ft
KLWM (4mi, 227°) 189ft
(4579mi, 121°) 548ft
TEWKS (4584mi, 301°) 2000ft
TEWKS (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DREEM2DREEMVHFleft233 (53)°1.0min timedICAO rules
GRAYM6DREEMVHFleft233 (53)°1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
