Airports for X-Plane

Milwaukee - Lawrence J. Timmerman

Airport details

CountryUnited States of America
StateWisconsin
RegionK5
AirspaceChicago Ctr
MunicipalityMilwaukee
Elevation745ft (227m)
TimezoneGMT -6
Coordinates43.11039, -88.03442
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKMWC
IATA codeMWC
FAA codeMWC

Communication

Lawrence J. Timmerman ATIS128.300
Lawrence J. Timmerman UNICOM122.950
Lawrence J. Timmerman CTAF120.500
Lawrence J. Timmerman TIMMERMAN Ground Control121.700
Lawrence J. Timmerman Tower120.500
Lawrence J. Timmerman MILWAUKEE Approach125.350
Lawrence J. Timmerman MILWAUKEE Departure125.350

Approach frequencies

LOCRW15L108.518.00mi

Runway info

Runway 15L / 33R
 length1251m (4104ft)
 bearing137° / 317°
 width23m (75ft)
 surfaceasphalt
 blast zone16m (52ft) / 15m (49ft)
Runway 4L / 22R
 length976m (3202ft)
 bearing45° / 225°
 width23m (75ft)
 surfaceasphalt
Runway 15R / 33L
 length994m (3261ft)
 bearing137° / 317°
 width82m (269ft)
 surfacegrass
Runway 04R / 22L
 length870m (2854ft)
 bearing45° / 225°
 width81m (266ft)
 surfacegrass

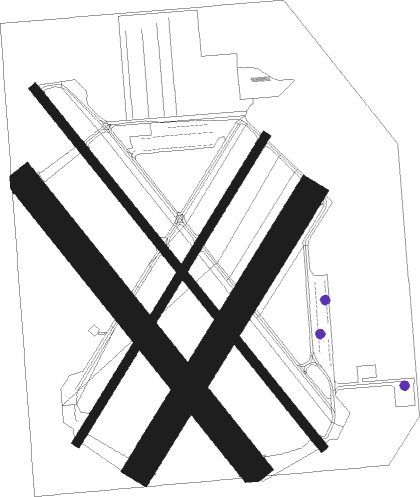

Airport layout - parking location East


Taxiway locations

 A  B  C  D  D2
Parking locations

 East  North

Nearby beacons

codeidentifierdistbearingfrequency
LJT(MILWAUKEE) DME0.1258°115.65
BAEBADGER (MILWAUKEE) VOR/DME10.9271°116.40
BJBWEST BEND VOR19.1344°109.80
HRK(RACINE) DME23148°117.70
RAPASER (RACINE) NDB26.3162°206
BUU(BURLINGTON) DME27.8212°114.50
RYVROCK RIVER (WATERTOWN) NDB30.5275°371
ENWDME31169°109.20
UNUJUNEAU NDB34.9296°344
UGWAUKE (CHICAGO/WAUKEGAN) NDB40.1160°379
FAH(SHEBOYGAN) DME40.316°110
OSPOBER (OSHKOSH) NDB51.2326°395
OBKNORTHBROOK VOR/DME53.5175°113
OSHOSHKOSH VORTAC57.5329°116.75

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
ALL
 UECKR672mi153°
 ACCRA571mi179°

STAR starting pointsdistanceinbound heading
ALL
 GOPAC224.352°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW04LBAE (91°)BAE
IVALY (11mi, 149°) 2600ft
IVALY (turn) 2600ft
RW04LBONOT (33°)BONOT
IVALY (5mi, 2°) 2600ft
RW04LGREAS (72°)GREAS
IVALY (16mi, 88°) 2600ft
 RNAVIVALY 2600ft
OWYAL (7mi, 45°) 2300ft
OTEPY (3mi, 45°) 1340ft
KMWC (2mi, 45°) 781ft
(5319mi, 116°) 1145ft
HAWKN (5330mi, 296°) 3000ft
HAWKN (turn)
RW15LCYNDI (202°)CYNDI
HAXEP (21mi, 237°) 2800ft
IZAHO (7mi, 189°) 2800ft
RW15LEWAWI (107°)EWAWI
JEDEM (14mi, 86°) 2800ft
IZAHO (7mi, 104°) 2800ft
RW15LIZAHO (137°)IZAHO 2800ft
 RNAVIZAHO 2800ft
YIKUS (6mi, 137°) 2700ft
NUHLE (4mi, 137°) 1500ft
KMWC (3mi, 138°) 785ft
(5319mi, 116°) 1300ft
HAWKN (5330mi, 296°) 3000ft
HAWKN (turn)
RW22RHAWKN (128°)HAWKN
OLIGY (18mi, 94°) 2700ft
OLIGY (turn) 2700ft
RW22RPROOT (266°)PROOT
WEGOM (6mi, 352°) 2700ft
OLIGY (7mi, 282°) 2700ft
RW22RWOKNO (214°)WOKNO
FITSA (7mi, 208°) 2700ft
OLIGY (6mi, 196°) 2700ft
 RNAVOLIGY 2700ft
ZOBIR (6mi, 225°) 2500ft
WIKPI (4mi, 225°) 1300ft
KMWC (2mi, 225°) 774ft
(5319mi, 116°) 1145ft
HAWKN (5330mi, 296°) 3000ft
HAWKN (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
GOPAC2LEEDNVHFright181 (1)°DME 10.0miICAO rules
GOPAC2ZOWROVHFright273 (93)°DME 10.0miICAO rules
*) magnetic outbound (inbound) holding course
