Airports for X-Plane

Chicago - Chicago O Hare Intl

Airport details

CountryUnited States of America
StateIllinois
RegionK5
AirspaceChicago Ctr
MunicipalityChicago
Elevation666ft (203m)
TimezoneGMT -6
Coordinates41.97751, -87.88454
Magnetic var
Typeland
Available sinceX-Plane v10.32
ICAO codeKORD
IATA codeORD
FAA codeORD

Communication

Chicago O Hare Intl ATIS135.400
Chicago O Hare Intl UNICOM122.950
Chicago O Hare Intl Clearance DEL119.250
Chicago O Hare Intl Clearance DEL121.600
Chicago O Hare Intl Ground Control121.900
Chicago O Hare Intl Ground Control121.675
Chicago O Hare Intl Ground Control121.750
Chicago O Hare Intl Tower132.700
Chicago O Hare Intl Tower120.750
Chicago O Hare Intl Tower126.900
Chicago O Hare Intl Tower127.925
Chicago O Hare Intl Approach124.700
Chicago O Hare Intl Approach119.000
Chicago O Hare Intl Approach121.150
Chicago O Hare Intl Approach124.350
Chicago O Hare Intl Departure125.000
Chicago O Hare Intl Departure125.400
Chicago O Hare Intl Departure127.400

Approach frequencies

ILS-cat-IIIRW27R111.7518.00mi
ILS-cat-IIIRW10L111.118.00mi
ILS-cat-IIIRW09C111.918.00mi
ILS-cat-IIIRW27L110.518.00mi
ILS-cat-IIIRW09L111.7518.00mi
ILS-cat-IIIRW10C108.9518.00mi
ILS-cat-IIIRW28R111.118.00mi
ILS-cat-IIIRW27C111.918.00mi
ILS-cat-IIIRW28C108.9518.00mi
ILS-cat-IIIRW10R110.918.00mi
ILS-cat-IIIRW28L110.7518.00mi
ILS-cat-IIRW22L110.118.00mi
ILS-cat-IIRW04R110.118.00mi
ILS-cat-IRW09R110.518.00mi
ILS-cat-IRW22R111.318.00mi
3° GSRW10L111.118.00mi
3° GSRW27L110.518.00mi
3° GSRW27R111.7518.00mi
3° GSRW04R110.118.00mi
3° GSRW09R110.518.00mi
3° GSRW10R110.918.00mi
3° GSRW22L110.118.00mi
3° GSRW28L110.7518.00mi
3° GSRW27C111.918.00mi
3° GSRW28R111.118.00mi
3° GSRW10C108.9518.00mi
3° GSRW09L111.7518.00mi
3° GSRW22R111.318.00mi
3° GSRW09C111.918.00mi
3° GSRW28C108.9518.00mi
Nearby Points of Interest:
Norwood Park Historical District
-
Churchville School
-
Schorsch Irving Park Gardens Historic District
-
Robinwood
-
Caroline Grow House
-
Robinson House
-
William and Jennette Sloane House
-
William H. Emery, Jr. House
-
Richard Cluever House
-
Hauptgebaude
-
John L. Pentecost House
-
F.B. Henderson House
-
Robbins Park Historic District
-
Maywood Fire Department Building
-
Masonic Temple Building
-
Winslow House
-
Baptist Retirement Home
-
Mrs. Henry F. Akin House
-
Oscar B. Balch House
-
Thomas H. Gale House
-
Walter Gale House
-
Robert P. Parker House
-
Francis J. Woolley House
-
Nathan G. Moore House
-
Edward R. Hills House

Runway info

Runway 10C / 28C
 length3284m (10774ft)
 bearing90° / 270°
 width61m (200ft)
 surfaceasphalt
 blast zone122m (400ft) / 122m (400ft)
Runway 10L / 28R
 length3953m (12969ft)
 bearing90° / 270°
 width46m (150ft)
 surfaceasphalt
 blast zone122m (400ft) / 67m (220ft)
Runway 4R / 22L
 length2460m (8071ft)
 bearing50° / 230°
 width46m (150ft)
 surfaceasphalt
 blast zone255m (837ft) / 168m (551ft)
Runway 9C / 27C
 length3417m (11211ft)
 bearing90° / 270°
 width61m (200ft)
 surfaceasphalt
 blast zone122m (400ft) / 122m (400ft)
Runway 9R / 27L
 length2423m (7949ft)
 bearing90° / 270°
 width46m (150ft)
 surfaceasphalt
 blast zone31m (102ft) / 61m (200ft)
Runway 4L / 22R
 length2286m (7500ft)
 bearing48° / 228°
 width46m (150ft)
 surfaceasphalt
 blast zone122m (400ft) / 61m (200ft)
Runway 9L / 27R
 length2281m (7484ft)
 bearing90° / 270°
 width46m (150ft)
 surfaceconcrete
 blast zone122m (400ft) / 122m (400ft)
Runway 10R / 28L
 length2279m (7477ft)
 bearing90° / 270°
 width46m (150ft)
 surfaceconcrete
 blast zone122m (400ft) / 122m (400ft)

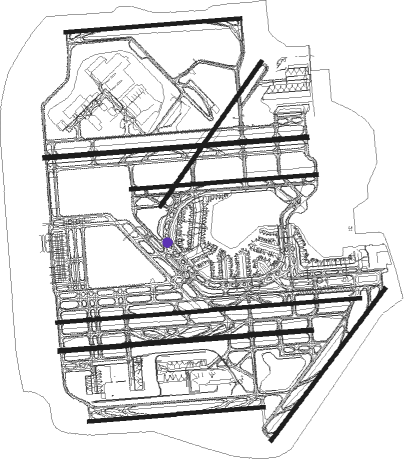

Airport layout - taxiway location A6


Taxiway locations

 A  A1  A10  A11  A12  A13  A14  A15
 A16  A17  A18  A19  A2  A20  A21  A3
 A4  A5  A6  A7  A8  A9  AA  B
 BB  BB1  BB2  C  C1  C2  C3  C4
 CC  D  D1  DD  E  E1  E2  E3
 E4  EE  F  FF  G  G1  G2  G3
 G4  GG  H  HH  J  J1  JJ  JJ1
 K  K1  KK  L  L2  L3  LL  M
 M1  M2  N  N1  N2  N3  N4  N5
 NN  P  P1  P2  P3  P4  P5  P6
 PP  PP1  Q  Q1  R  R1  RR  S
 S2  S3  SS  T  T6  T7  TT  U
 V  V2  V3  V4  V5  V6  W  W1
 W2  W3  W4  W5  Y  Y1  Y2  Y3
 Y4  Y5  YY  Z  Z1
Parking locations

 American  Cargo  Delta  Fed  SC11  SC13  SC15  SC16
 SC18  SC2  SC21  SC23  SC27  SC29  SC4  SC5
 SC6  SC7  SC8  SC9  Signature  South  Terminal  United

Nearby beacons

codeidentifierdistbearingfrequency
GCODME1.2313°108.25
OBKNORTHBROOK VOR/DME14.9345°113
MXKEDZI (CHICAGO) NDB16.6140°248
DPADUPAGE (CHICAGO) VOR/DME21.4259°108.40
UGWAUKE (CHICAGO/WAUKEGAN) NDB29.410°379
CGTCHICAGO HEIGHTS VORTAC31.3146°114.20
JOTJOLIET VOR/DME32.3225°112.30
GYGARIE (GARY) NDB34.8126°236
ENWDME37.3356°109.20
RAPASER (RACINE) NDB42.3359°206
EONPEOTONE VORTAC42.7172°113.20
BUU(BURLINGTON) DME46.5330°114.50
HRK(RACINE) DME47.25°117.70
IKKDME54.2178°111.60
DTGDWIGHT NDB56.4213°344
IKLUKOW (KANKAKEE) NDB57.6181°272

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
STAR starting pointsdistanceinbound heading
ALL
 SHAIN259.475°
 JVL164.4115°
 WATSN492.8291°
 OXI867.9298°
RW04 (ALL)
 TRTLL613.951°
 BENKY613.071°
 MADII6, FYTTE717.6130°
 ERNNY7, WYNDE214.7222°
 ESSPO513.3288°
 VEECK512.1308°
RW09 (ALL)
 TRTLL613.951°
 BENKY613.071°
 FYTTE7, MADII617.6130°
 WYNDE2, ERNNY714.7222°
RW09C
 ESSPO513.3288°
 VEECK512.1308°
RW09L
 ESSPO513.3288°
 VEECK512.1308°
RW09R
 ESSPO513.3288°
 VEECK512.1308°
RW10 (ALL)
 TRTLL613.951°
 BENKY613.071°
 FYTTE7, MADII617.6130°
 ERNNY7, WYNDE214.7222°
 ESSPO513.3288°
 VEECK512.1308°
RW22 (ALL)
 TRTLL613.951°
 BENKY613.071°
 MADII6, FYTTE717.6130°
 ERNNY7, WYNDE214.7222°
 ESSPO513.3288°
 VEECK512.1308°
RW27 (ALL)
 ERNNY7, WYNDE214.7222°
 ESSPO513.3288°
 VEECK512.1308°
RW27C
 TRTLL613.951°
 BENKY613.071°
 MADII6, FYTTE717.6130°
RW27L
 TRTLL613.951°
 BENKY613.071°
 FYTTE7, MADII617.6130°
RW27R
 TRTLL613.951°
 BENKY613.071°
 MADII6, FYTTE717.6130°
RW28 (ALL)
 ERNNY7, WYNDE214.7222°
 ESSPO513.3288°
 VEECK512.1308°
RW28C
 TRTLL613.951°
 BENKY613.071°
 FYTTE7, MADII617.6130°
RW28L
 TRTLL613.951°
 BENKY613.071°
 MADII6, FYTTE717.6130°
RW28R
 TRTLL613.951°
 BENKY613.071°
 FYTTE7, MADII617.6130°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW04RSIRCO (49°)SIRCO 8000ft
LIARR (4mi, 49°) 7000ft
HEALY (7mi, 50°) 5000ft
 RNAVHEALY 5000ft
BTKUS (3mi, 50°) 4000ft
FORTZ (7mi, 50°) 2200ft
KORD (6mi, 45°) 713ft
(5311mi, 116°) 1200ft
LAIRD (5298mi, 296°) 4000ft
LAIRD (turn)
RW09CGIBNS (87°)GIBNS
NORDL (20mi, 81°) 9000ft
KOOSS (3mi, 90°) 8000ft
SIKLR (3mi, 90°) 7000ft
MUELL (3mi, 90°) 6000ft
FFRAN (3mi, 90°) 5000ft
 RNAVFFRAN 5000ft
MIETH (3mi, 90°) 4000ft
EZELL (5mi, 90°) 2300ft
RANDI (3mi, 90°) 1400ft
KORD (4mi, 97°) 728ft
(5311mi, 116°) 1200ft
DEERE (5299mi, 296°) 4000ft
DEERE (turn)
RW09LGIBNS (87°)GIBNS
JHONN (21mi, 80°) 9000ft
ESSSS (3mi, 90°) 8000ft
VNDER (3mi, 90°) 7000ft
ILIUM (3mi, 90°) 6000ft
TRYXI (3mi, 90°) 5000ft
 RNAVTRYXI 5000ft
DOOGY (3mi, 90°) 4000ft
ZENAH (6mi, 90°) 2300ft
OGSIE (2mi, 90°) 1760ft
KORD (5mi, 102°) 723ft
(5311mi, 116°) 1100ft
OBK (5314mi, 296°) 4000ft
OBK (turn) 4000ft
RW09RGIBNS (87°)GIBNS
ADLMN (20mi, 82°) 9000ft
FOTTR (3mi, 90°) 8000ft
WASCO (3mi, 90°) 7000ft
GEMMS (3mi, 90°) 6000ft
CHILR (3mi, 90°) 5000ft
 RNAVCHILR 5000ft
DEVON (3mi, 90°) 4000ft
LANSE (5mi, 90°) 2300ft
YONUT (3mi, 90°) 1400ft
KORD (4mi, 94°) 727ft
(5311mi, 116°) 868ft
GRABL (5291mi, 296°) 4000ft
GRABL (turn)
RW10CGIBNS (87°)GIBNS
BAIRY (20mi, 84°) 9000ft
COUPR (3mi, 90°) 8000ft
KYLAA (3mi, 90°) 7000ft
PEPAW (3mi, 90°) 6000ft
SHARN (3mi, 90°) 5000ft
 RNAVSHARN 5000ft
RRUDA (3mi, 90°) 4000ft
RAYYY (5mi, 90°) 2300ft
ZURSO (3mi, 90°) 1220ft
KORD (4mi, 82°) 724ft
(5311mi, 116°) 869ft
AGZED (5308mi, 296°)
CGT (30mi, 152°) 4000ft
CGT (turn)
RW10LGIBNS (87°)GIBNS
ARIST (20mi, 84°) 9000ft
KALZO (3mi, 90°) 8000ft
BURKE (3mi, 90°) 7000ft
SYSCO (3mi, 90°) 6000ft
PRATT (3mi, 90°) 5000ft
 RNAVPRATT 5000ft
CARLE (3mi, 90°) 4000ft
BUGSE (5mi, 90°) 2300ft
ANACO (2mi, 90°) 1580ft
KORD (5mi, 85°) 728ft
(5311mi, 116°) 872ft
XURXU (5308mi, 296°)
CGT (30mi, 152°) 4000ft
CGT (turn)
RW10RYGIBNS (87°)GIBNS
FERLL (20mi, 88°) 9000ft
MLSEN (3mi, 88°) 8000ft
OLLGA (3mi, 88°) 7000ft
LEATH (3mi, 88°) 6000ft
GOOZY (3mi, 88°) 5000ft
 RNAVGOOZY 5000ft
KVENN (3mi, 88°) 4000ft
FLLYN (6mi, 88°) 2300ft
TRUFL (3mi, 88°) 1300ft
CFLCC (2mi, 88°) 735ft
(5313mi, 116°) 1200ft
DPA (5331mi, 295°) 4000ft
DPA (turn)
RW10RZGIBNS (87°)GIBNS
SAFLY (20mi, 85°) 9000ft
POPOF (3mi, 90°) 8000ft
DAYZE (3mi, 90°) 7000ft
BNITO (3mi, 90°) 6000ft
BOOTR (3mi, 90°) 5000ft
 RNAVBOOTR 5000ft
NIRRA (3mi, 90°) 4000ft
KUULA (6mi, 90°) 2300ft
ALYEA (3mi, 90°) 1300ft
KORD (4mi, 76°) 735ft
(5311mi, 116°) 1200ft
DPA (5331mi, 295°) 4000ft
DPA (turn)
RW22RFNUCH (225°)FNUCH 7000ft
NOLEN (7mi, 228°) 5000ft
 RNAVNOLEN 5000ft
RIDGE (10mi, 228°) 2200ft
PALIE (3mi, 228°) 1200ft
KORD (3mi, 196°) 697ft
EVRSN (4mi, 245°)
DPA (18mi, 262°) 4000ft
DPA (turn)
RW27CVOGLR (272°)VOGLR
NCHLS (17mi, 276°) 9000ft
CRICO (3mi, 270°) 8000ft
CERMI (3mi, 270°) 7000ft
BOOWW (3mi, 270°) 6000ft
MRRFF (3mi, 270°) 5000ft
 RNAVMRRFF 5000ft
JMBBO (3mi, 270°) 4000ft
DRSCL (6mi, 270°) 2200ft
YVONE (3mi, 270°) 1160ft
KORD (1mi, 248°) 708ft
(5311mi, 116°) 1100ft
UKUNE (5325mi, 296°) 4000ft
UKUNE (turn)
RW27LYVOGLR (272°)VOGLR
NRMAH (17mi, 276°) 9000ft
JOEBO (3mi, 270°) 8000ft
GRABL (3mi, 270°) 7000ft
RIPPR (3mi, 270°) 6000ft
BASHH (3mi, 270°) 5000ft
 RNAVBASHH 5000ft
EBENS (3mi, 270°) 4000ft
TAFFS (6mi, 270°) 2200ft
KORD (4mi, 266°) 708ft
WASCO (22mi, 271°) 4000ft
WASCO (turn)
RW27LZVOGLR (272°)VOGLR
NRMAH (17mi, 276°) 9000ft
JOEBO (3mi, 270°) 8000ft
GRABL (3mi, 270°) 7000ft
RIPPR (3mi, 270°) 6000ft
BASHH (3mi, 270°) 5000ft
 RNAVBASHH 5000ft
EBENS (3mi, 270°) 4000ft
TAFFS (6mi, 270°) 2200ft
KORD (4mi, 266°) 708ft
(5311mi, 116°) 854ft
WASCO (5332mi, 295°) 4000ft
WASCO (turn)
RW27RVOGLR (272°)VOGLR
VINYY (17mi, 278°) 9000ft
JOKKR (3mi, 270°) 8000ft
IYLEK (3mi, 270°) 7000ft
WELEV (3mi, 270°) 6000ft
HAREE (3mi, 270°) 5000ft
 RNAVHAREE 5000ft
BONZO (3mi, 270°) 4000ft
SIBLY (6mi, 270°) 2200ft
KORD (4mi, 254°) 719ft
(5311mi, 116°) 1100ft
OBK (5314mi, 296°) 4000ft
OBK (turn) 4000ft
RW28CVOGLR (272°)VOGLR
LNDUH (17mi, 273°) 9000ft
SNTOE (3mi, 270°) 8000ft
KOENN (3mi, 270°) 7000ft
MEMAW (3mi, 270°) 6000ft
RZUKO (3mi, 270°) 5000ft
 RNAVRZUKO 5000ft
HAZIL (3mi, 270°) 4000ft
SEIKA (6mi, 270°) 2300ft
ZUPTI (3mi, 270°) 1260ft
KORD (2mi, 290°) 705ft
(5311mi, 116°) 1100ft
DPA (5331mi, 295°) 4000ft
DPA (turn)
RW28LYVOGLR (272°)VOGLR
SYNTH (17mi, 269°) 9000ft
TAGPE (3mi, 272°) 8000ft
UCXOR (3mi, 272°) 7000ft
VIOLS (3mi, 272°) 6000ft
WODRO (3mi, 272°) 5000ft
 RNAVWODRO 5000ft
XOGDY (3mi, 272°) 4000ft
YOYUK (6mi, 272°) 2200ft
CFDZQ (5mi, 272°) 713ft
(5311mi, 116°) 1200ft
CGT (5296mi, 295°) 4000ft
CGT (turn)
RW28LZVOGLR (272°)VOGLR
LYSIN (17mi, 272°) 9000ft
KEGNE (3mi, 270°) 8000ft
JAVON (3mi, 270°) 7000ft
HANSO (3mi, 270°) 6000ft
FITAR (3mi, 270°) 5000ft
 RNAVFITAR 5000ft
CAKOS (3mi, 270°) 4000ft
PONCC (6mi, 270°) 2200ft
ALKYL (3mi, 270°) 1280ft
KORD (2mi, 310°) 713ft
(5311mi, 116°) 1200ft
CGT (5296mi, 295°) 4000ft
CGT (turn)
RW28RVOGLR (272°)VOGLR
MOTTT (17mi, 273°) 9000ft
RICKV (3mi, 270°) 8000ft
BLUTO (3mi, 270°) 7000ft
ROCSE (3mi, 270°) 6000ft
WAVIE (3mi, 270°) 5000ft
 RNAVWAVIE 5000ft
ADAME (3mi, 270°) 4000ft
WILLT (6mi, 270°) 2200ft
FIDAK (3mi, 270°) 1140ft
KORD (2mi, 285°) 705ft
(5311mi, 116°) 1200ft
DPA (5331mi, 295°) 4000ft
DPA (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BDF7BDFNDBright247 (67)°18000ft - 45000ft1.5min timedICAO rules
BDF7BENKYVHFright242 (62)°1.0min timedICAO rules
BDF7GROOVVHFright172 (352)°1.0min timedICAO rules
BDF7LOAMYVHFright239 (59)°1.5min timedICAO rules
BDF7MAGOOVHFright219 (39)°1.5min timedICAO rules
BENKY6BENKYVHFright242 (62)°1.0min timedICAO rules
BENKY6BFORDVHFright249 (69)°DME 11.0miICAO rules
BENKY6LOAMYVHFright239 (59)°1.5min timedICAO rules
BENKY6RYELYVHFright249 (69)°DME 12.0miICAO rules
ERNNY7CHDRRVHFleft330 (150)°DME 10.0miICAO rules
ERNNY7FAALZVHFright270 (90)°DME 10.0miICAO rules
ERNNY7FOLGOVHFright9 (189)°DME 16.0miICAO rules
ERNNY7LYNNIVHFright331 (151)°DME 10.0miICAO rules
ERNNY7SWIISVHFright360 (180)°DME 10.0miICAO rules
ESSPO5FRIDGVHFright167 (347)°< 17999ftDME 13.0miICAO rules
ESSPO5MKITAVHFleft120 (300)°DME 8.0miICAO rules
ESSPO5WATSNVHFleft95 (275)°1.0min timedICAO rules
FYTTE7BENNRVHFleft273 (93)°DME 10.0miICAO rules
FYTTE7BHAWKVHFleft273 (93)°DME 10.0miICAO rules
FYTTE7FYTTEVHFleft283 (103)°DME 7.0miICAO rules
FYTTE7ZZIPRVHFleft298 (118)°DME 10.0miICAO rules
JVL1BRIBEVHFright289 (109)°1.5min timedICAO rules
JVL1JVLNDBright289 (109)°1.0min timedICAO rules
JVL1KRENAVHFleft289 (109)°1.0min timedICAO rules
JVL1MCWNDBleft278 (98)°18000ft - 45000ft1.5min timedICAO rules
JVL1SUZYQVHFleft269 (89)°1.5min timedICAO rules
JVL1TEDDYVHFright289 (109)°1.0min timedICAO rules
MADII6CHDRRVHFleft330 (150)°DME 10.0miICAO rules
MADII6FAALZVHFright270 (90)°DME 10.0miICAO rules
MADII6FOLGOVHFright9 (189)°DME 16.0miICAO rules
MADII6HUNKAVHFright5 (185)°DME 10.0miICAO rules
MADII6ZANDIVHFleft16 (196)°DME 10.0miICAO rules
OXI8OXINDBleft117 (297)°18000ft - 45000ft1.5min timedICAO rules
OXI8WATSNVHFleft95 (275)°1.0min timedICAO rules
SHAIN2BFORDVHFright249 (69)°DME 11.0miICAO rules
SHAIN2CASHNVHFleft234 (54)°DME 15.0miICAO rules
SHAIN2GROOVVHFright172 (352)°1.0min timedICAO rules
SHAIN2LOAMYVHFright239 (59)°1.5min timedICAO rules
SHAIN2MAROCVHFleft224 (44)°DME 12.0miICAO rules
SHAIN2MCDEEVHFleft233 (53)°DME 16.0miICAO rules
SHAIN2RYELYVHFright249 (69)°DME 12.0miICAO rules
SHAIN2TRIDEVHFright226 (46)°DME 9.0miICAO rules
SHAIN2WELTSVHFleft219 (39)°DME 16.0miICAO rules
TRTLL6CASHNVHFleft234 (54)°DME 15.0miICAO rules
TRTLL6GROOVVHFright172 (352)°1.0min timedICAO rules
TRTLL6MAROCVHFleft224 (44)°DME 12.0miICAO rules
TRTLL6MCDEEVHFleft233 (53)°DME 16.0miICAO rules
TRTLL6TRTLLVHFleft225 (45)°DME 10.0miICAO rules
TRTLL6WELTSVHFleft219 (39)°DME 16.0miICAO rules
VEECK5CARVRVHFright98 (278)°DME 10.0miICAO rules
VEECK5NYLENVHFleft167 (347)°DME 8.0miICAO rules
VEECK5VEECKVHFleft104 (284)°DME 10.0miICAO rules
WATSN4FRIDGVHFright167 (347)°< 17999ftDME 13.0miICAO rules
WATSN4HAUPOVHFleft102 (282)°DME 8.0miICAO rules
WATSN4MKITAVHFleft120 (300)°DME 8.0miICAO rules
WATSN4WATSNVHFleft95 (275)°1.0min timedICAO rules
WYNDE2BITTRVHFright13 (193)°DME 10.0miICAO rules
WYNDE2CSTLOVHFright16 (196)°DME 12.0miICAO rules
WYNDE2EMMMAVHFright86 (266)°DME 12.0miICAO rules
WYNDE2GAULTVHFright16 (196)°DME 12.0miICAO rules
WYNDE2JODEEVHFright17 (197)°DME 12.0miICAO rules
WYNDE2PAITNVHFright79 (259)°DME 9.0miICAO rules
WYNDE2PECOKVHFright14 (194)°DME 10.0miICAO rules
WYNDE2WLTERVHFleft80 (260)°DME 10.0miICAO rules
WYNDE2WYNDEVHFright73 (253)°DME 9.0miICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
