Airports for X-Plane

Orlando - Orlando Executive

Airport details

CountryUnited States of America
StateFlorida
RegionK7
AirspaceJacksonville Ctr
MunicipalityOrlando
Elevation109ft (33m)
TimezoneGMT -5
Coordinates28.54749, -81.33588
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKORL
IATA codeORL
FAA codeORL

Communication

Orlando Executive ATIS127.250
Orlando Executive UNICOM122.950
Orlando Executive CTAF118.700
Orlando Executive Clearance128.450
Orlando Executive Ground121.400
Orlando Executive Tower118.700
Orlando Executive Orlando Approach124.800
Orlando Executive Orlando Departure119.525
Orlando Executive Orlando Departure120.150
Orlando Executive Orlando Departure119.475
Orlando Executive Orlando Departure119.400
Orlando Executive Orlando Departure124.800

Approach frequencies

ILS-cat-IRW25109.3518.00mi
ILS-cat-IRW07109.918.00mi
3° GSRW25109.3518.00mi
3° GSRW07109.918.00mi

Runway info

Runway 7 / 25
 length1828m (5997ft)
 bearing69° / 249°
 width46m (150ft)
 surfaceasphalt
 blast zone61m (200ft) / 61m (200ft)
Runway 13 / 31
 length1410m (4626ft)
 bearing127° / 307°
 width30m (100ft)
 surfaceasphalt
 blast zone0m (0ft) / 114m (374ft)

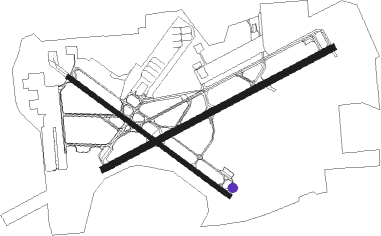

Airport layout - taxiway location E1


Taxiway locations

 A  A1  A2  A3  B  E  E1  E2
 E3  E4  E5  E6  F  G  K
Parking locations

 Atlantic  Customs  East  Sheltair  West

Nearby beacons

codeidentifierdistbearingfrequency
ORLORLANDO VORTAC0.2170°112.20
ORHERNY (ORLANDO) NDB5.7247°221
COFPATRICK (COCOA) TACAN42.5113°115
MLBMELBOURNE VOR/DME45.5122°115.85
OMNORMOND BEACH VORTAC46.816°112.60
LALLAKELAND VORTAC49.2230°116
OCFOCALA VORTAC60.2305°113.70
TRVTREASURE (VERO BEACH) VORTAC68.7136°117.30

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW07
 NYTES130mi70°
RW25
 TOLLZ130mi70°

STAR starting pointsdistanceinbound heading
ALL
 JOKRS237.037°
 MINEE533.644°
 PRICY144.552°
 JAFAR245.8122°
 LEESE329.9125°
 SHREK240.7127°
 GRNCH143.5132°
 TTHOR267.3185°
 ALYNA121.4232°
 RIDES139.9339°
 GOOFY737.8340°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW07ESRAQ (68°)ESRAQ 2000ft
 RNAVESRAQ 2000ft
DNMOR (6mi, 69°) 2000ft
SWLTR (3mi, 69°) 1020ft
KORL (3mi, 66°) 158ft
(4948mi, 109°) 309ft
MSHEL (4943mi, 289°) 1500ft
OVIDO (7mi, 37°) 1600ft
OVIDO (turn)
RW25LOUKE (250°)LOUKE 2800ft
 RNAVLOUKE 2800ft
ENLOW (3mi, 249°) 2000ft
MARYB (2mi, 249°) 1500ft
LMOND (3mi, 249°) 1100ft
KORL (4mi, 252°) 156ft
(4948mi, 109°) 313ft
ESRAQ (4959mi, 289°) 2000ft
ESRAQ (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ALYNA1GRDONVHFright19 (199)°DME 10.0miICAO rules
ALYNA1SURFRVHFleft79 (259)°DME 10.0miICAO rules
ALYNA1TIMIEVHFleft19 (199)°DME 10.0miICAO rules
GOOFY7BAIRNVHFright162 (342)°< 17999ft1.0min timedICAO rules
GRNCH1ADLYNVHFleft356 (176)°DME 10.0miICAO rules
GRNCH1COAXEVHFleft356 (176)°DME 10.0miICAO rules
GRNCH1ELITEVHFleft321 (141)°DME 10.0miICAO rules
GRNCH1GRNCHVHFright337 (157)°DME 10.0miICAO rules
JAFAR2BITTEVHFright304 (124)°DME 10.0miICAO rules
JAFAR2BRKWLVHFleft354 (174)°DME 10.0miICAO rules
JAFAR2BUULLVHFright339 (159)°DME 10.0miICAO rules
JAFAR2HUNKRVHFright339 (159)°DME 10.0miICAO rules
JAFAR2ILEXXVHFright307 (127)°DME 10.0miICAO rules
JAFAR2JAFARVHFleft343 (163)°DME 10.0miICAO rules
JOKRS2FAZESVHFleft169 (349)°DME 10.0miICAO rules
JOKRS2MOANSVHFleft183 (3)°< 17999ft1.0min timedICAO rules
LEESE3LEESEVHFright309 (129)°1.0min timedICAO rules
LEESE3SHIMMVHFright309 (129)°1.0min timedICAO rules
MINEE5DOWNNVHFleft183 (3)°1.0min timedICAO rules
MINEE5MINEEVHFright240 (60)°< 17999ft1.0min timedICAO rules
MINEE5MOANSVHFleft183 (3)°< 17999ft1.0min timedICAO rules
PRICY1CHIVEVHFright273 (93)°DME 10.0miICAO rules
PRICY1DAAWGVHFright272 (92)°DME 10.0miICAO rules
PRICY1DECKSVHFright276 (96)°DME 10.0miICAO rules
PRICY1DOZESVHFright250 (70)°DME 10.0miICAO rules
PRICY1PRICYVHFright252 (72)°DME 10.0miICAO rules
RIDES1RIDESVHFleft164 (344)°DME 10.0miICAO rules
RIDES1ZALUPVHFright125 (305)°DME 10.0miICAO rules
SHREK2BITTEVHFright304 (124)°DME 10.0miICAO rules
SHREK2WANDDVHFright310 (130)°DME 10.0miICAO rules
TTHOR2LPERDVHFright14 (194)°DME 10.0miICAO rules
TTHOR2WEEEKVHFleft2 (182)°DME 10.0miICAO rules
*) magnetic outbound (inbound) holding course
