Airports for X-Plane

Pompano Beach - Pompano Beach Airpark

Airport details

CountryUnited States of America
StateFlorida
RegionK7
AirspaceMiami Oceanic Ctr
MunicipalityPompano Beach
Elevation19ft (6m)
TimezoneGMT -5
Coordinates26.24740, -80.11121
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKPMP
IATA codePPM
FAA codePMP

Communication

Pompano Beach Airpark ATIS120.550
Pompano Beach Airpark Ground Control121.900
Pompano Beach Airpark Tower125.400
Pompano Beach Airpark MIAMI Approach119.700
Pompano Beach Airpark MIAMI Departure119.700

Approach frequencies

LOCRW15109.7518.00mi
Nearby Points of Interest:
Sample-McDougald House
-
Sample Estate
-
Pompano Beach Mound
-
James D. and Alice Butler House
-
Old Deerfield School
-
Mai-Kai Restaurant
-
House at 1240 Cocoanut Road
-
Administration Buildings
-
Lavender House
-
Boca Raton Old City Hall
-
Fred C. Aiken House
-
Bonnet House
-
Alfred and Olive Thorpe Lustron House
-
South Side School
-
Williams House
-
Dr. Willard Van Orsdel King House
-
Sam Gilliam House
-
Croissant Park Administration Building
-
Link Trainer Building
-
Lock No. 1, North New River Canal
-
Nyberg-Swanson House
-
John and Elizabeth Shaw Sundy House
-
Marina Historic District
-
J. B. Evans House
-
Delray Beach Seaboard Air Line Railway Station

Runway info

Runway 15 / 33
 length1502m (4928ft)
 bearing140° / 320°
 width46m (150ft)
 surfaceasphalt
 displ threshold154m (505ft) / 106m (348ft)
Runway 6 / 24
 length1220m (4003ft)
 bearing55° / 235°
 width46m (150ft)
 surfaceasphalt
Runway 10 / 28
 length1066m (3497ft)
 bearing97° / 277°
 width30m (100ft)
 surfaceasphalt

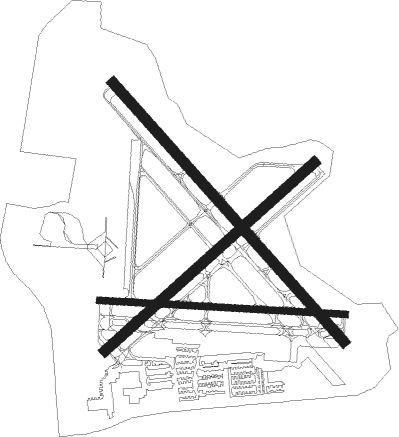

Airport layout


Taxiway locations

 A  B  C  D  E  F  G  G1
 G3  G4  G5  K  L  M
Parking locations

 American  Avionic  DAHER  Goodyear  Hangar  Hangars  Helicopter  Mach
 Ramp  Sheltair  West

Nearby beacons

codeidentifierdistbearingfrequency
FXPRAIZ (FT LAUDERDALE) NDB10.7252°221
FLLFORT LAUDERDALE VOR/DME10.8198°114.40
PBIPALM BEACH VORTAC263°115.70
DHPDOLPHIN (MIAMI) VORTAC29.7208°113.90
VKZVIRGINIA KEY VOR/DME29.8185°117.10
UTXUNITED NDB41.4341°405
PHKPAHOKEE VOR/DME44.7313°115.40
HSTHOMESTEAD TACAN47.7199°108.20
ZBVBIMINI VORTAC54.8124°116.70

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW06
 FEALX1213mi27°
 GABOW1160mi109°
 MHITO1188mi227°
 BNGOS162mi283°
 HURCN1153mi313°
 VACAY176mi325°
RW10
 FEALX1213mi27°
 GABOW1160mi109°
 MHITO1188mi227°
 BNGOS162mi283°
 HURCN1153mi313°
 VACAY176mi325°
RW15
 FEALX1213mi27°
 GABOW1160mi109°
 MHITO1188mi227°
 BNGOS162mi283°
 HURCN1153mi313°
 VACAY176mi325°
RW24
 FEALX1213mi27°
 GABOW1160mi109°
 MHITO1188mi227°
 BNGOS162mi283°
 HURCN1153mi313°
 VACAY176mi325°
RW28
 FEALX1213mi27°
 GABOW1160mi109°
 MHITO1188mi227°
 BNGOS162mi283°
 HURCN1153mi313°
 VACAY176mi325°
RW33
 FEALX1213mi27°
 GABOW1160mi109°
 MHITO1188mi227°
 BNGOS162mi283°
 HURCN1153mi313°
 VACAY176mi325°

STAR starting pointsdistanceinbound heading
ALL
 DVALL365.050°
 BHHIA149.766°
 TEEKY156.892°
 FORTL966.993°
 CPTAN160.6179°
 BLUFI441.6203°
 KYAKS147.9303°
 OLAHS142.8306°
 DEKAL735.1310°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW15ATONE (120°)ATONE
OGOYY (6mi, 76°) 2000ft
 RNAVOGOYY 2000ft
JIMNY (6mi, 140°) 2000ft
KPMP (7mi, 140°) 56ft
(4873mi, 108°) 279ft
KUCEP (4869mi, 288°) 2100ft
KUCEP (turn)
RW24HEATT (214°)HEATT
TUYVO (7mi, 172°) 2700ft
RW24MRLIN (234°)MRLIN
TUYVO (12mi, 232°) 2700ft
 RNAVTUYVO 2700ft
CIVOV (6mi, 236°) 2000ft
KPMP (6mi, 235°) 57ft
(4873mi, 108°) 319ft
ECOYI (4874mi, 288°)
KICKZ (9mi, 255°) 2000ft
KICKZ (turn)
RW33QEPRO (350°)QEPRO
RIMZY (6mi, 51°) 2500ft
 RNAVRIMZY 2500ft
WAKED (6mi, 320°) 1600ft
KPMP (5mi, 319°) 66ft
(4873mi, 108°) 265ft
JIMNY (4877mi, 288°)
ATONE (10mi, 287°) 2100ft
ATONE (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BHHIA1GRACKVHFright224 (44)°DME 12.0miICAO rules
BHHIA1HULKYVHFright226 (46)°DME 10.0miICAO rules
BHHIA1PYREXVHFright225 (45)°DME 10.0miICAO rules
BLUFI4LEBURVHFleft10 (190)°< 17999ftDME 8.0miICAO rules
CPTAN1BORRDVHFleft346 (166)°DME 10.0miICAO rules
CPTAN1CPTANVHFleft341 (161)°DME 10.0miICAO rules
CPTAN1FALTIVHFleft346 (166)°DME 10.0miICAO rules
CPTAN1JOEYYVHFright346 (166)°DME 10.0miICAO rules
DEKAL7DEKALVHFleft121 (301)°< 60000ftDME 4.0miICAO rules
DEKAL7MENDLVHFright160 (340)°DME 10.0miICAO rules
DEKAL7RAJAYVHFleft298 (118)°DME 10.0miICAO rules
DEKAL7ZBVNDBright122 (302)°< 60000ftDME 8.0miICAO rules
DVALL3CARNUVHFleft217 (37)°< 17999ft1.0min timedICAO rules
DVALL3WEVERVHFright248 (68)°1.0min timedICAO rules
FORTL9BANTYVHFleft282 (102)°DME 8.0miICAO rules
FORTL9FORTLVHFleft302 (122)°DME 4.0miICAO rules
FORTL9RSWNDBright321 (141)°1.0min timedICAO rules
OLAHS1IRRISVHFright186 (6)°DME 12.0miICAO rules
OLAHS1RAJAYVHFleft298 (118)°DME 10.0miICAO rules
OLAHS1SOCKIVHFright119 (299)°DME 10.0miICAO rules
OLAHS1SOFARVHFright110 (290)°DME 10.0miICAO rules
OLAHS1WEBABVHFright186 (6)°DME 12.0miICAO rules
OLAHS1ZQANDBright118 (298)°DME 11.0miICAO rules
TEEKY1CLEOOVHFright348 (168)°DME 11.0miICAO rules
TEEKY1JASBOVHFright319 (139)°DME 12.0miICAO rules
TEEKY1YANCIVHFright313 (133)°DME 10.0miICAO rules
*) magnetic outbound (inbound) holding course
