Airports for X-Plane

San Antonio - San Antonio Intl

Airport details

CountryUnited States of America
StateTexas
RegionK4
AirspaceHouston Oceanic Ctr
MunicipalitySan Antonio
Elevation809ft (247m)
TimezoneGMT -6
Coordinates29.53396, -98.46906
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKSAT
IATA codeSAT
FAA codeSAT

Communication

San Antonio Intl ATIS118.900
San Antonio Intl UNICOM122.950
San Antonio Intl Clearance DEL126.700
San Antonio Intl Ground Control121.900
San Antonio Intl Tower119.800
San Antonio Intl Approach/Departure118.050
San Antonio Intl Approach/Departure127.100
San Antonio Intl Approach/Departure125.100

Approach frequencies

ILS-cat-IIRW13R110.918.00mi
ILS-cat-IRW31L110.918.00mi
ILS-cat-IRW04109.718.00mi
3° GSRW13R110.918.00mi
3° GSRW31L110.918.00mi
3° GSRW04109.718.00mi
Nearby Points of Interest:
Fence at Alamo Cement Company
-
Fort Sam Houston
-
San Antonio Military Medical Center
-
David J. and May Bock Woodward House
-
Aurora Apartment Hotel
-
Hipolito F. Garcia Federal Building and United States Courthouse
-
Johann and Anna Heidgen House
-
Alamo Plaza Historic District
-
Jeremiah Dashiell House
-
Main and Military Plazas Historic District
-
Prospect Hill Missionary Baptist Church
-
Bexar County Courthouse
-
Acequia Madre de Valero
-
Otto Bombach House
-
Monastery of Our Lady of Charity
-
Alamo Methodist Church
-
Anton Wulff House
-
Yturri-Edmunds House
-
Administration Building
-
Randolph Field Historic District
-
Ethel Wilson Harris House
-
Hangar 9, Brooks Air Force Base
-
Stinson Municipal Airport
-
State Highway 3-A Bridge at Cibolo Creek
-
Comal Power Plant

Runway info

Runway 13L / 31R
 length1685m (5528ft)
 bearing128° / 308°
 width30m (100ft)
 surfaceasphalt
 blast zone46m (151ft) / 0m (0ft)
Runway 13R / 31L
 length2593m (8507ft)
 bearing128° / 308°
 width46m (150ft)
 surfaceconcrete
 blast zone61m (200ft) / 61m (200ft)
Runway 4 / 22
 length2595m (8514ft)
 bearing45° / 225°
 width46m (150ft)
 surfaceconcrete
 blast zone61m (200ft) / 122m (400ft)

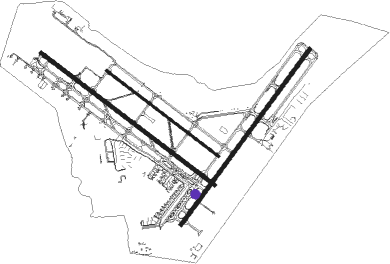

Airport layout - taxiway location N3


Taxiway locations

 A  B  D  E  F  G  G1  G2
 G3  H  J  K  M  N  N1  N13
 N2  N3  N6  N7  N8  Q  Q1  R
 S  T  V  W  Y  Z
Parking locations

 AERIA  AHR  Cargo  Cessna  Customs  Cutter  FedEx  Gate
 Hanger  Holt  Lewis  Million  Ramp  Signature  Skyplane  ST
 Tesoro  UPS

Nearby beacons

codeidentifierdistbearingfrequency
SATSAN ANTONIO VORTAC6.64°116.80
ANALAMO (SAN ANTONIO) NDB6.8306°368
RNDRANDOLPH VORTAC9.695°112.30
KSYKELLY (SAN ANTONIO) TACAN10.3218°112
DHKRANDOLPH TACAN10.589°109.90
SSFSTINSON (SAN ANTONIO) VOR16.6175°108.40
HHHDEVINE NDB34.2230°359
RUGARYS (AUSTIN) NDB37.251°272
STVSTONEWALL VORTAC42.2341°113.80
CSICENTER POINT (KERRVILLE) VORTAC45.3298°117.50
CWKCENTEX VORTAC70.448°112.80

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
ALL
 ALAMO3121mi8°
 THX4112mi148°
 BOWIE7, MILET4133mi205°
 LEJON449mi312°

STAR starting pointsdistanceinbound heading
ALL
 LEMIG133.43°
 CSI245.3118°
 STV142.2161°
RW04
 BRAUN326.9236°
RW13 (ALL)
 BRAUN326.9236°
RW22
 BRAUN326.9236°
RW31 (ALL)
 BRAUN326.9236°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW04-YHARDD (43°)HARDD 3500ft
 RNAVHARDD 3500ft
RESOC (5mi, 44°) 3500ft
NADBE (3mi, 45°) 2500ft
KSAT (6mi, 41°) 842ft
(5847mi, 107°) 986ft
BISGE (5843mi, 287°)
SHEPE (17mi, 37°) 3500ft
SHEPE (turn)
RW04-ZBENEY (120°)BENEY
NUPGY (22mi, 128°)
ZISEN (8mi, 156°) 4000ft
WUNER (2mi, 133°) 3500ft
HULOK (3mi, 79°) 2500ft
ZEPUT (2mi, 45°) 2000ft
RW04-ZBRAUN (236°)BRAUN
KUBGE (14mi, 225°)
JOKBA (12mi, 225°) 6000ft
CIXEX (3mi, 224°) 6000ft
YIRUD (4mi, 224°) 3600ft
JIREK (3mi, 260°) 3600ft
HULOK (4mi, 347°) 2500ft
ZEPUT (2mi, 45°) 2000ft
RW04-ZHARDD (43°)HARDD
NUYVO (5mi, 44°) 3500ft
HULOK (3mi, 45°) 2500ft
ZEPUT (2mi, 45°) 2000ft
RW04-ZSAT (184°)SAT
COTVI (4mi, 227°) 6000ft
YEVUP (2mi, 227°) 6000ft
CUGBO (4mi, 227°) 4000ft
ZISEN (3mi, 192°) 4000ft
WUNER (2mi, 133°) 3500ft
HULOK (3mi, 79°) 2500ft
ZEPUT (2mi, 45°) 2000ft
 RNAVZEPUT 2000ft
KSAT (4mi, 39°) 829ft
BISGE (6mi, 48°)
SHEPE (17mi, 37°) 3500ft
SHEPE (turn)
RW13RYHASDO (127°)HASDO 3500ft
RW13RYJATAX (148°)JATAX
HASDO (5mi, 225°) 3500ft
RW13RYWERUD (108°)WERUD
HASDO (5mi, 45°) 3500ft
 RNAVHASDO 3500ft
YEBUP (6mi, 128°) 2800ft
KSAT (7mi, 126°) 867ft
(5847mi, 107°) 1107ft
POYIG (5843mi, 287°)
EMBOW (14mi, 174°) 3100ft
EMBOW (turn)
RW13RZCRISS (199°)CRISS 6000ft
ITLIW (6mi, 277°) 4500ft
ALAMO (4mi, 208°) 2700ft
OSWOD (2mi, 128°) 2200ft
RW13RZELKAY (3°)ELKAY 6000ft
HUKRA (6mi, 322°) 4100ft
CEXOD (6mi, 320°) 4100ft
OSWOD (4mi, 52°) 2200ft
RW13RZMEDIN (122°)MEDIN 9000ft
REUBE (8mi, 110°) 4000ft
HASDO (7mi, 128°) 4000ft
ALAMO (6mi, 128°) 2700ft
OSWOD (2mi, 128°) 2200ft
 RNAVOSWOD 2200ft
KSAT (5mi, 126°) 867ft
POYIG (6mi, 130°)
EMBOW (14mi, 174°) 3100ft
EMBOW (turn)
RW22-YWATBA (226°)WATBA 3500ft
 RNAVWATBA 3500ft
EMLIW (7mi, 225°) 2600ft
ZIPEL (3mi, 225°) 1500ft
KSAT (3mi, 232°) 809ft
(5847mi, 107°) 970ft
IMIKE (5852mi, 287°)
EMBOW (16mi, 137°) 3100ft
EMBOW (turn)
RW22-ZBRAUN (236°)BRAUN
ZALYO (15mi, 243°) 3500ft
UWEZY (7mi, 225°) 2100ft
ZIGDA (1mi, 225°) 1700ft
RW22-ZELKAY (3°)ELKAY 6000ft
JILIL (7mi, 37°) 2500ft
WUDEL (5mi, 45°) 2100ft
UWEZY (4mi, 307°) 2100ft
ZIGDA (1mi, 225°) 1700ft
RW22-ZMEDIN (122°)MEDIN 9000ft
JUMDI (14mi, 103°) 6000ft
WAFSY (7mi, 119°) 3000ft
HUKAX (6mi, 120°) 2500ft
ZOLUR (2mi, 146°) 2100ft
ZIGDA (1mi, 200°) 1700ft
 RNAVZIGDA 1700ft
KSAT (4mi, 231°) 809ft
IMIKE (7mi, 221°)
EMBOW (16mi, 137°) 3100ft
EMBOW (turn)
RW31LYFENPI (329°)FENPI
ROTTS (5mi, 45°) 3100ft
RW31LYROTTS (309°)ROTTS 3100ft
RW31LYSHRLE (289°)SHRLE
ROTTS (5mi, 226°) 3100ft
 RNAVROTTS 3100ft
POYIG (8mi, 308°) 2600ft
KSAT (6mi, 310°) 838ft
(5847mi, 107°) 1207ft
ALAMO (5852mi, 287°) 3000ft
ALAMO (turn)
RW31LZBENEY (120°)BENEY
ISEDE (22mi, 128°)
JEGBO (11mi, 128°) 6000ft
ODXUR (6mi, 128°) 3500ft
UMIYU (4mi, 80°) 3500ft
ZUBOX (3mi, 346°) 2700ft
UPTEY (2mi, 308°) 2200ft
RW31LZBRAUN (236°)BRAUN
HUNUV (15mi, 202°)
ITEPE (5mi, 202°) 6000ft
HUPAT (4mi, 226°) 4300ft
OWNOL (3mi, 262°) 4300ft
WERVO (4mi, 275°) 3200ft
ZUBOX (2mi, 291°) 2700ft
UPTEY (2mi, 308°) 2200ft
RW31LZTROOP (213°)TROOP 6000ft
JISDA (7mi, 166°) 5000ft
WIDUD (3mi, 166°) 4000ft
HUGUK (2mi, 197°) 3000ft
UPTEY (3mi, 267°) 2200ft
RW31LZWENDL (3°)WENDL
HOVOG (10mi, 28°) 5000ft
UMIYU (5mi, 28°) 3500ft
ZUBOX (3mi, 346°) 2700ft
UPTEY (2mi, 308°) 2200ft
RW31LZWIMIN (309°)WIMIN
ZUBOX (6mi, 308°) 2700ft
UPTEY (2mi, 308°) 2200ft
 RNAVUPTEY 2200ft
KSAT (5mi, 310°) 838ft
HASDO (13mi, 307°) 3000ft
REUBE (7mi, 308°) 4200ft
REUBE (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
CSI2CSINDBleft280 (100)°1.0min timedICAO rules
LEMIG1LEMIGVHFright175 (355)°< 17999ft1.0min timedICAO rules
MARCS1CRAYSVHFright79 (259)°< 17999ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
