South Bend - South Bend Intl
Airport details
| Country | United States of America |
| State | Indiana |
| Region | K5 |
| Airspace | Chicago Ctr |
| Municipality | South Bend |
| Elevation | 795ft (242m) |
| Timezone | GMT -5 |
| Coordinates | 41.70822, -86.31734 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | KSBN |
| IATA code | SBN |
| FAA code | SBN |
Communication
| South Bend Intl ATIS | 120.675 |
| South Bend Intl CTAF | 118.900 |
| South Bend Intl UNICOM | 122.950 |
| South Bend Intl Clearance DEL | 121.900 |
| South Bend Intl Ground Control | 121.700 |
| South Bend Intl Tower | 118.900 |
| South Bend Intl Approach/Departure | 118.550 |
| South Bend Intl Approach/Departure | 124.100 |
| South Bend Intl Approach/Departure | 132.050 |
Approach frequencies
| ILS-cat-II | RW27L | 109.3 | 18.00mi |
| ILS-cat-I | RW09R | 109.3 | 18.00mi |
| 3° GS | RW27L | 109.3 | 18.00mi |
| 3° GS | RW09R | 109.3 | 18.00mi |
Nearby Points of Interest:
St. Joseph County Infirmary
-Muessel-Drewry Brewery
-Wertz-Bestle Farm
-Children's Dispensary
-Chapin Park Historic District
-West LaSalle Avenue Historic District
-Joseph D. Oliver House
-Horatio Chapin House
-Samuel Leeper Jr. House
-St. Casimir Parish Historic District
-West Washington Historic District
-St. Casimir Parish, South Bend
-Tippecanoe Place
-Kelley-Fredrickson House and Office Building
-Central High School & Boys Vocational School
-Bond Hall
-Berteling Building
-Morey-Lampert House
-Commercial Building
-Morey House
-I & M Building
-Hager House
-John G. Kerr Company
-Knights of Columbus-Indiana Club
-Tower Building

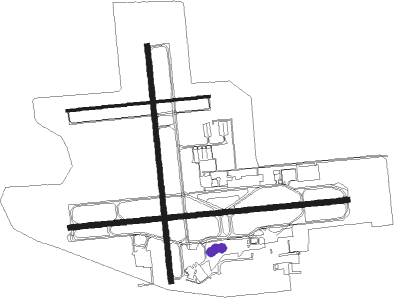

Runway info
Runway 18 / 36  | ||
| length | 2167m (7110ft) | |
| bearing | 178° / 358° | |
| width | 46m (151ft) | |
| surface | asphalt | |
| blast zone | 46m (151ft) / 46m (151ft) | |
| Runway 9R / 27L | ||
| length | 2558m (8392ft) | |
| bearing | 89° / 269° | |
| width | 46m (151ft) | |
| surface | asphalt | |
| blast zone | 46m (151ft) / 69m (226ft) | |
| Runway 9L / 27R | ||
| length | 1308m (4291ft) | |
| bearing | 89° / 269° | |
| width | 23m (75ft) | |
| surface | asphalt | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| GIJ | GIPPER (NILES) VORTAC | 3.6 | 359° | 115.40 |
| SB | MISHA (SOUTH BEND) NDB | 4.4 | 92° | 341 |
| GSH | GOSHEN VORTAC | 17 | 122° | 113.70 |
| OXI | KNOX VOR/DME | 27.5 | 221° | 115.60 |
| ELX | KEELER VOR/DME | 27.6 | 24° | 116.60 |
| VP | SEDLY (VALPARAISO) NDB | 29.5 | 245° | 212 |
| IRS | STURGIS NDB | 40 | 83° | 382 |
| AZ | AUSTN (KALAMAZOO) NDB | 43.4 | 62° | 371 |
| OLK | WEBSTER LAKE VOR | 46.1 | 119° | 110.40 |
| PMM | PULLMAN VOR/DME | 46.4 | 16° | 112.10 |
| AZO | KALAMAZOO VOR/DME | 46.6 | 55° | 109 |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW09L | MAPER (127°) | MAPER LMSFX (15mi, 145°) 2400ft WASIK (6mi, 178°) 2400ft |
| RW09L | OXI (41°) | OXI MRRTE (18mi, 15°) 2400ft WASIK (6mi, 358°) 2400ft |
| RNAV | WASIK 2400ft EEJAY (6mi, 89°) 2400ft CEYYA (2mi, 89°) 1240ft KSBN (3mi, 94°) 828ft (5240mi, 116°) 2000ft LASEA (5241mi, 296°) 2400ft LASEA (turn) | |
| RW09R | MAPER (127°) | MAPER AROYA (16mi, 148°) 2600ft ZAPPY (6mi, 178°) 2600ft |
| RW09R | NOMES (45°) | NOMES YIBUC (6mi, 316°) 2600ft ZAPPY (6mi, 358°) 2600ft |
| RW09R | ZAPPY (88°) | ZAPPY 6000ft ZAPPY (turn) 2600ft |
| RNAV | ZAPPY 2600ft ANUCO (6mi, 89°) 2600ft KSBN (6mi, 87°) 845ft (5240mi, 116°) 990ft ISUYO (5228mi, 296°) 2600ft ISUYO (turn) | |
| RW18 | JJANN (231°) | JJANN LASEA (15mi, 269°) 2500ft |
| RW18 | MAPER (127°) | MAPER LASEA (19mi, 98°) 2500ft |
| RNAV | LASEA 2500ft TYLRR (10mi, 178°) 2400ft KSBN (6mi, 177°) 848ft (5240mi, 116°) 1048ft DRNAA (5240mi, 296°) 2400ft DRNAA (turn) | |
| RW27L | GSH (302°) | GSH ISUYO (11mi, 351°) 2400ft |
| RW27L | ISUYO (270°) | ISUYO 6000ft ISUYO (turn) 2400ft |
| RW27L | JJANN (231°) | JJANN NACIB (11mi, 202°) 3000ft ISUYO (5mi, 179°) 2400ft |
| RNAV | ISUYO 2400ft GOCEY (6mi, 269°) 2400ft KSBN (6mi, 271°) 822ft (5240mi, 116°) 1030ft TOKOC (5252mi, 296°) 2600ft TOKOC (turn) | |
| RW27R | GSH (302°) | GSH PAWFX (12mi, 348°) 2500ft |
| RW27R | JJANN (231°) | JJANN PAWFX (16mi, 198°) 2500ft |
| RNAV | PAWFX 2500ft COIRO (6mi, 269°) 2400ft TROLR (2mi, 269°) 1200ft KSBN (3mi, 263°) 823ft (5240mi, 116°) 1140ft WASIK (5252mi, 296°) 2400ft WASIK (turn) | |
| RW36 | GSH (302°) | GSH DRNAA (13mi, 272°) 2400ft |
| RW36 | NOMES (45°) | NOMES DRNAA (8mi, 86°) 2400ft |
| RNAV | DRNAA 2400ft ETHNL (6mi, 358°) 2000ft KSBN (4mi, 360°) 809ft LASEA (16mi, 358°) 2400ft LASEA (turn) |
