Airports for X-Plane

Santa Ana - Orange County - John Wayne

Airport details

CountryUnited States of America
StateCalifornia
RegionK2
AirspaceLos Angeles Ctr
MunicipalityOrange County
Elevation56ft (17m)
TimezoneGMT -8
Coordinates33.67567, -117.86823
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKSNA
IATA codeSNA
FAA codeSNA

Communication

Orange County - John Wayne ATIS126.000
Orange County - John Wayne CTAF126.800
Orange County - John Wayne UNICOM122.950
Orange County - John Wayne CLEARANCE DELIVERY118.000
Orange County - John Wayne GROUND WEST120.800
Orange County - John Wayne GROUND EAST132.250
Orange County - John Wayne TOWER 02R/20L119.900
Orange County - John Wayne TOWER 02L/20R126.800
Orange County - John Wayne SOCAL ApproachROACH121.300
Orange County - John Wayne SOCAL DepartureARTURE132.700
Orange County - John Wayne SOCAL DepartureARTURE128.100

Approach frequencies

LDARW20R108.318.00mi
ILS-cat-IRW20R111.7518.00mi
3° GSRW20R111.7518.00mi
Nearby Points of Interest:
Santa Ana Army Air Base
-
Marine Corps Air Station Tustin
-
Santora Building
-
Builders Exchange Building
-
Odd Fellows Hall
-
USS YMS-328
-
Pacific Electric Sub-Station No. 14
-
Old Orange County Courthouse
-
Howe-Waffle House and Carriage House
-
Balboa Pavilion
-
Santa Ana Fire Station Headquarters No. 1
-
Lovell Beach House
-
Frances Packing House
-
Old Towne Orange Historic District
-
Cypress Street Schoolhouse
-
C. Z. Culver House
-
First Baptist Church of Orange
-
Lewis Ainsworth House
-
Helme-Worthy Store and Residence
-
St. Francis by-the-Sea American Catholic Church
-
Irvine Park
-
Irvine Ranch Natural Landmarks
-
Jose Serrano Adobe
-
Phillip Ackley Stanton House
-
Elephant Packing House

Runway info

Runway 2L / 20R
 length1740m (5709ft)
 bearing32° / 212°
 width46m (150ft)
 surfaceasphalt
 blast zone255m (837ft) / 61m (200ft)
Runway 2R / 20L
 length881m (2890ft)
 bearing32° / 212°
 width23m (75ft)
 surfaceasphalt
 blast zone123m (404ft) / 46m (151ft)

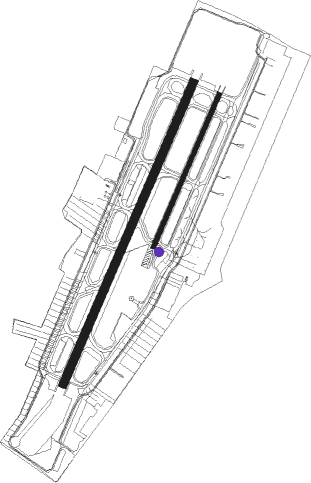

Airport layout - taxiway location H


Taxiway locations

 A  B  C  D  E  F  G  H
 J  K  L
Parking locations

 ACI  Atlantic  Cargo  East  Executive  Gate  Martin  North
 South  Southwest  Transient  West

Nearby beacons

codeidentifierdistbearingfrequency
ELBEL TORO (SANTA ANA) VOR/DME6.890°117.20
SLISEAL BEACH (LOS ALAMITOS) VORTAC11.3300°115.70
PDZPARADISE (ONTARIO) VORTAC22.354°112.20
POMPOMONA VORTAC24.511°110.40
RALRIVERSIDE VOR26.756°112.40
LAXLOS ANGELES VORTAC32.1295°113.60
RIVMARCH (RIVERSIDE) TACAN32.669°113
SXCSANTA CATALINA VORTAC32.9241°111.40
SBPETIS (SAN BERNARDINO) NDB33.953°397
NFGCAMP PENDLETON (OCEANSIDE TACAN34.1130°111.80
OCNOCEANSIDE VORTAC34.5134°115.30
HDFHOMELAND (RIVERSIDE) VOR34.682°113.40
SMOSANTA MONICA VOR/DME35.5300°110.80
VNYVAN NUYS VOR/DME45.2311°113.10
NUCSAN CLEMENTE TACAN52.8228°117.60
NSDBEAVER (SAN DIEGO) TACAN55.7216°113.90
PMDPALMDALE VORTAC58.2348°114.50
VCVVICTORVILLE VOR/DME6028°109.05
NKXMIRAMAR (SAN DIEGO) TACAN60.2138°109.60
MZBMISSION BAY (SAN DIEGO) VORTAC62.6144°117.80
NZYNORTH ISLAND (SAN DIEGO) TACAN67146°117

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
ALL
 ANAHM165mi290°
RW02L
 HOBOW394mi43°
 ELB485mi92°
 PIGGN287mi122°
 MIKAA132mi256°
 HAWWC363mi292°
 IRV511mi300°
RW20R
 FINZZ394mi43°
 MUSEL885mi92°
 PIGGN2, STAYY387mi122°
 HAWWC363mi292°
 CHANL3107mi294°
 HHERO360mi313°

STAR starting pointsdistanceinbound heading
ALL
 TANDY549.7112°
 KAYOH715.2249°
 DSNEE522.6251°
 ROOBY330.3254°
RW02L
 TILLT245.783°
 OHSEA237.184°
RW20R
 TILLT245.783°
 OHSEA237.184°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW02LZFYTRR (302°)FYTRR 4000ft
ARMBR (5mi, 258°) 4000ft
OSOYI (3mi, 258°) 3200ft
NEWPO (5mi, 317°) 1600ft
RW02LZMINOE (32°)MINOE 3000ft
NEWPO (6mi, 32°) 1600ft
 RNAVNEWPO 1600ft
KSNA (5mi, 33°) 111ft
(6780mi, 106°) 800ft
SLI (6787mi, 286°) 2600ft
SLI (turn)
RW20RZDSNEE (251°)DSNEE 8000ft
BONVY (7mi, 276°) 6000ft
DEKRT (5mi, 270°) 4600ft
AMELE (2mi, 270°) 4200ft
EHVOX (3mi, 270°) 3300ft
FEBTA (4mi, 212°) 2200ft
WEMDO (turn) 1900ft
ZETOV (2mi, 212°) 1400ft
RW20RZKLEVR (105°)KLEVR 5000ft
MNNIE (2mi, 32°) 4400ft
KLIPP (3mi, 32°) 3400ft
CALIT (4mi, 106°) 1600ft
ZETOV (turn) 1400ft
 RNAVZETOV 1400ft
KSNA (5mi, 212°) 93ft
MINOE (12mi, 212°) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DSNEE5LITNGVHFleft84 (264)°DME 10.0miICAO rules
DSNEE5SCROWVHFleft59 (239)°DME 10.0miICAO rules
ROOBY3LITNGVHFleft84 (264)°DME 10.0miICAO rules
ROOBY3SCROWVHFleft59 (239)°DME 10.0miICAO rules
*) magnetic outbound (inbound) holding course
