Airports for X-Plane offers a convenient way to explore airports and their related communication information for the X-Plane flight simulator. It only uses data from the X-Plane flight simulator itself, and is therefore more reliable than the data that comes from real aviation websites. You can search for airports by using the ICAO code, or browse for airports per country and state. The information displayed is categorized by airport details, runway information, airport communication, approach frequencies (ILS and Glidepath details), details of nearby beacons, SIDs, STARs and approach procedures.

nation outskirts bus tarmac traffic gravel aerodrome airspeed metro public transport airfield airborne regional aircraft carrier terminal aircraft landing area downtown helicopters consulate

Airports for X-Plane

Santa Ana - Orange County - John Wayne

Airport details

CountryUnited States of America
StateCalifornia
RegionK2
AirspaceLos Angeles Ctr
MunicipalityOrange County
Elevation56ft (17m)
TimezoneGMT -8
Coordinates33.67567, -117.86823
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKSNA
IATA codeSNA
FAA codeSNA

Communication

Orange County - John Wayne ATIS126.000
Orange County - John Wayne CTAF126.800
Orange County - John Wayne UNICOM122.950
Orange County - John Wayne CLEARANCE DELIVERY118.000
Orange County - John Wayne GROUND WEST120.800
Orange County - John Wayne GROUND EAST132.250
Orange County - John Wayne TOWER 02R/20L119.900
Orange County - John Wayne TOWER 02L/20R126.800
Orange County - John Wayne SOCAL ApproachROACH121.300
Orange County - John Wayne SOCAL DepartureARTURE132.700
Orange County - John Wayne SOCAL DepartureARTURE128.100

Approach frequencies

LDARW20R108.318.00mi
ILS-cat-IRW20R111.7518.00mi
3° GSRW20R111.7518.00mi
Nearby Points of Interest:
Santa Ana Army Air Base
-
Marine Corps Air Station Tustin
-
Santora Building
-
Builders Exchange Building
-
Odd Fellows Hall
-
USS YMS-328
-
Pacific Electric Sub-Station No. 14
-
Old Orange County Courthouse
-
Howe-Waffle House and Carriage House
-
Balboa Pavilion
-
Santa Ana Fire Station Headquarters No. 1
-
Lovell Beach House
-
Frances Packing House
-
Old Towne Orange Historic District
-
Cypress Street Schoolhouse
-
C. Z. Culver House
-
First Baptist Church of Orange
-
Lewis Ainsworth House
-
Helme-Worthy Store and Residence
-
St. Francis by-the-Sea American Catholic Church
-
Irvine Park
-
Irvine Ranch Natural Landmarks
-
Jose Serrano Adobe
-
Phillip Ackley Stanton House
-
Elephant Packing House

Runway info

Runway 2L / 20R
 length1740m (5709ft)
 bearing32° / 212°
 width46m (150ft)
 surfaceasphalt
 blast zone255m (837ft) / 61m (200ft)
Runway 2R / 20L
 length881m (2890ft)
 bearing32° / 212°
 width23m (75ft)
 surfaceasphalt
 blast zone123m (404ft) / 46m (151ft)

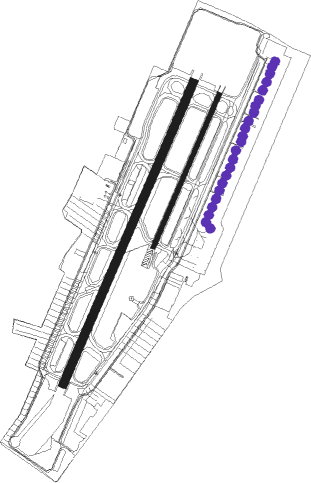

Airport layout - parking location Gate


Taxiway locations

 A  B  C  D  E  F  G  H
 J  K  L
Parking locations

 ACI  Atlantic  Cargo  East  Executive  Gate  Martin  North
 South  Southwest  Transient  West

Nearby beacons

codeidentifierdistbearingfrequency
ELBEL TORO (SANTA ANA) VOR/DME6.890°117.20
SLISEAL BEACH (LOS ALAMITOS) VORTAC11.3300°115.70
PDZPARADISE (ONTARIO) VORTAC22.354°112.20
POMPOMONA VORTAC24.511°110.40
RALRIVERSIDE VOR26.756°112.40
LAXLOS ANGELES VORTAC32.1295°113.60
RIVMARCH (RIVERSIDE) TACAN32.669°113
SXCSANTA CATALINA VORTAC32.9241°111.40
SBPETIS (SAN BERNARDINO) NDB33.953°397
NFGCAMP PENDLETON (OCEANSIDE TACAN34.1130°111.80
OCNOCEANSIDE VORTAC34.5134°115.30
HDFHOMELAND (RIVERSIDE) VOR34.682°113.40
SMOSANTA MONICA VOR/DME35.5300°110.80
VNYVAN NUYS VOR/DME45.2311°113.10
NUCSAN CLEMENTE TACAN52.8228°117.60
NSDBEAVER (SAN DIEGO) TACAN55.7216°113.90
PMDPALMDALE VORTAC58.2348°114.50
VCVVICTORVILLE VOR/DME6028°109.05
NKXMIRAMAR (SAN DIEGO) TACAN60.2138°109.60
MZBMISSION BAY (SAN DIEGO) VORTAC62.6144°117.80
NZYNORTH ISLAND (SAN DIEGO) TACAN67146°117

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
ALL
 ANAHM165mi290°
RW02L
 HOBOW394mi43°
 ELB485mi92°
 PIGGN287mi122°
 MIKAA132mi256°
 HAWWC363mi292°
 IRV511mi300°
RW20R
 FINZZ394mi43°
 MUSEL885mi92°
 PIGGN2, STAYY387mi122°
 HAWWC363mi292°
 CHANL3107mi294°
 HHERO360mi313°

STAR starting pointsdistanceinbound heading
ALL
 TANDY549.7112°
 KAYOH715.2249°
 DSNEE522.6251°
 ROOBY330.3254°
RW02L
 TILLT245.783°
 OHSEA237.184°
RW20R
 TILLT245.783°
 OHSEA237.184°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW02LZFYTRR (302°)FYTRR 4000ft
ARMBR (5mi, 258°) 4000ft
OSOYI (3mi, 258°) 3200ft
NEWPO (5mi, 317°) 1600ft
RW02LZMINOE (32°)MINOE 3000ft
NEWPO (6mi, 32°) 1600ft
 RNAVNEWPO 1600ft
KSNA (5mi, 33°) 111ft
(6780mi, 106°) 800ft
SLI (6787mi, 286°) 2600ft
SLI (turn)
RW20RZDSNEE (251°)DSNEE 8000ft
BONVY (7mi, 276°) 6000ft
DEKRT (5mi, 270°) 4600ft
AMELE (2mi, 270°) 4200ft
EHVOX (3mi, 270°) 3300ft
FEBTA (4mi, 212°) 2200ft
WEMDO (turn) 1900ft
ZETOV (2mi, 212°) 1400ft
RW20RZKLEVR (105°)KLEVR 5000ft
MNNIE (2mi, 32°) 4400ft
KLIPP (3mi, 32°) 3400ft
CALIT (4mi, 106°) 1600ft
ZETOV (turn) 1400ft
 RNAVZETOV 1400ft
KSNA (5mi, 212°) 93ft
MINOE (12mi, 212°) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DSNEE5LITNGVHFleft84 (264)°DME 10.0miICAO rules
DSNEE5SCROWVHFleft59 (239)°DME 10.0miICAO rules
ROOBY3LITNGVHFleft84 (264)°DME 10.0miICAO rules
ROOBY3SCROWVHFleft59 (239)°DME 10.0miICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
