Airports for X-Plane

Trenton - Trenton Mercer

Airport details

CountryUnited States of America
StateNew Jersey
RegionK6
AirspaceWashington Ctr
MunicipalityEwing Township
Elevation208ft (63m)
TimezoneGMT -5
Coordinates40.28225, -74.81490
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKTTN
IATA codeTTN
FAA codeTTN

Communication

Trenton Mercer ATIS126.775
Trenton Mercer CTAF120.700
Trenton Mercer UNICOM122.950
Trenton Mercer Ground Control/Clearance DEL121.900
Trenton Mercer Tower120.700
Trenton Mercer PHILADELPHIA Approach/Departure123.800
Trenton Mercer PHILADELPHIA Approach/Departure128.400

Approach frequencies

ILS-cat-IRW06111.318.00mi
3° GSRW06111.318.00mi

Runway info

Runway 6 / 24
 length1830m (6004ft)
 bearing54° / 234°
 width46m (151ft)
 surfaceasphalt
Runway 16 / 34
 length1464m (4803ft)
 bearing138° / 318°
 width46m (151ft)
 surfaceasphalt

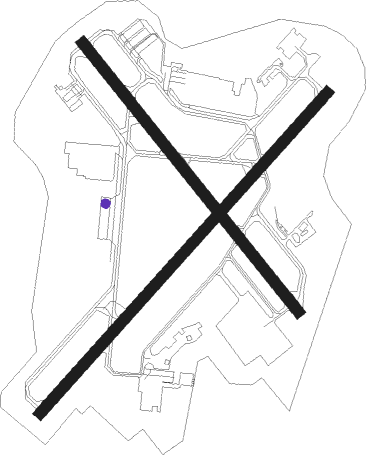

Airport layout - parking location 4


Taxiway locations

 A  B  C  D  D1  E  F  G
 H  J
Parking locations

 1  2  3  4  GA  Helo

Nearby beacons

codeidentifierdistbearingfrequency
ARDYARDLEY VOR/DME4.5253°108.20
RBVROBBINSVILLE VORTAC15.4104°113.80
SBJSOLBERG VOR/DME18.314°112.90
GXUMC GUIRE (WRIGHTSTOWN) VORTAC19.2141°110.60
INGAMBLER NDB23.5252°275
NELLAKEHURST TACAN25.8118°111.80
NELLAKEHURST NDB26.2116°396
COLCOLTS NECK VOR/DME3087°115.40
BWZBROADWAY (SCHOOLEY'S MT) VOR/DME31359°114.20
CATCHATHAM NDB32.640°254
CYNCOYLE VORTAC33140°113.40
PTWPOTTSTOWN VORTAC34.3265°116.50
FJCALLENTOWN VORTAC39.5305°117.50
MMMOREE (MORRISTOWN) NDB4239°392
STWSTILLWATER VOR/DME42.9356°109.60
ETXEAST TEXAS VOR/DME43.5289°110.20
TETORBY (TETERBORO) NDB44.153°214
OODWOODSTOWN VORTAC44.8217°112.80
MXEMODENA VORTAC44.9247°113.20
VCNCEDAR LAKE (MILLVILLE) VOR/DME45.2192°115.20
CRICANARSIE VOR/DME46.570°112.30
TEBTETERBORO VOR/DME48.353°108.40
SAXSPARTA VORTAC48.819°115.70
ACYATLANTIC CITY VORTAC50.8164°108.60
DQODUPONT (WILMINGTON) VORTAC51.4233°114
LGALA GUARDIA (NEW YORK) VOR/DME52.662°113.10
RNBRAINBOW (MILLVILLE) NDB53.9200°363
ILHADIN (WILMINGTON) NDB55.9229°248
LVZWILKES-BARRE VORTAC71.5319°111.60

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
STAR starting pointsdistanceinbound heading
ALL
 JIIMS3, VCN945.212°
 PAATS371.340°
 BUNTS2103.291°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW06-YHAMMA (319°)HAMMA
KULPE (5mi, 233°) 2300ft
COPIX (5mi, 308°) 1900ft
RW06-YHILOG (109°)HILOG
SICOB (4mi, 243°) 2300ft
COPIX (5mi, 134°) 1900ft
RW06-YZUBAX (52°)ZUBAX
COPIX (6mi, 54°) 1900ft
 RNAVCOPIX 1900ft
KTTN (6mi, 51°) 220ft
BIRKE (11mi, 56°) 2600ft
BIRKE (turn)
RW06-ZMENGE (28°)MENGE
ZUBAX (8mi, 345°) 2700ft
RW06-ZWACKI (85°)WACKI
ZUBAX (11mi, 122°) 2700ft
RW06-ZZUBAX (52°)ZUBAX 2700ft
 RNAVZUBAX 2700ft
COPIX (6mi, 54°) 1900ft
EMUNY (3mi, 54°) 840ft
KTTN (3mi, 47°) 220ft
(4713mi, 118°) 1500ft
ZUBAX (4720mi, 298°) 2700ft
ZUBAX (turn)
RW16AMIDY (138°)AMIDY 2700ft
RW16SBJ (194°)SBJ
AMIDY (13mi, 236°) 2700ft
RW16ZUVIV (102°)ZUVIV
AMIDY (16mi, 81°) 2700ft
 RNAVAMIDY 2700ft
HORDE (6mi, 138°) 1900ft
CULAV (3mi, 138°) 1060ft
KTTN (3mi, 137°) 268ft
(4713mi, 118°) 1500ft
ZUBAX (4720mi, 298°) 2700ft
ZUBAX (turn)
RW24-ZBIRKE (236°)BIRKE 2600ft
RW24-ZCASUB (217°)CASUB
BIRKE (5mi, 161°) 2600ft
RW24-ZWARRD (258°)WARRD
BIRKE (9mi, 285°) 2600ft
 RNAVBIRKE 2600ft
ZERPO (6mi, 234°) 1900ft
FEMVU (3mi, 234°) 1020ft
KTTN (3mi, 240°) 247ft
(4713mi, 118°) 579ft
ZUBAX (4720mi, 298°) 2700ft
ZUBAX (turn)
RW34CASVI (286°)CASVI
ZESIB (22mi, 271°) 2200ft
RW34HOLEY (2°)HOLEY
ZESIB (11mi, 46°) 2200ft
RW34ZESIB (319°)ZESIB 6000ft
ZESIB (turn) 2200ft
 RNAVZESIB 2200ft
HAMMA (6mi, 318°) 1800ft
GECEC (3mi, 318°) 880ft
KTTN (3mi, 320°) 224ft
(4713mi, 118°) 700ft
ZUBAX (4720mi, 298°) 2700ft
ZUBAX (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BUNTS2BUNTSVHFleft284 (104)°6001ft - 14000ftDME 4.0mi210
BUNTS2MIROYVHFright276 (96)°1.5min timedICAO rules
JIIMS3JIIMSVHFleft228 (48)°6001ft - 14000ftDME 4.0mi210
PAATS3BUKYYVHFright248 (68)°DME 10.0miICAO rules
PAATS3GAREDVHFleft226 (46)°1.0min timedICAO rules
PAATS3PAATSVHFleft231 (51)°6001ft - 14000ftDME 5.0mi210
VCN9VCNNDBleft226 (46)°6001ft - 14000ft1.0min timed210
*) magnetic outbound (inbound) holding course
