Airports for X-Plane offers a convenient way to explore airports and their related communication information for the X-Plane flight simulator. It only uses data from the X-Plane flight simulator itself, and is therefore more reliable than the data that comes from real aviation websites. You can search for airports by using the ICAO code, or browse for airports per country and state. The information displayed is categorized by airport details, runway information, airport communication, approach frequencies (ILS and Glidepath details), details of nearby beacons, SIDs, STARs and approach procedures.

airline station rail stolport airborne concrete airport corporation airplane aerodrome near hospital train station airdock airspeed flown government airspace asphalt nearby

Airports for X-Plane

Sofia

Airport details

CountryBulgaria
StateSofia Province
RegionLB
AirspaceSofia Ctr
MunicipalitySofia
Elevation1742ft (531m)
TimezoneGMT +2
Coordinates42.69987, 23.40398
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLBSF
IATA codeSOF
FAA coden/a

Communication

Sofia ATIS126.680
Sofia Tower128.810
Sofia Approach129.900
Sofia Departure123.700

Approach frequencies

ILS-cat-IIIRW27109.518.00mi
ILS-cat-IRW09110.718.00mi
3° GSRW27109.518.00mi
3° GSRW09110.718.00mi
Nearby Points of Interest:
Smedovski's house
-
Fingov's house
-
Shismanov's house
-
Strawberry House
-
Georgov's House
-
Stanishev's House
-
Funk house, Sofia
-
Main Astronomical Point of Bulgaria
-
Modern Theater, Sofia
-
Saint George Church, Trudovets
-
Bozhenishki Urvich
-
Vrachanski Karst

Runway info

Runway 09 / 27
 length3587m (11768ft)
 bearing93° / 273°
 width45m (148ft)
 surfaceasphalt
 displ threshold300m (984ft) / 0m (0ft)
 blast zone119m (390ft) / 120m (394ft)

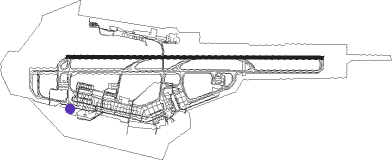

Airport layout - parking location GA4


Taxiway locations

 A  B  C  D  E  F  H  J
 N  S  W
Parking locations

 1  10  11  12  12A  13  13A  14
 14A  15  15A  16  16A  17  18  19
 1E  2  20  21  22  23  24  25
 26  27  28  29  29A  2D  2E  3
 30  30A  31  31A  32  32A  33  33A
 34  34A  35  36  37  38  39  3D
 4  40  41  42  43  44  4A  4B
 4D  5  5D  6  60L  66L  67L  68L
 69L  6D  7  7D  8  9  BH  Cargo
 Engine  GA1  GA10  GA11  GA12  GA2  GA3  GA4
 GA5  GA6  GA7  GA8  GA9  H1  H2  H3
 H4  M1  M2  Mil

Nearby beacons

codeidentifierdistbearingfrequency
SOFSOFIA VOR/DME0.6263°112.60
VITDME9.5220°113.45
BOZBOZHOURISHTE NDB10.2288°312
WAKVAKAREL NDB15.2113°490
BLOBAILOVO VOR/DME18.295°117.50
KALDME27.6295°117.55
GOLGOLYAMA VOR/DME4364°114.10

Departure and arrival routes

Transition altitude12000ft
Transition level14000ft
SID end pointsdistanceoutbound heading
RW09
 UMPI3S, UMPI2V34mi84°
 GAPV2S, GAPV2V33mi91°
 DEDI2S, DEDI2V31mi99°
 RUME6A, RUME2S47mi113°
 DILV5A, DILV2S33mi126°
 OMEN3V, OMEN2S24mi169°
 NAPE3A, NAPE2S30mi224°
 GODE5A, GODE3S31mi316°
 OGOT5A, OGOT3S31mi351°
RW27
 UMPI2W, UMPI2T34mi84°
 GAPV2T, GAPV2W33mi91°
 DEDI2T, DEDI2W31mi99°
 RUME3W, RUME2T47mi113°
 DILV2T, DILV2W33mi126°
 OMEN2W, OMEN2T24mi169°
 NAPE2T, NAPE3E30mi224°
 GODE5E, GODE2T31mi316°
 OGOT2T, OGOT5E31mi351°

STAR starting pointsdistanceinbound heading
RW09
 MORE4D24.712°
 NISV4D31.3114°
 UMPI4D34.3264°
 GAPV4D32.7271°
 DEDI4D30.5279°
 RUME4D46.7293°
 VANE4D24.3359°
RW27
 MORE4H24.712°
 NISV3K, NISV4H31.3114°
 UMPI4H34.3264°
 GAPV3H32.7271°
 DEDI4H30.5279°
 RUME4H46.7293°
 VANE4H24.3359°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW09BENGO (93°)BENGO 7000ft
LUXUV (4mi, 93°) 6100ft
 RNAVLUXUV 6100ft
MAGUP (8mi, 93°) 4100ft
LBSF (7mi, 92°) 1789ft
SF450 (7mi, 94°)
(2861mi, 209°) 4500ft
SOF (2858mi, 29°) 8000ft
SOF (turn) 8000ft
RW27RUBIV (274°)RUBIV 6000ft
BAGIP (5mi, 274°) 4100ft
 RNAVBAGIP 4100ft
TUTPO (4mi, 274°) 3600ft
LBSF (7mi, 274°) 1795ft
SOF (turn)
BOZ (10mi, 290°)
BENGO (10mi, 258°) 8000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DEDI4DBENGOVHFright269 (89)°6100ft - 14000ft1.0min timedICAO rules
GAPV4DBENGOVHFright269 (89)°6100ft - 14000ft1.0min timedICAO rules
GOL3HETRILVHFleft30 (210)°8000ft - 10000ft1.0min timed210
GOL3HGOLNDBright331 (151)°17000ft - 23000ft1.5min timed265
GOL3HLANGIVHFleft328 (148)°8000ft - 10000ft1.0min timed230
GOL4DBENGOVHFright269 (89)°6100ft - 14000ft1.0min timedICAO rules
GOL4DGOLNDBright331 (151)°17000ft - 23000ft1.5min timed265
MORE4DBENGOVHFright269 (89)°6100ft - 14000ft1.0min timedICAO rules
NISV4DBENGOVHFright269 (89)°6100ft - 14000ft1.0min timedICAO rules
RUME4DBENGOVHFright269 (89)°6100ft - 14000ft1.0min timedICAO rules
UMPI4DBENGOVHFright269 (89)°6100ft - 14000ft1.0min timedICAO rules
VANE4DBENGOVHFright269 (89)°6100ft - 14000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
