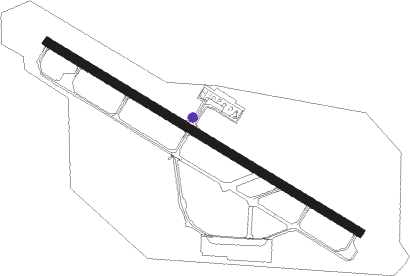

Badajoz - Badajoz- Talavera La Real
Airport details
| Country | Spain |
| State | Extremadura |
| Region | LE |
| Airspace | Madrid Ctr |
| Municipality | Badajoz |
| Elevation | 606ft (185m) |
| Timezone | GMT +1 |
| Coordinates | 38.88488, -6.81775 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.35 |
| ICAO code | LEBZ |
| IATA code | BJZ |
| FAA code | n/a |
Communication
| Badajoz- Talavera La Real Tower CIVIL | 122.100 |
Approach frequencies
| ILS-cat-I | RW31 | 110.5 | 18.00mi |
| 3° GS | RW31 | 110.5 | 18.00mi |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| VBZ | BADAJOZ VOR/DME | 0.3 | 22° | 116.80 |
| TBC | BADAJOZ TACAN | 0.4 | 352° | 108.80 |
| CCS | CACERES VOR/DME | 42.3 | 31° | 114.20 |
Departure and arrival routes
| Transition altitude | 6000ft |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| RW31 | |||
| CCS2A | 42.3 | 211° | |
| SVL2E | 100.7 | 324° | |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| CCS2A | NIMAS | VHF | right | 87 (267)° | > 4500ft | DME 5.0mi | ICAO rules |
| SVL2E | VASOR | VHF | right | 177 (357)° | > 4500ft | DME 5.0mi | ICAO rules |
| *) magnetic outbound (inbound) holding course | |||||||
Disclaimer
The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
