Airports for X-Plane

Rota - Cadiz Rota

Airport details

CountrySpain
StateAndalusia
RegionLE
AirspaceMadrid Ctr
MunicipalityRota
Elevation87ft (27m)
TimezoneGMT +1
Coordinates36.64323, -6.33759
Magnetic var
Typeland
Available sinceX-Plane v10.32
ICAO codeLERT
IATA codeROZ
FAA coden/a

Communication

Cadiz Rota ATIS267.600
Cadiz Rota Ground Control130.700
Cadiz Rota Tower119.750
Cadiz Rota Tower HEL341.150
Cadiz Rota SEVILLA Approach128.500

Approach frequencies

ILS-cat-IRW10108.718.00mi
3° GSRW10108.718.00mi

Runway info

Runway 10 / 28
 length3683m (12083ft)
 bearing96° / 276°
 width63m (205ft)
 surfaceasphalt
 blast zone46m (151ft) / 47m (154ft)

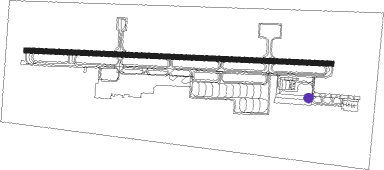

Airport layout - parking location P-02


Taxiway locations

 A  B  C  D  E  F  G  H
 P
Parking locations

 20  21  22  23  30  31  32  33
 34  35  36  37  38  39  40  41
 42  L-01  L-02  L-03  L-04  L-05  L-06  L-07
 L-08  L-09  L-10  L-11  N-01  N-02  N-03  N-04
 N-05  N-06  N-07  N-08  N-09  N-10  N-11  N-12
 N-13  N-14  N-15  N-16  N-17  N-18  N-19  N-21
 N-22  P-02  P-03  P-04  P-05  P-06  P-07  P-08
 P-09  P-10  P-11  P-12  P-13  P-14  P-15  P-16
 P-17  P-18  P-19  P-20

Nearby beacons

codeidentifierdistbearingfrequency
AOGROTA TACAN0.6292°108.60
JRZJEREZ VOR/DME18.161°113
JERJEREZ NDB19.259°433
VJFVEJER DE LA FRONTERA VOR/DME29.9138°117.80
EECEL COPERO (SEVILLA) NDB43.227°327
MRNMORON (SEVILLE) VOR/DME4753°115.50
SPPSEVILLE NDB53.235°420
SVLSEVILLE VOR/DME54.536°113.70
GBRGIBRALTAR TACAN56.7117°113.60
TNRTANGER VOR/DME58.2155°108.05
TNGTANGER VOR/DME59154°115.90
TANTANGER NDB61.1150°374

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW10
 RD125I148mi24°
 HIJ2Y127mi34°
 ALCO2X113mi56°
 MGA2X, MGA2Y95mi85°
 RD169I85mi105°
 PIMO2X, PIMO2W76mi109°
 ONUB2W42mi325°
 RD123I47mi341°
RW28
 RD125I148mi24°
 HIJ2Z127mi34°
 ALCO2Y113mi56°
 MGA2V, MGA2Z95mi85°
 RD169I85mi105°
 PIMO2Y, PIMO2Z76mi109°
 ONUB2X42mi325°
 RD123I47mi341°

STAR starting pointsdistanceinbound heading
ALL
 RD123V46.8161°
 RD125V148.4204°
 RD169V84.6285°
