Airports for X-Plane

Santander

Airport details

CountrySpain
StateCantabria
RegionLE
AirspaceMadrid Ctr
MunicipalityCamargo
Elevation16ft (5m)
TimezoneGMT +1
Coordinates43.42694, -3.82000
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLEXJ
IATA codeSDR
FAA coden/a

Communication

Santander Ground Control121.700
Santander Tower118.100
Santander Approach118.375
Santander Departure133.000

Approach frequencies

ILS-cat-IRW29110.918.00mi
3° GSRW29110.918.00mi
Nearby Points of Interest:
Central Library of Cantabria
-
Hospital of San Rafael (Santander)
-
Mercado de la Esperanza
-
Conjunto Histórico Paseo de Pereda y Calle Castelar
-
Bay of Santander
-
Tower of Velo
-
Convento del Santo Desierto de San José de Rigada
-
Royal Artillery Factory of La Cavada
-
Tower house of Calderón de la Barca family
-
Palacio de Peredo
-
Torre de don Beltrán de la Cueva
-
Palace of the counts of Isla-Fernández
-
Palacio de Soñanes
-
Cubos del término municipal y rollo heráldico
-
Cave of Altamira and Paleolithic Cave Art of Northern Spain
-
Casona de Juan Valle Rozadilla
-
Sanctuary of Nuestra Señora de Las Caldas
-
Palacio del Marqués de Manzanedo, Santoña
-
Casa Pico de Velasco
-
Cave of El Haza, Ramales de la Victoria
-
Rollo de Justicia
-
Palacio de Mier
-
Calzada Romana del Besaya
-
Dolomitas del Norte
-
San Estebango dorrea

Runway info

Runway 11 / 29
 length2311m (7582ft)
 bearing105° / 285°
 width44m (143ft)
 surfaceasphalt

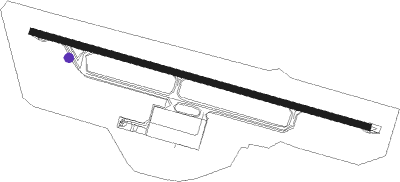

Airport layout - taxiway location Y4


Taxiway locations

 T3  Y1  Y4
Parking locations

 GA  Gate

Nearby beacons

codeidentifierdistbearingfrequency
SASANTANDER NDB1.3285°416
SNRSANTANDER VOR/DME3.8285°115.30
BBILBAO NDB34.494°395
BLVBILBAO VOR/DME39.298°115.90
VRAVITORIA VOR/DME59.1126°116.60
DGODOMINGO VOR/DME71.5136°112.60

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW11
 XORN4B28mi44°
 CALC5J22mi97°
 TITA8B, TITA4C29mi198°
 OBET3D23mi275°
 VADO4B21mi342°
RW29
 XORN4A28mi44°
 BLV5R39mi98°
 TITA6A29mi198°
 OBET3C23mi275°
 VADO5A21mi342°

STAR starting pointsdistanceinbound heading
ALL
 BLV2S39.2278°
 EMAN2S28.2355°
RW11
 MOSC2G, MOSC1P13.45°
 OBET4H, OBET1P, OBET4G22.595°
 VADO4G, VADO1P, VADO2H20.9162°
 XORN1P, XORN2H, XORN4G28.1224°
 BLV3G, BLV1J39.2278°
 EMAN3G, EMAN1P28.2355°
RW29
 OBET2A, OBET1K22.595°
 VADO2K, VADO6F, VADO2E20.9162°
 XORN2K, XORN2E, XORN3F28.1224°
 CALC6E, CALC2K22.3277°
 BLV5E, BLV2H39.2278°
 ROLE2K, ROLE5E27.1307°
 EMAN2K, EMAN4F, EMAN2E28.2355°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW11-YNORAY (106°)NORAY 4000ft
XJ07W (6mi, 106°) 1800ft
 RNAVXJ07W 1800ft
XJ04W (3mi, 105°) 1400ft
LEXJ (5mi, 105°) 60ft
(2616mi, 175°) 420ft
XJ364 (2625mi, 355°)
XJ366 (10mi, 286°) 3000ft
NORAY (8mi, 211°) 4000ft
NORAY (turn) 4000ft
RW11-ZNORAY (106°)NORAY 4000ft
XJ07W (6mi, 106°) 1800ft
 RNAVXJ07W 1800ft
XJ04W (3mi, 105°) 1400ft
LEXJ (5mi, 105°) 60ft
XJ363 (1mi, 105°)
XJ364 (9mi, 348°)
XJ366 (10mi, 286°) 3000ft
NORAY (8mi, 211°) 4000ft
NORAY (turn) 4000ft
RW29-YAMPUR (285°)AMPUR 5000ft
XJ14E (4mi, 285°) 4000ft
XJ11E (3mi, 285°) 3000ft
RW29-YIDKER (216°)IDKER 5000ft
RESVA (16mi, 135°) 5000ft
XJ11E (7mi, 247°) 3000ft
RW29-YRESVA (271°)RESVA 5000ft
XJ11E (7mi, 247°) 3000ft
 RNAVXJ11E 3000ft
XJ08E (3mi, 285°) 2500ft
LEXJ (8mi, 285°) 61ft
XJ381 (6mi, 285°)
RESVA (23mi, 95°) 5000ft
RESVA (turn) 5000ft
RW29-ZAMPUR (285°)AMPUR 5000ft
XJ14E (4mi, 285°) 4000ft
XJ11E (3mi, 285°) 3000ft
RW29-ZIDKER (216°)IDKER 5000ft
RESVA (16mi, 135°) 5000ft
XJ11E (7mi, 247°) 3000ft
RW29-ZRESVA (271°)RESVA 5000ft
XJ11E (7mi, 247°) 3000ft
 RNAVXJ11E 3000ft
XJ08E (3mi, 285°) 2500ft
LEXJ (8mi, 285°) 61ft
XJ381 (6mi, 285°)
RESVA (23mi, 95°) 5000ft
RESVA (turn) 5000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BLV2SSAFIXright111 (291)°> 6000ft1.0min timedICAO rules
BLV3GSNRNDBleft292 (112)°> 6000ft1.0min timedICAO rules
BLV5ESORPOVHFright111 (291)°> 6000ftDME 5.0miICAO rules
CALC6ESORPOVHFright111 (291)°> 6000ftDME 5.0miICAO rules
EMAN2ESNRNDBleft292 (112)°> 6000ft1.0min timedICAO rules
EMAN2ESORPOVHFright111 (291)°> 6000ftDME 5.0miICAO rules
EMAN2SSAFIXright111 (291)°> 6000ft1.0min timedICAO rules
EMAN3GSNRNDBleft292 (112)°> 6000ft1.0min timedICAO rules
EMAN4FSORPOVHFright111 (291)°> 6000ftDME 5.0miICAO rules
MOSC2GNORAYVHFleft292 (112)°> 4000ft1.0min timedICAO rules
OBET2ASNRNDBleft292 (112)°> 6000ft1.0min timedICAO rules
OBET2ASORPOVHFright111 (291)°> 6000ftDME 5.0miICAO rules
OBET4GSNRNDBleft292 (112)°> 6000ft1.0min timedICAO rules
OBET4HNORAYVHFleft292 (112)°> 4000ft1.0min timedICAO rules
ROLE5ESORPOVHFright111 (291)°> 6000ftDME 5.0miICAO rules
VADO2ESNRNDBleft292 (112)°> 6000ft1.0min timedICAO rules
VADO2ESORPOVHFright111 (291)°> 6000ftDME 5.0miICAO rules
VADO2HNORAYVHFleft292 (112)°> 4000ft1.0min timedICAO rules
VADO4GSNRNDBleft292 (112)°> 6000ft1.0min timedICAO rules
VADO6FSORPOVHFright111 (291)°> 6000ftDME 5.0miICAO rules
XORN2ESNRNDBleft292 (112)°> 6000ft1.0min timedICAO rules
XORN2ESORPOVHFright111 (291)°> 6000ftDME 5.0miICAO rules
XORN2HNORAYVHFleft292 (112)°> 4000ft1.0min timedICAO rules
XORN3FSORPOVHFright111 (291)°> 6000ftDME 5.0miICAO rules
XORN4GSNRNDBleft292 (112)°> 6000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
