Airports for X-Plane

Beauvais/tillé - Beauvais-tille

Airport details

CountryFrance
StateHauts-de-France
RegionLF
AirspaceParis Ctr
MunicipalityTillé
Elevation355ft (108m)
TimezoneGMT +1
Coordinates49.45442, 2.11281
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLFOB
IATA codeBVA
FAA coden/a

Communication

Beauvais-Tille BEAUVAIS ATIS118.375
Beauvais-Tille BEAUVAIS Tower121.400
Beauvais-Tille BEAUVAIS Approach119.900

Approach frequencies

ILS-cat-IIIRW12111.1518.00mi
ILS-cat-IRW30109.9518.00mi
3° GSRW30109.9518.00mi
3° GSRW12111.1518.00mi

Runway info

Runway 12 / 30
 length2432m (7979ft)
 bearing113° / 293°
 width45m (148ft)
 surfaceasphalt
 displ threshold48m (157ft) / 0m (0ft)
Runway 04 / 22
 length707m (2320ft)
 bearing54° / 234°
 width18m (59ft)
 surfaceasphalt

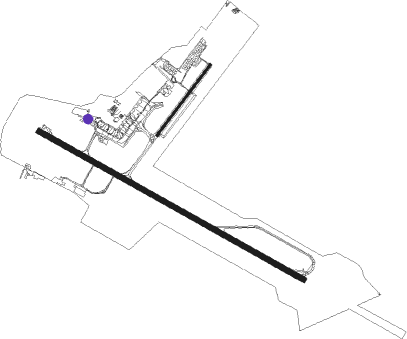

Airport layout - parking location L5


Taxiway locations

 A  H  N1  N2  P  R  S  T
 W
Parking locations

 1  10  11  12  2  3  4  5
 6  7  8  9  Apron  L2  L3  L4
 L5  New

Nearby beacons

codeidentifierdistbearingfrequency
BOVBEAUVAIS TILLE VOR/DME1.9114°109.65
BVBEAUVAIS NDB3.9294°391
MTDMONTDIDIER VOR15.875°113.65
PONPONTOISE CORMEILLES EN VE VOR21.7192°111.60
GIAMIENS NDB27.444°339
CGN(PARIS) DME30.1138°115.35
BTLE BOURGET (PARIS) VOR/DME31.7144°116.10
ROUROUEN VALLEE DE SEINE VOR32.4271°116.80
PGSCHARLES-DE-GAULLE (PARIS) VOR/DME33.8132°117.05
BSNDME40.2106°114.85
TAVILLACOUBLAY NDB41181°286
ABYALBERT BRAY NDB41.353°321
ABBABBEVILLE VOR/DME42339°108.45
TSUTOUSSUS LE NOBLE VOR42181°108.25
EVXEVREUX FAUVILLE VORTAC43.2245°112.40
POYORLY (PARIS) NDB44.8159°334
HOLVILLACOUBLAY NDB44.9202°315
DPEDIEPPE VOR46.2297°115.80
RBTRAMBOUILLET VOR/DME48.3188°114.70
CLMCOULOMMIERS VOR/DME50.9124°112.90
EPREPERNON VOR/DME52.9209°115.65
MVMELUN NDB63.9136°434
MLNMELUN VILLAROCHE VOR/DME66145°113.60

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
ALL
 PN4N, PN4R, PN4U, PN4W42mi181°
RW12
 ATRE1M22mi38°
 NURM1M34mi60°
 RANU1S, RANU1V90mi98°
 DIKO1V, DIKO1S78mi99°
 LANV1V, LANV1S161mi107°
 BUBL1S, BUBL1V90mi109°
 BAXI1V, BAXI1S80mi111°
 PILU1V, PILU1S90mi146°
 OKAS1S, OKAS1V86mi154°
 LATR1V, LATR1S84mi164°
 ERIX1S, ERIX1V83mi174°
 AGOP1S, AGOP1V82mi184°
 EVX1V, EVX1S39mi246°
 LGL1V, LGL1S74mi247°
 MATI1M16mi294°
 OPAL1M28mi333°
 ABB1M42mi339°
 VESA1M55mi355°
RW30
 ATRE1N22mi38°
 NURM1N34mi60°
 RANU1W, RANU1T90mi98°
 DIKO1W, DIKO1T78mi99°
 LANV1W, LANV1T161mi107°
 BUBL1T, BUBL1W90mi109°
 BAXI1W, BAXI1T80mi111°
 PILU1W, PILU1T90mi146°
 OKAS1W, OKAS1T86mi154°
 LATR1W, LATR1T84mi164°
 ERIX1T, ERIX1W83mi174°
 AGOP1W, AGOP1T82mi184°
 EVX1W, EVX1T39mi246°
 LGL1W, LGL1T74mi247°
 MATI1N16mi294°
 OPAL1N28mi333°
 ABB1N42mi339°
 VESA1N55mi355°

STAR starting pointsdistanceinbound heading
ALL
 VELO1B43.3120°
 DINA1B127.1263°
 VEDU1B104.3267°
 RLP1B155.2296°
 TINI1B163.2302°
 TRO1B102.7303°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW12GONOX (134°)GONOX
DIVON (5mi, 226°) 3000ft
 RNAVDIVON 3000ft
FOB12 (4mi, 113°) 3000ft
LFOB (9mi, 113°) 406ft
OB410 (4mi, 114°)
OB412 (8mi, 294°) 2000ft
OB412 (turn) 2000ft
RW30MATID (114°)MATID
MTD (28mi, 94°)
OB504 (10mi, 181°)
INMOC (5mi, 226°) 3000ft
RW30MTD (255°)MTD
OB504 (10mi, 181°)
INMOC (5mi, 226°) 3000ft
RW30OBOBI (276°)OBOBI
INMOC (26mi, 267°) 3000ft
 RNAVINMOC 3000ft
FOB30 (5mi, 294°) 3000ft
LFOB (9mi, 294°) 350ft
OB510 (2mi, 293°)
MTD (17mi, 79°) 3000ft
MTD (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
CMB1BBOVNDBleft310 (130)°3000ft - 5000ft1.0min timed200
CMB1BMTDNDBright27 (207)°3000ft - 8000ft1.0min timed210
CMB1CBOVNDBleft310 (130)°3000ft - 5000ft1.0min timed200
CMB1CMTDNDBright27 (207)°3000ft - 8000ft1.0min timed210
DINA1BMTDNDBright27 (207)°3000ft - 8000ft1.0min timed210
PEXI1BMATIDVHFleft275 (95)°3000ft - 5000ft1.0min timed200
RLP1BLORNIVHFright74 (254)°15000ft - 17000ft1.5min timed240
RLP1BMTDNDBright27 (207)°3000ft - 8000ft1.0min timed210
SONU1BMTDNDBright27 (207)°3000ft - 8000ft1.0min timed210
TINI1BLORNIVHFright74 (254)°15000ft - 17000ft1.5min timed240
TINI1BMTDNDBright27 (207)°3000ft - 8000ft1.0min timed210
TRO1BLORNIVHFright74 (254)°15000ft - 17000ft1.5min timed240
TRO1BMTDNDBright27 (207)°3000ft - 8000ft1.0min timed210
VEDU1BMTDNDBright27 (207)°3000ft - 8000ft1.0min timed210
VELO1BMATIDVHFleft275 (95)°3000ft - 5000ft1.0min timed200
*) magnetic outbound (inbound) holding course
