Airports for X-Plane

Haifa

Airport details

CountryIsrael
StateHaifa District
RegionLL
AirspaceTel Aviv Ctr
MunicipalityHaifa
Elevation23ft (7m)
TimezoneGMT +2
Coordinates32.81329, 35.04156
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLLHA
IATA codeHFA
FAA coden/a

Communication

Haifa Ground Control127.800
Haifa Tower133.000

Runway info

Runway 16 / 34
 length1289m (4229ft)
 bearing156° / 336°
 width30m (98ft)
 surfaceasphalt
 displ threshold93m (305ft) / 113m (371ft)
 blast zone0m (0ft) / 32m (105ft)

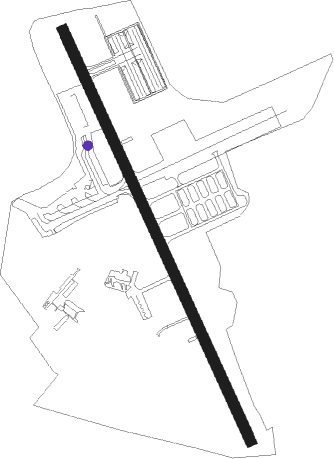

Airport layout - parking location L2


Parking locations

 A1  A2  A3  A4  J1  J10  J2  J3
 J4  J5  J6  J7  J8  J9  L1  L2
 L3  L4  L5  L6  L7  M1  M10  M11
 M12  M13  M14  M15  M16  M17  M18  M3
 M5  M7  M8  M9  N10  N11  N12  N13
 N14  N15  N16  N17  N18  N20  N21  N22
 N23  N24  N25  N26  N27  N28  N29  N30
 N31  N32  N33  N34  N35  N36  N37  N38
 N39  N40  N41  N42  N43  N44  N45  N46
 N47  N48  N49  N50  N51  N52  N53  N54

Nearby beacons

codeidentifierdistbearingfrequency
RMDRAMAT DAVID NDB11.3136°368
ROPROSH-PINA VOR/DME28.672°115.30
NATNATANIA VOR/DME29189°112.40
BGNBEN GURION (TEL AVIV) VOR/DME48.7192°113.50
BARBAYSUR VOR62.928°113.90
KADKALDE VOR/DME63.724°112.60

Departure and arrival routes

Transition altitude10500ft
Transition level11500ft
STAR starting pointsdistanceinbound heading
ALL
 GALI1A, GALI1B25.186°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
GALI1AZAHAVVHFleft257 (77)°3000ft - 5000ft1.0min timed230
GALI1BZAHAVVHFleft257 (77)°3000ft - 5000ft1.0min timed230
*) magnetic outbound (inbound) holding course
