Airports for X-Plane

Klagenfurt Am Wörthersee - Klagenfurt

Airport details

CountryAustria
StateCarinthia
RegionLO
AirspaceVienna Ctr
MunicipalityKlagenfurt
Elevation1470ft (448m)
TimezoneGMT +1
Coordinates46.64774, 14.32709
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLOWK
IATA codeKLU
FAA coden/a

Communication

Klagenfurt ATIS126.330
Klagenfurt Tower118.100
Klagenfurt Approach126.825

Approach frequencies

ILS-cat-IIIRW28R110.118.00mi
3° GSRW28R110.118.00mi

Runway info

Runway 10L / 28R
 length2712m (8898ft)
 bearing101° / 281°
 width45m (148ft)
 surfaceconcrete
 displ threshold198m (650ft) / 0m (0ft)
Runway 10R / 28L
 length709m (2326ft)
 bearing101° / 281°
 width27m (89ft)
 surfacegrass
 displ threshold99m (325ft) / 100m (328ft)

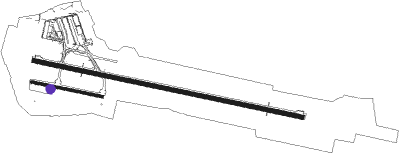

Airport layout - taxiway location X2


Taxiway locations

 B  C  L  M  M1  X1  X2  Y
 Z
Parking locations

 Apron  Main  Military

Nearby beacons

codeidentifierdistbearingfrequency
KIKLAGENFURT NDB2.4104°313
KFTKLAGENFURT NDB8.696°374
KFTKLAGENFURT VOR/DME10.1102°113.10
VIWDME17.2277°112.90
LBLLJUBLJANA VOR/DME24.9166°117.20
KORDME27.878°109.40
MGLJUBLJANA NDB30154°296
ZWZELTWEG NDB37.438°418
DOLDOLSKO VOR/DME38.6141°112.70
RCHRONCHI DEI LEGIONARI VOR/DME60.4226°114.20
RONRONCHI DEI LEGIONARI NDB63.4230°396

Departure and arrival routes

Transition altitude9000ft
SID end pointsdistanceoutbound heading
RW10L
 ABIR1L27mi80°
 KLAG1L20mi107°
 BERT1L17mi124°
 REKT1L18mi262°
 VILA1L17mi277°
 INGI2L46mi314°
RW28R
 ABIR1R27mi80°
 KLAG1R20mi107°
 BERT1R17mi124°
 REKT1R18mi262°
 VILA1R17mi277°
 INGI2R46mi314°

STAR starting pointsdistanceinbound heading
ALL
 ARNO3A31.982°
 TISM1A17.1147°
 ABIR2A, ABIR2T27.2260°
 DIPS2A24.6274°
 KLAG1A20.1287°
 BERT1A17.1304°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW10LMOK1W (17°)MOKEG 8000ft
WK830 (5mi, 23°) 7000ft
WK806 (11mi, 281°) 6300ft
WK807 (3mi, 203°) 5400ft
WK808 (3mi, 203°) 4500ft
RW10LWK804 (101°)WK804 8000ft
WK802 (3mi, 101°) 6500ft
WK808 (4mi, 101°) 4500ft
RW10LWK806 (125°)WK806 6300ft
WK807 (3mi, 203°) 5400ft
WK808 (3mi, 203°) 4500ft
 RNAVWK808 4500ft
WK809 (2mi, 101°) 4000ft
WK810 (2mi, 101°) 3300ft
LOWK (5mi, 100°) 1520ft
WK812 (15mi, 102°)
WK824 (8mi, 45°)
MOKEG (17mi, 263°) 8000ft
MOKEG (turn) 8000ft
RW28RMOK2E (17°)MOKEG 8000ft
WK830 (5mi, 23°) 7000ft
WK831 (10mi, 101°) 5500ft
WK832 (5mi, 203°) 4000ft
WK827 (2mi, 281°) 4000ft
RW28RWK824 (265°)WK824 6500ft
WK827 (10mi, 248°) 4000ft
 RNAVWK827 4000ft
WK833 (4mi, 281°) 3100ft
LOWK (6mi, 283°) 1501ft
WK829 (10mi, 280°)
MOKEG (12mi, 101°)
WK827 (8mi, 101°)
MOKEG (8mi, 281°) 8000ft
MOKEG (turn) 8000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ABIR2AMOKEGVHFright103 (283)°> 8000ft1.0min timedICAO rules
ARNO3AMOKEGVHFright103 (283)°> 8000ft1.0min timedICAO rules
BERT1AMOKEGVHFright103 (283)°> 8000ft1.0min timedICAO rules
DIPS2AMOKEGVHFright103 (283)°> 8000ft1.0min timedICAO rules
EVAX1AMOKEGVHFright103 (283)°> 8000ft1.0min timedICAO rules
KLAG1AMOKEGVHFright103 (283)°> 8000ft1.0min timedICAO rules
TISM1AMOKEGVHFright103 (283)°> 8000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
