Airports for X-Plane

Vila Do Porto - Santa Maria

Airport details

CountryPortugal
StateAutonomous Region of Azores
RegionLP
AirspaceSanta Maria Oceanic Ctr
MunicipalityVila do Porto
Elevation308ft (94m)
TimezoneGMT -1
Coordinates36.97389, -25.17111
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLPAZ
IATA codeSMA
FAA coden/a

Communication

Santa Maria Tower118.100
Santa Maria Approach119.100

Approach frequencies

ILS-cat-IRW18110.318.00mi
2.8° GSRW18110.318.00mi

Runway info

Runway 18 / 36
 length3062m (10046ft)
 bearing169° / 349°
 width60m (197ft)
 surfaceconcrete
 blast zone255m (837ft) / 255m (837ft)

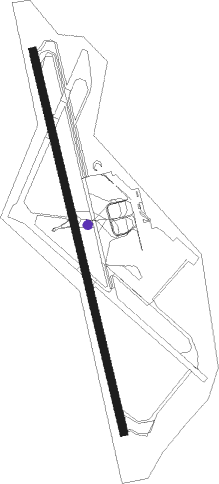

Airport layout - taxiway location C


Taxiway locations

 C  D
Parking locations

 1  1A  2  2A  3  3A  4  4A
 5  5A  6  G  Heli

Nearby beacons

codeidentifierdistbearingfrequency
VSMSANTA MARIA VOR/DME0.6157°112
PDPONTA DELGADA NDB51.6326°351
VMGSAO MIGUEL VOR/DME59.3326°111.20

Departure and arrival routes

Transition altitude4000ft
SID end pointsdistanceoutbound heading
RW18
 BEKU4S, BEKU4T109mi63°
 DOKA4S, DOKA4T88mi82°
 ETRO4S65mi116°
 GINS4S126mi255°
 GOMO4S234mi270°
 RODI4S134mi294°
 VMG4S59mi326°
 XUVA2S37mi356°
RW36
 BEKU5N109mi63°
 DOKA4P, DOKA5N88mi82°
 ETRO4N65mi116°
 GINS5N126mi255°
 GOMO5N234mi270°
 RODI4N134mi294°
 VMG5N59mi326°
 XUVA2N37mi356°

STAR starting pointsdistanceinbound heading
ALL
 GINS3B126.175°
 GOMO3B234.390°
 RODI3B133.6114°
 VMG3B59.3146°
 BEKU3C109.2243°
 DOKA3C87.9262°
 ETRO3C65.0296°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BEKU3CVSMNDBleft154 (334)°15000ft - 60000ft1.5min timed280
DOKA3CVSMNDBleft154 (334)°15000ft - 60000ft1.5min timed280
ETRO3CVSMNDBleft154 (334)°15000ft - 60000ft1.5min timed280
GINS3BVSMNDBleft154 (334)°15000ft - 60000ft1.5min timed280
GOMO3BVSMNDBleft154 (334)°15000ft - 60000ft1.5min timed280
RODI3BVSMNDBleft154 (334)°15000ft - 60000ft1.5min timed280
VMG3BVSMNDBleft154 (334)°15000ft - 60000ft1.5min timed280
*) magnetic outbound (inbound) holding course
