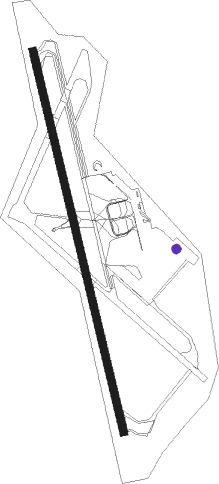

Country | Portugal |
State | Autonomous Region of Azores |
Region | LP |
Airspace | Santa Maria Oceanic Ctr |
Municipality | Vila do Porto |
Elevation | 308ft (94m) |
Timezone | GMT -1 |
Coordinates | 36.97389, -25.17111 |
Magnetic var | |
Type | land |
Available since | X-Plane v10.40 |
ICAO code | LPAZ |
IATA code | SMA |
FAA code | n/a |
Santa Maria Tower | 118.100 |
Santa Maria Approach | 119.100 |
ILS-cat-I | RW18 | 110.3 | 18.00mi |
2.8° GS | RW18 | 110.3 | 18.00mi |
code | identifier | dist | bearing | frequency |
---|---|---|---|---|
VSM | SANTA MARIA VOR/DME | 0.6 | 157° | 112 |
PD | PONTA DELGADA NDB | 51.6 | 326° | 351 |
VMG | SAO MIGUEL VOR/DME | 59.3 | 326° | 111.20 |
Transition altitude | 4000ft |
SID end points | distance | outbound heading | |
---|---|---|---|
RW18 | |||
BEKU4S, BEKU4T | 109mi | 63° | |
DOKA4S, DOKA4T | 88mi | 82° | |
ETRO4S | 65mi | 116° | |
GINS4S | 126mi | 255° | |
GOMO4S | 234mi | 270° | |
RODI4S | 134mi | 294° | |
VMG4S | 59mi | 326° | |
XUVA2S | 37mi | 356° | |
RW36 | |||
BEKU5N | 109mi | 63° | |
DOKA4P, DOKA5N | 88mi | 82° | |
ETRO4N | 65mi | 116° | |
GINS5N | 126mi | 255° | |
GOMO5N | 234mi | 270° | |
RODI4N | 134mi | 294° | |
VMG5N | 59mi | 326° | |
XUVA2N | 37mi | 356° |
STAR starting points | distance | inbound heading | |
---|---|---|---|
ALL | |||
GINS3B | 126.1 | 75° | |
GOMO3B | 234.3 | 90° | |
RODI3B | 133.6 | 114° | |
VMG3B | 59.3 | 146° | |
BEKU3C | 109.2 | 243° | |
DOKA3C | 87.9 | 262° | |
ETRO3C | 65.0 | 296° |
STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
---|---|---|---|---|---|---|---|
BEKU3C | VSM | NDB | left | 154 (334)° | 15000ft - 60000ft | 1.5min timed | 280 |
DOKA3C | VSM | NDB | left | 154 (334)° | 15000ft - 60000ft | 1.5min timed | 280 |
ETRO3C | VSM | NDB | left | 154 (334)° | 15000ft - 60000ft | 1.5min timed | 280 |
GINS3B | VSM | NDB | left | 154 (334)° | 15000ft - 60000ft | 1.5min timed | 280 |
GOMO3B | VSM | NDB | left | 154 (334)° | 15000ft - 60000ft | 1.5min timed | 280 |
RODI3B | VSM | NDB | left | 154 (334)° | 15000ft - 60000ft | 1.5min timed | 280 |
VMG3B | VSM | NDB | left | 154 (334)° | 15000ft - 60000ft | 1.5min timed | 280 |
*) magnetic outbound (inbound) holding course |
