Airports4XP | LPPT | Lisbon

Lisbon - Lisboa

Airport details

Country	Portugal
State	Lisbon District
Region	LP
Airspace	Lisbon Ctr
Municipality	Lisbon
Elevation	374ft (114m)
Timezone	GMT +0
Coordinates	38.77417, -9.13417
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	LPPT
IATA code	LIS
FAA code	n/a

Communication

Lisboa ATIS Dep	121.955
Lisboa ATIS Arrv	124.155
Lisboa CLR	118.955
Lisboa Ground Control	121.755
Lisboa Tower	118.105
Lisboa Approach	119.105
Lisboa Approach Arrv	125.130
Lisboa Departure	119.105

Approach frequencies

ILS-cat-III	RW21	109.5	18.00mi
ILS-cat-III	RW03	109.1	18.00mi
3° GS	RW21	109.5	18.00mi
3° GS	RW03	109.1	18.00mi

Nearby Points of Interest:

Lisbon Airport

Igreja do Bairro da Encarnação

Laboratório Nacional de Engenharia Civil

Hospital de Júlio de Matos

Villa Sousa

Palácio Beltrão

Edifício Caleidoscópio

Casa da Quinta da Pimenta

Jardim do Campo Grande

Igreja de Nossa Senhora da Saúde e Santo André

University of Lisbon School of Law

Cidade Universitária de Lisboa

Parque das Nações

Fábrica de Loiça de Sacavém

Portugal. Ministério do Trabalho e Segurança Social

Santa Maria Hospital

Pastelaria Mexicana, incluindo o seu património artístico integrado

Hospital de Curry Cabral

Prédio de Gaveto entre a Avenida da República, 23, e a Avenida João Crisóstomo

Fundação Calouste Gulbenkian, incluindo o parque, a sede, o museu, o CAM e os jardins

Escola Secundária Afonso Domingues

Alfredo da Costa Maternity

Edifício sito na Rua Alexandre Herculano, 57

Palácio da Justiça (Lisbon)

Edifício na Rua Viriato, n.º 5

Runway info

Runway 02 / 20
	length	3817m (12523ft)
	bearing	28° / 208°
	width	45m (148ft)
	surface	asphalt
	displ threshold	97m (318ft) / 599m (1965ft)

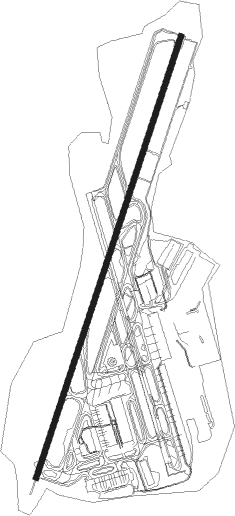

Airport layout

Taxiway locations

A2	E	F	G1	G2	HN	HS	J
K	L1	L2	M1	M2	M4	M5	N1
N2	P	Q1	Q2	Q3	R1	R2	S1
S2	S3	S4	T	U1	U2	U3	U4
U5	U6	V	W2	W3	Y	Z1	Z3

Parking locations

104	105	106	107	108	114	115	116
117	Gate	Ramp

Nearby beacons

code	identifier	dist	bearing	frequency
MOJ	MONTIJO TACAN	6.1	123°	110
LIS	LISBON VOR/DME	6.9	346°	114.80
SRA	SINTRA VORTAC	10.1	285°	112.10
CAS	CASCAIS VOR/DME	10.7	264°	114.30
LAR	ARRUDA (LISBON) NDB	13.9	23°	382
STR	SINTRA NDB	14	292°	371
ARR	DME-ILS	18.7	149°	108.30
ESP	ESPICHEL VOR/DME	21.1	188°	112.50
DMT	DME	47.8	72°	110.80
FTM	FATIMA VOR/DME	61.3	36°	113.50

Departure and arrival routes

Transition altitude

4000ft

SID end points		distance	outbound heading
RW03
	INBO4N	83mi	34°
	FTM3N	61mi	36°
	IXID4N	74mi	52°
	IDBI4N	60mi	66°
	GAIO5N	41mi	130°
	TROI5N	44mi	160°
	ESP4N	21mi	188°
	NAKO5N	47mi	195°
	LIGR5N	51mi	211°
	GANS5N	57mi	221°
	BUSE2N	43mi	255°
RW21
	INBO3S	83mi	34°
	FTM4S	61mi	36°
	IXID2S	74mi	52°
	EXON9S	53mi	83°
	GAIO7S	41mi	130°
	TROI7S	44mi	160°
	ESP5S	21mi	188°
	NAKO7S	47mi	195°
	LIGR7S	51mi	211°
	GANS7S	57mi	221°
	BUSE2S	43mi	255°

STAR starting points		distance	inbound heading
RW03
	NAKO8A	47.4	15°
	LIGR8A	51.2	31°
	UNPO8A, UNPO5K	54.1	56°
	BUSE4P	42.8	75°
	XAMA8A, XAMA9C, XAMA7K	80.4	205°
	INBO8A, INBO7K	61.3	216°
	EXON8A	52.8	263°
	GAIO8A	19.1	333°
	TROI8A	43.7	340°
RW21
	NAKO4B, NAKO4D	47.4	15°
	LIGR4D, LIGR4B	51.2	31°
	UNPO5D, UNPO4B	54.1	56°
	BUSE4D, BUSE4B	42.8	75°
	XAMA7D, XAMA5B	80.4	205°
	INBO5B	83.2	214°
	IDBI7B	60.2	246°
	GAIO7B, GAIO4D	40.8	310°
	TROI4D, TROI4B	43.7	340°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW03	PT421 (29°)	PT421 4000ft PT422 (4mi, 28°) 4000ft
	RNAV	PT422 4000ft PESEX (5mi, 28°) 4000ft LPPT (12mi, 29°) 380ft PT544 (4mi, 24°) (2386mi, 167°)
RW21	PT411 (212°)	PT411 4000ft PT551 (3mi, 236°) 4000ft
	RNAV	PT551 4000ft PT552 (2mi, 208°) 4000ft LPPT (12mi, 207°) 397ft PT554 (4mi, 212°) (2379mi, 167°)

Holding patterns

STAR name	hold at	type	turn	heading*	altitude	leg	speed limit
BUSE4B	EKMAR	VHF	left	224 (44)°	15000ft - 20000ft	DME 8.0mi	230
BUSE4B	RINOR	VHF	left	45 (225)°	15000ft - 20000ft	1.5min timed	230
BUSE4B	UPKAT	VHF	left	26 (206)°	4000ft - 9000ft	1.0min timed	200
BUSE4D	EKMAR	VHF	left	224 (44)°	15000ft - 20000ft	DME 8.0mi	230
BUSE4D	PINIM	VHF	right	294 (114)°	7000ft - 14000ft	1.0min timed	230
BUSE4D	UMUPI	VHF	right	2 (182)°	15000ft - 20000ft	DME 8.0mi	230
BUSE4D	UPKAT	VHF	left	26 (206)°	4000ft - 9000ft	1.0min timed	200
BUSE4P	EKMAR	VHF	left	224 (44)°	15000ft - 20000ft	DME 8.0mi	230
BUSE4P	PESEX	VHF	right	206 (26)°	4000ft - 9000ft	1.0min timed	200
EXON8A	ADSAD	VHF	right	164 (344)°	15000ft - 20000ft	DME 8.0mi	230
EXON8A	PESEX	VHF	right	206 (26)°	4000ft - 9000ft	1.0min timed	200
GAIO4D	EKMAR	VHF	left	224 (44)°	15000ft - 20000ft	DME 8.0mi	230
GAIO4D	PINIM	VHF	right	294 (114)°	7000ft - 14000ft	1.0min timed	230
GAIO4D	UMUPI	VHF	right	2 (182)°	15000ft - 20000ft	DME 8.0mi	230
GAIO4D	UPKAT	VHF	left	26 (206)°	4000ft - 9000ft	1.0min timed	200
GAIO7B	EKMAR	VHF	left	224 (44)°	15000ft - 20000ft	DME 8.0mi	230
GAIO7B	RINOR	VHF	left	45 (225)°	15000ft - 20000ft	1.5min timed	230
GAIO7B	UPKAT	VHF	left	26 (206)°	4000ft - 9000ft	1.0min timed	200
GAIO8A	ADSAD	VHF	right	164 (344)°	15000ft - 20000ft	DME 8.0mi	230
GAIO8A	PESEX	VHF	right	206 (26)°	4000ft - 9000ft	1.0min timed	200
IDBI7B	AGUVO	VHF	left	67 (247)°	15000ft - 20000ft	DME 8.0mi	230
IDBI7B	RINOR	VHF	left	45 (225)°	15000ft - 20000ft	1.5min timed	230
IDBI7B	UPKAT	VHF	left	26 (206)°	4000ft - 9000ft	1.0min timed	200
INBO5B	RINOR	VHF	left	45 (225)°	15000ft - 20000ft	1.5min timed	230
INBO5B	UPKAT	VHF	left	26 (206)°	4000ft - 9000ft	1.0min timed	200
INBO7K	PESEX	VHF	right	206 (26)°	4000ft - 9000ft	1.0min timed	200
INBO8A	PESEX	VHF	right	206 (26)°	4000ft - 9000ft	1.0min timed	200
LIGR4B	EKMAR	VHF	left	224 (44)°	15000ft - 20000ft	DME 8.0mi	230
LIGR4B	RINOR	VHF	left	45 (225)°	15000ft - 20000ft	1.5min timed	230
LIGR4B	UPKAT	VHF	left	26 (206)°	4000ft - 9000ft	1.0min timed	200
LIGR4D	EKMAR	VHF	left	224 (44)°	15000ft - 20000ft	DME 8.0mi	230
LIGR4D	PINIM	VHF	right	294 (114)°	7000ft - 14000ft	1.0min timed	230
LIGR4D	UMUPI	VHF	right	2 (182)°	15000ft - 20000ft	DME 8.0mi	230
LIGR4D	UPKAT	VHF	left	26 (206)°	4000ft - 9000ft	1.0min timed	200
LIGR8A	EKMAR	VHF	left	224 (44)°	15000ft - 20000ft	DME 8.0mi	230
LIGR8A	PESEX	VHF	right	206 (26)°	4000ft - 9000ft	1.0min timed	200
NAKO4B	EKMAR	VHF	left	224 (44)°	15000ft - 20000ft	DME 8.0mi	230
NAKO4B	RINOR	VHF	left	45 (225)°	15000ft - 20000ft	1.5min timed	230
NAKO4B	UPKAT	VHF	left	26 (206)°	4000ft - 9000ft	1.0min timed	200
NAKO4D	EKMAR	VHF	left	224 (44)°	15000ft - 20000ft	DME 8.0mi	230
NAKO4D	PINIM	VHF	right	294 (114)°	7000ft - 14000ft	1.0min timed	230
NAKO4D	UMUPI	VHF	right	2 (182)°	15000ft - 20000ft	DME 8.0mi	230
NAKO4D	UPKAT	VHF	left	26 (206)°	4000ft - 9000ft	1.0min timed	200
NAKO8A	ADSAD	VHF	right	164 (344)°	15000ft - 20000ft	DME 8.0mi	230
NAKO8A	PESEX	VHF	right	206 (26)°	4000ft - 9000ft	1.0min timed	200
TROI4B	EKMAR	VHF	left	224 (44)°	15000ft - 20000ft	DME 8.0mi	230
TROI4B	RINOR	VHF	left	45 (225)°	15000ft - 20000ft	1.5min timed	230
TROI4B	UPKAT	VHF	left	26 (206)°	4000ft - 9000ft	1.0min timed	200
TROI4D	EKMAR	VHF	left	224 (44)°	15000ft - 20000ft	DME 8.0mi	230
TROI4D	PINIM	VHF	right	294 (114)°	7000ft - 14000ft	1.0min timed	230
TROI4D	UMUPI	VHF	right	2 (182)°	15000ft - 20000ft	DME 8.0mi	230
TROI4D	UPKAT	VHF	left	26 (206)°	4000ft - 9000ft	1.0min timed	200
TROI8A	ADSAD	VHF	right	164 (344)°	15000ft - 20000ft	DME 8.0mi	230
TROI8A	PESEX	VHF	right	206 (26)°	4000ft - 9000ft	1.0min timed	200
UNPO4B	EKMAR	VHF	left	224 (44)°	15000ft - 20000ft	DME 8.0mi	230
UNPO4B	RINOR	VHF	left	45 (225)°	15000ft - 20000ft	1.5min timed	230
UNPO4B	UPKAT	VHF	left	26 (206)°	4000ft - 9000ft	1.0min timed	200
UNPO5D	EKMAR	VHF	left	224 (44)°	15000ft - 20000ft	DME 8.0mi	230
UNPO5D	PINIM	VHF	right	294 (114)°	7000ft - 14000ft	1.0min timed	230
UNPO5D	UMUPI	VHF	right	2 (182)°	15000ft - 20000ft	DME 8.0mi	230
UNPO5D	UPKAT	VHF	left	26 (206)°	4000ft - 9000ft	1.0min timed	200
UNPO5K	EKMAR	VHF	left	224 (44)°	15000ft - 20000ft	DME 8.0mi	230
UNPO5K	PESEX	VHF	right	206 (26)°	4000ft - 9000ft	1.0min timed	200
UNPO8A	EKMAR	VHF	left	224 (44)°	15000ft - 20000ft	DME 8.0mi	230
UNPO8A	PESEX	VHF	right	206 (26)°	4000ft - 9000ft	1.0min timed	200
XAMA5B	RINOR	VHF	left	45 (225)°	15000ft - 20000ft	1.5min timed	230
XAMA5B	UPKAT	VHF	left	26 (206)°	4000ft - 9000ft	1.0min timed	200
XAMA7D	BADUM	VHF	right	36 (216)°	15000ft - 24000ft	1.5min timed	240
XAMA7D	UMUPI	VHF	right	2 (182)°	15000ft - 20000ft	DME 8.0mi	230
XAMA7D	UPKAT	VHF	left	26 (206)°	4000ft - 9000ft	1.0min timed	200
XAMA7K	PESEX	VHF	right	206 (26)°	4000ft - 9000ft	1.0min timed	200
XAMA8A	PESEX	VHF	right	206 (26)°	4000ft - 9000ft	1.0min timed	200
XAMA9C	BADUM	VHF	right	36 (216)°	15000ft - 24000ft	1.5min timed	240
XAMA9C	EKMAR	VHF	left	224 (44)°	15000ft - 20000ft	DME 8.0mi	230
XAMA9C	PESEX	VHF	right	206 (26)°	4000ft - 9000ft	1.0min timed	200
XAMA9C	PINIM	VHF	right	294 (114)°	7000ft - 14000ft	1.0min timed	230
XAMA9C	UMUPI	VHF	right	2 (182)°	15000ft - 20000ft	DME 8.0mi	230
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
