Airports for X-Plane

Geneva

Airport details

CountrySwitzerland
StateGeneva
RegionLS
AirspaceSwitzerland Ctr
MunicipalityLe Grand-Saconnex
Elevation1410ft (430m)
TimezoneGMT +1
Coordinates46.23762, 6.10214
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLSGG
IATA codeGVA
FAA coden/a

Communication

Geneva ATIS135.580
Geneva ATIS124.750
Geneva ATIS135.575
Geneva Geneva Apron121.850
Geneva Geneva Ground121.675
Geneva Geneva Tower (auxiliary)119.900
Geneva Geneva Tower (instructed by ATC)119.700
Geneva Geneva Tower118.700
Geneva Geneva Departure (instructed by ATC)121.300
Geneva Geneva Final120.305
Geneva Geneva Arrival136.250
Geneva Geneva Approach (instructed by ATC)131.325
Geneva Geneva Departure119.530

Approach frequencies

ILS-cat-IIIRW22108.718.00mi
ILS-cat-IRW04110.918.00mi
3° GSRW04110.918.00mi
3° GSRW22108.718.00mi
Nearby Points of Interest:
Archives of the International Committee of the Red Cross
-
Military Museum of Geneva
-
Institut et Musée des Suisses dans le monde
-
Union Internationale des Télécommunications / Internationale Fernmeldeunion
-
École Geisendorf, Genève
-
Château du Reposoir
-
Cintia Valeria Ramos
-
Fonds cantonal d'art contemporain, Genève
-
Palais Wilson
-
old “Credit Lyonnais”
-
Conservatoire de Musique de Genève
-
place Neuve
-
Tavel House
-
Archives d'État de Genève
-
Bibliothèque de Genève
-
Archives de la ville de Genève
-
Geneva
-
Plonjon
-
Bibliothèque d'art et d'archéologie
-
Geneva iconography centre
-
Onex
-
Villa Diodati
-
Archives communales de Carouge
-
Carouge
-
Bellerive Castle

Runway info

Runway 04 / 22
 length3900m (12795ft)
 bearing56° / 236°
 width55m (180ft)
 surfaceconcrete
 displ threshold329m (1079ft) / 0m (0ft)
 blast zone20m (66ft) / 20m (66ft)
Runway 04L / 22R
 length823m (2700ft)
 bearing56° / 236°
 width30m (98ft)
 surfacegrass
 displ threshold186m (610ft) / 304m (997ft)

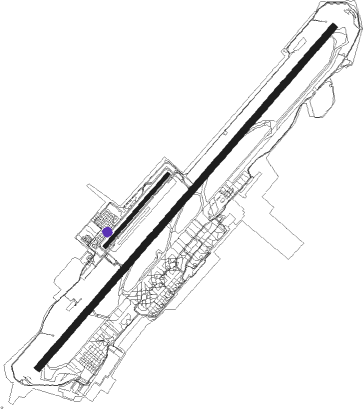

Airport layout - parking location L5


Taxiway locations
Parking locations

Nearby beacons

codeidentifierdistbearingfrequency
GVAGENEVA VOR/DME1.562°115.75
PASPASSEIRY VOR/DME6.1234°116.60
GLAGLAND NDB11.840°375
SPRST PREX VOR/DME19.956°113.90
ATANNECY NDB22.8192°384
CBYCHAMBERY VOR/DME25.7224°115.40
LAPPRAZ DME29.335°110.65
CHCHAMBERY NDB39.8199°346
LTPLA TOUR DU PIN VOR/DME52.8222°115.55
DODOLE NDB55.3313°309
LPSLES EPLATURES NDB58.239°403
EGGRENOBLE NDB60.2219°397
WSGRENOBLE NDB65.8227°291

Departure and arrival routes

Transition altitude7000ft
SID end pointsdistanceoutbound heading
RW04
 MOLU4N27mi70°
 ROCA5Q, ROCA5P, ROCA5N37mi132°
 MEDA5P, MEDA5N, MEDA5Q68mi139°
 BALS9N46mi191°
 BELU6N, BELU6P40mi222°
 DEPU4T, DEPU4P32mi243°
 SIRO7N54mi309°
 ARBO8N45mi354°
RW22
 KONI6C, KONI6A, KONI5J, KONI4D25mi47°
 MOLU4A27mi70°
 ROCA5B, ROCA5C, ROCA5A37mi132°
 MEDA5A, MEDA5B, MEDA5C68mi139°
 BALS7A46mi191°
 BELU6A40mi222°
 DEPU4A32mi243°
 DIPI6A54mi309°

STAR starting pointsdistanceinbound heading
ALL
 DJL7S74.5136°
 FRI2S, FRI2T56.5244°
 BANK8S46.9294°
RW04
 BELU3N39.842°
 LUSA2N46.1115°
 DJL2N74.5136°
 AKIT2N62.7209°
 BENO1N, BENO1P66.1233°
 ULME1P, ULME1N65.3239°
 BANK3N46.9294°
 KINE2N60.9324°
RW22
 BELU3S, BELU3R39.842°
 LUSA2R46.1115°
 DJL2R74.5136°
 AKIT3R62.7209°
 BENO1R, BENO1T66.1233°
 ULME1R65.3239°
 BANK3R46.9294°
 KINE2R60.9324°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW22SPR (236°)SPR 7000ft
65NM (1mi, 236°) 7000ft
GG811 (6mi, 236°) 4930ft
PETAL (turn) 4640ft
GG808 (2mi, 236°) 4000ft
 RNAVGG808 4000ft
LSGG (9mi, 237°) 1423ft
GG803 (8mi, 234°)
SPR (28mi, 56°) 7000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AKIT2NDINIGVHFleft323 (143)°8000ft - 24000ftDME 7.0mi230
AKIT3RDINIGVHFleft323 (143)°8000ft - 24000ftDME 7.0mi230
BANK3NGOLEBVHFright167 (347)°20000ft - 24000ft1.0min timed250
BANK3RGOLEBVHFright167 (347)°20000ft - 24000ft1.0min timed250
BANK8SGOLEBVHFright167 (347)°20000ft - 24000ft1.0min timed250
BANK8SGVANDBright26 (206)°7000ft - 15000ft1.0min timed230
BELU3NCBYNDBright250 (70)°6500ft - 9000ft1.0min timed170
BELU3NGVANDBright26 (206)°7000ft - 15000ft1.0min timed230
BELU3RCBYNDBright250 (70)°6500ft - 9000ft1.0min timed170
BELU3SGVANDBright26 (206)°7000ft - 15000ft1.0min timed230
BENO1NNEMOSVHFright49 (229)°11000ft - 23000ft1.0min timed230
BENO1PNEMOSVHFright49 (229)°11000ft - 23000ft1.0min timed230
BENO1PVADARVHFright49 (229)°9000ft - 23000ft1.0min timed230
BENO1RNEMOSVHFright49 (229)°11000ft - 23000ft1.0min timed230
BENO1RSPRNDBright44 (224)°7000ft - 23000ft1.0min timedICAO rules
BENO1RVADARVHFright49 (229)°9000ft - 23000ft1.0min timed230
BENO1TNEMOSVHFright49 (229)°11000ft - 23000ft1.0min timed230
BENO1TSPRNDBright44 (224)°7000ft - 23000ft1.0min timedICAO rules
DJL2NDINIGVHFleft323 (143)°8000ft - 24000ftDME 7.0mi230
DJL2RDINIGVHFleft323 (143)°8000ft - 24000ftDME 7.0mi230
DJL7SDINIGVHFleft323 (143)°8000ft - 24000ftDME 7.0mi230
DJL7SGVANDBright26 (206)°7000ft - 15000ft1.0min timed230
FRI2SGVANDBright26 (206)°7000ft - 15000ft1.0min timed230
FRI2TGVANDBright26 (206)°7000ft - 15000ft1.0min timed230
FRI2TROMOMVHFright59 (239)°9000ft - 12000ftDME 3.0mi170
KINE2NGOLEBVHFright167 (347)°20000ft - 24000ft1.0min timed250
KINE2RGOLEBVHFright167 (347)°20000ft - 24000ft1.0min timed250
LUSA2NDINIGVHFleft323 (143)°8000ft - 24000ftDME 7.0mi230
LUSA2RDINIGVHFleft323 (143)°8000ft - 24000ftDME 7.0mi230
ULME1NVADARVHFright49 (229)°9000ft - 23000ft1.0min timed230
ULME1PVADARVHFright49 (229)°9000ft - 23000ft1.0min timed230
ULME1RSPRNDBright44 (224)°7000ft - 23000ft1.0min timedICAO rules
ULME1RVADARVHFright49 (229)°9000ft - 23000ft1.0min timed230
*) magnetic outbound (inbound) holding course
