Airports for X-Plane

Sion

Airport details

CountrySwitzerland
StateWallis
RegionLS
AirspaceSwitzerland Ctr
MunicipalitySion
Elevation1583ft (482m)
TimezoneGMT +1
Coordinates46.21592, 7.31740
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLSGS
IATA codeSIR
FAA coden/a

Communication

Sion LSGG ATIS Geneve135.575
Sion Ground Control121.700
Sion SWISS MILITARY RADAR134.275
Sion Tower118.275
Sion SION Approach122.350
Sion SION Radar Approach126.825
Sion Departure133.000

Approach frequencies

IGSRW25110.718.00mi
6° GSRW25110.718.00mi

Runway info

Runway 07 / 25
 length1995m (6545ft)
 bearing78° / 258°
 width40m (131ft)
 surfaceasphalt
 displ threshold53m (174ft) / 52m (171ft)
 blast zone198m (650ft) / 198m (650ft)
Runway 07L / 25R
 length655m (2149ft)
 bearing78° / 258°
 width30m (98ft)
 surfacegrass
 displ threshold0m (0ft) / 101m (331ft)
 blast zone54m (177ft) / 0m (0ft)

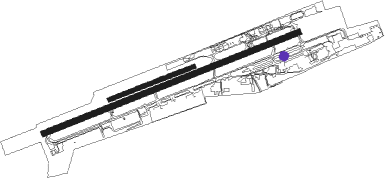

Airport layout - parking location MIL16


Taxiway locations

 A  C  D  E  F  G  H  S3
 S4
Parking locations

 10  11  12  13  2  3  5  6
 General  Glider  GVM1  GVM3  GVM5  H  H1A  H21
 H22  H4  H5  H6  H7  H71  H72  H8
 H9  HA  Hangar  HD  HOT  I1  I2  J1
 J2  J3  K1  K2  K3  L1  L2  L3
 Maint  Mil  MIL1  MIL13  MIL14  MIL15  MIL16  MIL17
 MIL18  MIL19  MIL2  MIL20  MIL21  MIL22  MIL23  MIL24
 MIL25  MIL26  MIL27  MIL28  MIL29  MIL3  MIL30  MIL31
 MIL32  MIL33  MIL4  MIL5  MIL6  MIL7  MIL8  MIL9
 Ramp  Run  Services  West

Nearby beacons

codeidentifierdistbearingfrequency
SIOSION VOR/DME1.1269°112.15
SCSAOSTA VOR/DME28.2177°109.25
SVCCOMAGNE (AOSTA) NDB32.7140°418
FRIFRIBOURG VOR/DME33.9351°110.85
SPRST PREX VOR/DME39.1286°113.90
LAPPRAZ DME46.5297°110.65
LPSLES EPLATURES NDB56.4329°403
GREGRENCHEN VOR/DME58.26°115.45
CSLCASELLE VOR/DME61.4162°116.75
WILWILLISAU VOR/DME62.631°116.90

Departure and arrival routes

Transition altitude17000ft
SID end pointsdistanceoutbound heading
RW25
 ROCA3U, ROCA3V, ROCA3W40mi235°
 GOLE3U, GOLE3V, GOLE3W33mi258°

STAR starting pointsdistanceinbound heading
ALL
 VALO1W17.166°
 VADA2N35.3128°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW25GRANA (253°)GRANA 17000ft
GS615 (31mi, 55°)
GS616 (14mi, 126°) 17000ft
 RNAVGS616 17000ft
GS608 (4mi, 239°) 17000ft
GS607 (11mi, 240°)
GS606 (4mi, 256°)
GS605 (13mi, 270°)
GS604 (2mi, 261°)
GS617 (11mi, 252°) 1632ft
GS609 (4mi, 252°)
GS610 (turn)
GS611 (17mi, 244°)
GS612 (8mi, 342°)
GS613 (11mi, 96°)
SIO (9mi, 63°)
GRANA (11mi, 74°) 17000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
VADA2NGRANAVHFright246 (66)°17000ft - 24000ft1.5min timed220
VALO1WGRANAVHFright246 (66)°17000ft - 24000ft1.5min timed220
*) magnetic outbound (inbound) holding course
