Airports for X-Plane offers a convenient way to explore airports and their related communication information for the X-Plane flight simulator. It only uses data from the X-Plane flight simulator itself, and is therefore more reliable than the data that comes from real aviation websites. You can search for airports by using the ICAO code, or browse for airports per country and state. The information displayed is categorized by airport details, runway information, airport communication, approach frequencies (ILS and Glidepath details), details of nearby beacons, SIDs, STARs and approach procedures.

airstrip train station nation arrival public transport terminal heliport embassy jet flights takeoff grass international airport near customs stopover seaplane military stolport helipad

Airports for X-Plane

Zurich

Airport details

CountrySwitzerland
StateZurich
RegionLS
AirspaceSwitzerland Ctr
MunicipalityKloten
Elevation1416ft (432m)
TimezoneGMT +1
Coordinates47.45814, 8.57186
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLSZH
IATA codeZRH
FAA coden/a

Communication

Zurich ATIS Departure129.005
Zurich ATIS128.525
Zurich ATIS Arrival125.730
Zurich DEL121.925
Zurich APRON S121.750
Zurich APRON N127.750
Zurich Ground Control121.900
Zurich Tower118.100
Zurich Departure125.955

Approach frequencies

ILS-cat-IIIRW14111.7518.00mi
ILS-cat-IIIRW16110.518.00mi
ILS-cat-IRW34110.7518.00mi
ILS-cat-IRW28109.7518.00mi
3.3° GSRW34110.7518.00mi
3.3° GSRW28109.7518.00mi
3° GSRW14111.7518.00mi
3° GSRW16110.518.00mi
Nearby Points of Interest:
reformed rectory, former choir house of St. Peter
-
Schulschwimmanlage Stettbach
-
Freibad Allenmoos
-
Staatsarchiv des Kantons Zürich
-
Bülach
-
gta Archives
-
Thomas Mann Archives
-
MoneyMuseum
-
Archive for the History of Medicine
-
Beckenhof
-
Dübendorf Air Base
-
Befestigte Höhensiedlung Beerenberg
-
University of the Arts
-
Federal Observatory
-
Zürich
-
Lokomotivdepot F (Zürich)
-
University Hospital Zurich
-
ETH Library
-
Universität Zürich. Archäologische Sammlung
-
Palaeontological Museum of the University of Zurich
-
Güterbahnhof Zürich
-
Archives of Contemporary History
-
University of Zurich, main building
-
Doldertalhäuser
-
Medizinhistorisches Museum der Universität Zürich

Runway info

Runway 16 / 34
 length3721m (12208ft)
 bearing145° / 325°
 width60m (197ft)
 surfaceconcrete
 displ threshold0m (0ft) / 470m (1542ft)
 blast zone14m (46ft) / 12m (39ft)
Runway 14 / 32
 length3303m (10837ft)
 bearing126° / 306°
 width60m (197ft)
 surfaceconcrete
 displ threshold150m (492ft) / 0m (0ft)
 blast zone16m (52ft) / 23m (75ft)
Runway 10 / 28
 length2502m (8209ft)
 bearing94° / 274°
 width58m (190ft)
 surfaceconcrete
 blast zone161m (528ft) / 82m (269ft)

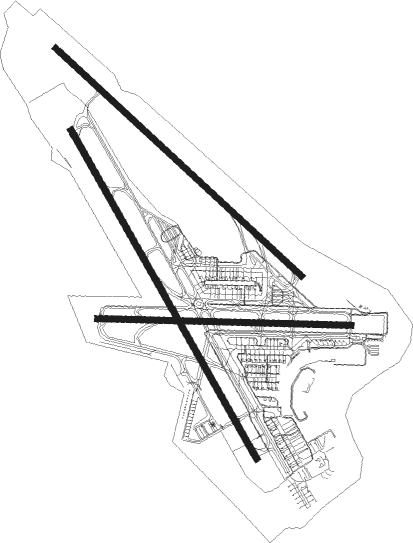

Airport layout


Taxiway locations

 A  B  B7  B9  C  C1  D  E
 E1  E2  E3  E4  E5  E6  E7  E8
 E9  F  G  H  H1  H2  H3  J
 K  L  L7  L9  LINK7  R7  R8
Parking locations

 GAC  Gate  Heliport  REGA  Stand

Nearby beacons

codeidentifierdistbearingfrequency
KLOKLOTEN (ZURICH) VOR/DME1268°114.85
ZUEZURICH EAST VOR/DME12.861°110.05
TRADME14.9330°114.30
WILWILLISAU VOR/DME31.8247°116.90
HOCDME36.8271°113.20
FHDDME39.877°112.60
SULSULZ VOR55.55°116.10
LHRLAHR NDB61.6319°337
LRDDME62.1321°108.05

Departure and arrival routes

Transition altitude7000ft
SID end pointsdistanceoutbound heading
RW10
 ZUE2D13mi61°
 DEGE2E, DEGE1B26mi94°
 GERS1E, GERS2C25mi185°
 WIL3C, WIL2D32mi247°
 VEBI3E, VEBI1B26mi251°
RW16
 DEGE1T, DEGE2R, DEGE3S26mi94°
 GERS2S25mi185°
 WIL3Q32mi247°
 VEBI4S, VEBI1T26mi251°
RW28
 ZUE3V13mi61°
 DEGE1X, DEGE1Y, DEGE3W26mi94°
 GERS2W25mi185°
 VEBI4W, VEBI1Y, VEBI1X26mi251°
RW32
 ZUE5L13mi61°
 DEGE5L, DEGE4N, DEGE1P26mi94°
 GERS1N25mi185°
 VEBI4N26mi251°
RW34
 ZUE5F13mi61°
 DEGE1J, DEGE5F, DEGE4H26mi94°
 GERS1H25mi185°
 VEBI2K, VEBI4H26mi251°

STAR starting pointsdistanceinbound heading
ALL
 DOPI2G32.455°
 BERS2G32.163°
 WIL3Z31.867°
 TRA2A14.9150°
 RILA2A29.2173°
 KELI3G31.1339°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW14AMIKI (256°)AMIKI
ZUE (9mi, 275°)
ZH411 (6mi, 284°) 7000ft
TRA (10mi, 284°) 5000ft
ZH413 (5mi, 238°) 4000ft
RW14GIPOL (95°)GIPOL 7000ft
ZH412 (10mi, 65°) 6000ft
ZH413 (5mi, 73°) 4000ft
RW14RILAX (173°)RILAX
EDUMI (11mi, 197°) 7000ft
TRA (4mi, 197°) 5000ft
ZH413 (5mi, 238°) 4000ft
 RNAVZH413 4000ft
OSNEM (4mi, 126°) 4000ft
LSZH (10mi, 126°) 1452ft
ZH415 (3mi, 128°)
ZH416 (5mi, 53°) 4000ft
ZH417 (5mi, 23°)
ZUE (4mi, 65°) 6000ft
AMIKI (9mi, 95°) 7000ft
RW28AMIKI (256°)AMIKI
ZH382 (17mi, 304°)
ZH450 (7mi, 257°)
ZH452 (4mi, 163°)
ZH454 (12mi, 119°)
ZH456 (5mi, 94°)
ZH458 (5mi, 94°)
ZH460 (7mi, 189°) 7000ft
ZH464 (5mi, 274°)
RAMEM (4mi, 274°) 5000ft
RW28GIPOL (95°)GIPOL
ZH445 (6mi, 60°)
ZH447 (9mi, 135°)
ZH449 (7mi, 135°)
ZH451 (7mi, 94°)
ZH453 (5mi, 94°)
ZH455 (5mi, 94°)
ZH457 (5mi, 94°)
ZH459 (5mi, 94°)
ZH460 (7mi, 9°) 7000ft
ZH464 (5mi, 274°)
RAMEM (4mi, 274°) 5000ft
RW28RILAX (173°)RILAX
ZH446 (5mi, 163°)
ZH448 (4mi, 163°)
ZH450 (4mi, 163°)
ZH452 (4mi, 163°)
ZH454 (12mi, 119°)
ZH456 (5mi, 94°)
ZH458 (5mi, 94°)
ZH460 (7mi, 189°) 7000ft
ZH464 (5mi, 274°)
RAMEM (4mi, 274°) 5000ft
 RNAVRAMEM 5000ft
LSZH (10mi, 275°) 1467ft
ZH465 (5mi, 273°) 4000ft
ZH466 (8mi, 203°)
ZH467 (12mi, 252°)
ZH468 (8mi, 289°)
GIPOL (12mi, 22°) 7000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BERS2GBERSUVHFright229 (49)°10000ft - 20000ft1.0min timed230
BERS2GGIPOLVHFright258 (78)°7000ft - 24000ft1.0min timed230
BLM3GGIPOLVHFright258 (78)°7000ft - 24000ft1.0min timed230
DOPI2GGIPOLVHFright258 (78)°7000ft - 24000ft1.0min timed230
KELI3GGIPOLVHFright258 (78)°7000ft - 24000ft1.0min timed230
KELI3GMOSITVHFright171 (351)°14000ft - 20000ft1.0min timed230
NEGR2AAMIKIVHFright94 (274)°7000ft - 24000ft1.0min timed230
RILA2AAMIKIVHFright94 (274)°7000ft - 24000ft1.0min timed230
RILA2ARILAXVHFright8 (188)°7000ft - 24000ft1.0min timedICAO rules
TRA2AAMIKIVHFright94 (274)°7000ft - 24000ft1.0min timed230
WIL3ZGIPOLVHFright258 (78)°7000ft - 24000ft1.0min timed230
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
