Airports for X-Plane

Zurich

Airport details

CountrySwitzerland
StateZurich
RegionLS
AirspaceSwitzerland Ctr
MunicipalityKloten
Elevation1416ft (432m)
TimezoneGMT +1
Coordinates47.45814, 8.57186
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLSZH
IATA codeZRH
FAA coden/a

Communication

Zurich ATIS128.525
Zurich ATIS Arrival125.730
Zurich ATIS Departure129.005
Zurich DEL121.925
Zurich APRON N127.750
Zurich Ground Control121.900
Zurich APRON S121.750
Zurich Tower118.100
Zurich Departure125.955

Approach frequencies

ILS-cat-IIIRW14111.7518.00mi
ILS-cat-IIIRW16110.518.00mi
ILS-cat-IRW34110.7518.00mi
ILS-cat-IRW28109.7518.00mi
3.3° GSRW34110.7518.00mi
3.3° GSRW28109.7518.00mi
3° GSRW14111.7518.00mi
3° GSRW16110.518.00mi
Nearby Points of Interest:
reformed rectory, former choir house of St. Peter
-
Schulschwimmanlage Stettbach
-
Freibad Allenmoos
-
Staatsarchiv des Kantons Zürich
-
Bülach
-
gta Archives
-
Thomas Mann Archives
-
MoneyMuseum
-
Archive for the History of Medicine
-
Beckenhof
-
Dübendorf Air Base
-
Befestigte Höhensiedlung Beerenberg
-
University of the Arts
-
Federal Observatory
-
Zürich
-
Lokomotivdepot F (Zürich)
-
University Hospital Zurich
-
ETH Library
-
Universität Zürich. Archäologische Sammlung
-
Palaeontological Museum of the University of Zurich
-
Güterbahnhof Zürich
-
Archives of Contemporary History
-
University of Zurich, main building
-
Doldertalhäuser
-
Medizinhistorisches Museum der Universität Zürich

Runway info

Runway 16 / 34
 length3721m (12208ft)
 bearing145° / 325°
 width60m (197ft)
 surfaceconcrete
 displ threshold0m (0ft) / 470m (1542ft)
 blast zone14m (46ft) / 12m (39ft)
Runway 14 / 32
 length3303m (10837ft)
 bearing126° / 306°
 width60m (197ft)
 surfaceconcrete
 displ threshold150m (492ft) / 0m (0ft)
 blast zone16m (52ft) / 23m (75ft)
Runway 10 / 28
 length2502m (8209ft)
 bearing94° / 274°
 width58m (190ft)
 surfaceconcrete
 blast zone161m (528ft) / 82m (269ft)

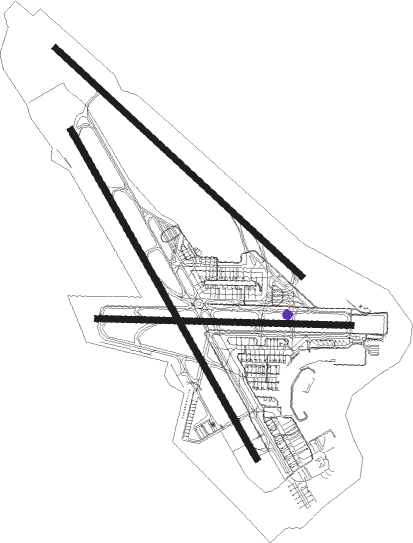

Airport layout - taxiway location C1


Taxiway locations

 A  B  B7  B9  C  C1  D  E
 E1  E2  E3  E4  E5  E6  E7  E8
 E9  F  G  H  H1  H2  H3  J
 K  L  L7  L9  LINK7  R7  R8
Parking locations

 GAC  Gate  Heliport  REGA  Stand

Nearby beacons

codeidentifierdistbearingfrequency
KLOKLOTEN (ZURICH) VOR/DME1268°114.85
ZUEZURICH EAST VOR/DME12.861°110.05
TRADME14.9330°114.30
WILWILLISAU VOR/DME31.8247°116.90
HOCDME36.8271°113.20
FHDDME39.877°112.60
SULSULZ VOR55.55°116.10
LHRLAHR NDB61.6319°337
LRDDME62.1321°108.05

Departure and arrival routes

Transition altitude7000ft
SID end pointsdistanceoutbound heading
RW10
 ZUE2D13mi61°
 DEGE2E, DEGE1B26mi94°
 GERS1E, GERS2C25mi185°
 WIL3C, WIL2D32mi247°
 VEBI3E, VEBI1B26mi251°
RW16
 DEGE1T, DEGE2R, DEGE3S26mi94°
 GERS2S25mi185°
 WIL3Q32mi247°
 VEBI4S, VEBI1T26mi251°
RW28
 ZUE3V13mi61°
 DEGE1X, DEGE1Y, DEGE3W26mi94°
 GERS2W25mi185°
 VEBI4W, VEBI1Y, VEBI1X26mi251°
RW32
 ZUE5L13mi61°
 DEGE5L, DEGE4N, DEGE1P26mi94°
 GERS1N25mi185°
 VEBI4N26mi251°
RW34
 ZUE5F13mi61°
 DEGE1J, DEGE5F, DEGE4H26mi94°
 GERS1H25mi185°
 VEBI2K, VEBI4H26mi251°

STAR starting pointsdistanceinbound heading
ALL
 DOPI2G32.455°
 BERS2G32.163°
 WIL3Z31.867°
 TRA2A14.9150°
 RILA2A29.2173°
 KELI3G31.1339°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW14AMIKI (256°)AMIKI
ZUE (9mi, 275°)
ZH411 (6mi, 284°) 7000ft
TRA (10mi, 284°) 5000ft
ZH413 (5mi, 238°) 4000ft
RW14GIPOL (95°)GIPOL 7000ft
ZH412 (10mi, 65°) 6000ft
ZH413 (5mi, 73°) 4000ft
RW14RILAX (173°)RILAX
EDUMI (11mi, 197°) 7000ft
TRA (4mi, 197°) 5000ft
ZH413 (5mi, 238°) 4000ft
 RNAVZH413 4000ft
OSNEM (4mi, 126°) 4000ft
LSZH (10mi, 126°) 1452ft
ZH415 (3mi, 128°)
ZH416 (5mi, 53°) 4000ft
ZH417 (5mi, 23°)
ZUE (4mi, 65°) 6000ft
AMIKI (9mi, 95°) 7000ft
RW28AMIKI (256°)AMIKI
ZH382 (17mi, 304°)
ZH450 (7mi, 257°)
ZH452 (4mi, 163°)
ZH454 (12mi, 119°)
ZH456 (5mi, 94°)
ZH458 (5mi, 94°)
ZH460 (7mi, 189°) 7000ft
ZH464 (5mi, 274°)
RAMEM (4mi, 274°) 5000ft
RW28GIPOL (95°)GIPOL
ZH445 (6mi, 60°)
ZH447 (9mi, 135°)
ZH449 (7mi, 135°)
ZH451 (7mi, 94°)
ZH453 (5mi, 94°)
ZH455 (5mi, 94°)
ZH457 (5mi, 94°)
ZH459 (5mi, 94°)
ZH460 (7mi, 9°) 7000ft
ZH464 (5mi, 274°)
RAMEM (4mi, 274°) 5000ft
RW28RILAX (173°)RILAX
ZH446 (5mi, 163°)
ZH448 (4mi, 163°)
ZH450 (4mi, 163°)
ZH452 (4mi, 163°)
ZH454 (12mi, 119°)
ZH456 (5mi, 94°)
ZH458 (5mi, 94°)
ZH460 (7mi, 189°) 7000ft
ZH464 (5mi, 274°)
RAMEM (4mi, 274°) 5000ft
 RNAVRAMEM 5000ft
LSZH (10mi, 275°) 1467ft
ZH465 (5mi, 273°) 4000ft
ZH466 (8mi, 203°)
ZH467 (12mi, 252°)
ZH468 (8mi, 289°)
GIPOL (12mi, 22°) 7000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BERS2GBERSUVHFright229 (49)°10000ft - 20000ft1.0min timed230
BERS2GGIPOLVHFright258 (78)°7000ft - 24000ft1.0min timed230
BLM3GGIPOLVHFright258 (78)°7000ft - 24000ft1.0min timed230
DOPI2GGIPOLVHFright258 (78)°7000ft - 24000ft1.0min timed230
KELI3GGIPOLVHFright258 (78)°7000ft - 24000ft1.0min timed230
KELI3GMOSITVHFright171 (351)°14000ft - 20000ft1.0min timed230
NEGR2AAMIKIVHFright94 (274)°7000ft - 24000ft1.0min timed230
RILA2AAMIKIVHFright94 (274)°7000ft - 24000ft1.0min timed230
RILA2ARILAXVHFright8 (188)°7000ft - 24000ft1.0min timedICAO rules
TRA2AAMIKIVHFright94 (274)°7000ft - 24000ft1.0min timed230
WIL3ZGIPOLVHFright258 (78)°7000ft - 24000ft1.0min timed230
*) magnetic outbound (inbound) holding course
