Airports4XP | LTAC | Ankara

Ankara - Esenboga

Airport details

Country	Turkey
State	Ankara
Region	LT
Airspace	Ankara Ctr
Municipality	Çubuk
Elevation	3125ft (952m)
Timezone	GMT +3
Coordinates	40.13108, 32.99089
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	LTAC
IATA code	ESB
FAA code	n/a

Communication

Esenboga ATIS	123.600
Esenboga Ground Control	121.900
Esenboga Tower	118.100
Esenboga Approach	122.100
Esenboga Approach	119.600
Esenboga Approach	120.600
Esenboga Departure	119.100

Approach frequencies

ILS-cat-III	RW03R	110.3	18.00mi
ILS-cat-II	RW03L	108.9	18.00mi
ILS-cat-I	RW21R	108.3	18.00mi
ILS-cat-I	RW21L	108.1	18.00mi
3° GS	RW03L	108.9	18.00mi
3° GS	RW03R	110.3	18.00mi
3° GS	RW21R	108.3	18.00mi
3° GS	RW21L	108.1	18.00mi

Runway info

Runway 03R / 21L
	length	3750m (12303ft)
	bearing	44° / 224°
	width	59m (194ft)
	surface	asphalt
	blast zone	65m (213ft) / 60m (197ft)
Runway 03L / 21R
	length	3389m (11119ft)
	bearing	44° / 224°
	width	45m (148ft)
	surface	concrete
	blast zone	0m (0ft) / 57m (187ft)
Runway 03 / 21
	length	3752m (12310ft)
	bearing	44° / 224°
	width	45m (148ft)
	surface	asphalt
	blast zone	60m (197ft) / 60m (197ft)

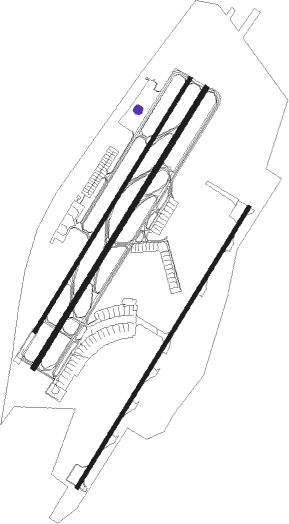

Airport layout - parking location D3

Taxiway locations

A	A1	A2	A3	AB	AC	B	B1
B2	C	C1	D	D1	D2	E	E1
E2	F	G	G1	G3	G4	H	J

Parking locations

1-C	10-D	101-E	102-E	103-D	104-C	105-D	106-C
107-D	108-C	109-D	11-D	110-C	111-D	112-C	113-D
114-D	115-C	116-E	117-D	118-D	119-C	12-D	120-D
13-D	14-D	15-D	16-D	17-D	18-C	19-C	1A-B
2-C	20-C	201-D	202-D	203-D	204-D	205-D	206-D
207-D	21-C	22-B	3-C	4-C	5-C	6-D	602
603	604	605	606	607	608	609	610
611	612	613	614	615	616	617	618
619	620	621	622	623	624	625	626
627	628	629	630	631	7-D	701	702
703	704	8-C	9-C	A1	A3	C1	C2
D3	F1	F3	G1	G2	G3	H1	H2

Nearby beacons

code	identifier	dist	bearing	frequency
ESB	ESENBOGA (ANKARA) VOR/DME	1.3	54°	112.10
NK	ESENBOGA (ANKARA) NDB	1.5	211°	305
AN	ESENBOGA (ANKARA) NDB	4.9	220°	285
BUK	CUBUK (ANKARA) NDB	8.4	46°	425
BAG	BAGLUM (ANKARA) VOR/DME	9	251°	113.10
ANK	ANKARA NDB	13	222°	356
ETI	ANKARA-ETIMESGUT TACAN	17.8	241°	116.60
ZIR	MURTED TACAN	19.2	264°	114.50
GBI	GOLBASI NDB	26.3	202°	315
HAY	HAYMANA NDB	47.2	215°	350

Departure and arrival routes

Transition altitude

10000ft

SID end points		distance	outbound heading
RW03 (ALL)
	ASTA1A, ASTA1C	37mi	12°
	ILHA1C, ILHA1A	38mi	66°
	GURB1A, GURB1C	39mi	87°
	GOBI1C	46mi	112°
	KUBE1A	34mi	116°
	BALA1C	54mi	130°
	YUCE1A	43mi	133°
	BAKI1A	44mi	154°
	AZBU1C	48mi	154°
	ERKU1C	55mi	183°
	TELV1A	46mi	185°
	HALI1A, HALI1C, HALI1U	53mi	221°
	UMRU1C	51mi	273°
	PETA1A	42mi	273°
	LATG1A	43mi	283°
	ABIS1C	50mi	283°
	YAVR1C	60mi	291°
	SALG1A	42mi	293°
	DERE1C, DERE1A	51mi	306°
RW21 (ALL)
	ASTA1B	37mi	12°
	NEMR1D	48mi	15°
	ILHA1B	38mi	66°
	EKME1D	49mi	69°
	GURB1B	39mi	87°
	BENT1D	44mi	89°
	GOBI1D	46mi	112°
	KUBE1B	34mi	116°
	BALA1D	54mi	130°
	YUCE1B	43mi	133°
	BAKI1B	44mi	154°
	AZBU1D	48mi	154°
	TELV1D, TELV1B	46mi	185°
	HALI1B, HALI1D	53mi	221°
	PETA1D, PETA1B	42mi	273°
	LATG1D, LATG1B	43mi	283°
	YAVR1D	60mi	291°
	SALG1B	42mi	293°
	DERE1B, DERE1D	51mi	306°

STAR starting points		distance	inbound heading
RW03 (ALL)
	ERKU1K	55.0	3°
	TELV1E, TELV1F	45.7	5°
	HALI1E, HALI1K, HALI1F, HALI2K	53.2	41°
	PETA1E, PETA1F, PETA1K	41.8	93°
	LATG1K	42.9	103°
	KIZI1F, KIZI1E	42.2	109°
	YAVR1K	59.5	111°
	SALG1E, SALG1F	41.6	113°
	NASI1E, NASI1F	40.0	124°
	DERE1K	50.5	126°
	ASTA1E, ASTA1F	37.1	192°
	NEMR1K	47.6	195°
	ILHA1F, ILHA1E	37.6	246°
	EKME1K	49.0	249°
	GURB1K, GURB1E, GURB1F	38.7	267°
	GOBI1K	46.4	292°
	KUBE1F, KUBE1E	33.6	296°
	YUCE1K, YUCE1F, YUCE1E	43.0	313°
	ARMU1K	59.2	331°
	BAKI1E, BAKI1F	44.3	334°
RW21 (ALL)
	TELV1N, TELV1P, TELV1G	45.7	5°
	HALI1P, HALI1N, HALI1M, HALI1G	53.2	41°
	UMRU1P	51.1	93°
	PETA1N, PETA1G	41.8	93°
	LATG1P	42.9	103°
	KIZI1N, KIZI1G	42.2	109°
	YAVR1P	59.5	111°
	SALG1G, SALG1N	41.6	113°
	NASI1G, NASI1N	40.0	124°
	DERE1P	50.5	126°
	ASTA1P, ASTA1G, ASTA1N	37.1	192°
	ILHA1N, ILHA1G, ILHA1P	37.6	246°
	GURB1N, GURB1P, GURB1G	38.7	267°
	GOBI1P	46.4	292°
	KUBE1N, KUBE1G	33.6	296°
	YUCE1P, YUCE1N, YUCE1G	43.0	313°
	BAKI1G, BAKI1N, BAKI1P	44.3	334°

Holding patterns

STAR name	hold at	type	turn	heading*	altitude	leg	speed limit
ARMU1K	NETGO	VHF	left	121 (301)°	> 10000ft	1.0min timed	ICAO rules
ASTA1E	ANK	FIX	left	212 (32)°	> 6500ft	1.0min timed	ICAO rules
ASTA1F	ESB	NDB	right	32 (212)°	> 7000ft	1.0min timed	230
ASTA1G	ESB	NDB	right	32 (212)°	> 7000ft	1.0min timed	230
ASTA1N	BUK	FIX	left	32 (212)°	> 6800ft	1.0min timed	ICAO rules
ASTA1P	MELLI	VHF	left	301 (121)°	> 10000ft	1.0min timed	ICAO rules
BAKI1E	ANK	FIX	left	212 (32)°	> 6500ft	1.0min timed	ICAO rules
BAKI1F	ESB	NDB	right	32 (212)°	> 7000ft	1.0min timed	230
BAKI1G	ESB	NDB	right	32 (212)°	> 7000ft	1.0min timed	230
BAKI1N	BUK	FIX	left	32 (212)°	> 6800ft	1.0min timed	ICAO rules
BAKI1P	SALAZ	VHF	right	122 (302)°	> 10000ft	1.0min timed	ICAO rules
DERE1K	TABIP	VHF	right	32 (212)°	> 10000ft	1.0min timed	ICAO rules
DERE1P	MELLI	VHF	left	301 (121)°	> 10000ft	1.0min timed	ICAO rules
EKME1K	NETGO	VHF	left	121 (301)°	> 10000ft	1.0min timed	ICAO rules
ERKU1K	NETGO	VHF	left	121 (301)°	> 10000ft	1.0min timed	ICAO rules
GOBI1K	NETGO	VHF	left	121 (301)°	> 10000ft	1.0min timed	ICAO rules
GOBI1P	SALAZ	VHF	right	122 (302)°	> 10000ft	1.0min timed	ICAO rules
GURB1E	ANK	FIX	left	212 (32)°	> 6500ft	1.0min timed	ICAO rules
GURB1F	ESB	NDB	right	32 (212)°	> 7000ft	1.0min timed	230
GURB1G	ESB	NDB	right	32 (212)°	> 7000ft	1.0min timed	230
GURB1K	NETGO	VHF	left	121 (301)°	> 10000ft	1.0min timed	ICAO rules
GURB1N	BUK	FIX	left	32 (212)°	> 6800ft	1.0min timed	ICAO rules
GURB1P	SALAZ	VHF	right	122 (302)°	> 10000ft	1.0min timed	ICAO rules
HALI1E	ANK	FIX	left	212 (32)°	> 6500ft	1.0min timed	ICAO rules
HALI1F	ESB	NDB	right	32 (212)°	> 7000ft	1.0min timed	230
HALI1G	ESB	NDB	right	32 (212)°	> 7000ft	1.0min timed	230
HALI1K	NETGO	VHF	left	121 (301)°	> 10000ft	1.0min timed	ICAO rules
HALI1M	BUK	FIX	left	32 (212)°	> 6800ft	1.0min timed	ICAO rules
HALI1N	BUK	FIX	left	32 (212)°	> 6800ft	1.0min timed	ICAO rules
HALI1N	HAY	FIX	right	243 (63)°	14000ft - 65535ft	1.5min timed	ICAO rules
HALI1P	SALAZ	VHF	right	122 (302)°	> 10000ft	1.0min timed	ICAO rules
HAY1E	ANK	FIX	left	212 (32)°	> 6500ft	1.0min timed	ICAO rules
HAY1E	HAY	FIX	right	243 (63)°	14000ft - 65535ft	1.5min timed	ICAO rules
HAY1F	ESB	NDB	right	32 (212)°	> 7000ft	1.0min timed	230
HAY1G	ESB	NDB	right	32 (212)°	> 7000ft	1.0min timed	230
HAY1M	BUK	FIX	left	32 (212)°	> 6800ft	1.0min timed	ICAO rules
HAY1M	HAY	FIX	right	243 (63)°	14000ft - 65535ft	1.5min timed	ICAO rules
HAY1N	BUK	FIX	left	32 (212)°	> 6800ft	1.0min timed	ICAO rules
HAY1N	HAY	FIX	right	243 (63)°	14000ft - 65535ft	1.5min timed	ICAO rules
ILHA1E	ANK	FIX	left	212 (32)°	> 6500ft	1.0min timed	ICAO rules
ILHA1E	ILHAN	VHF	left	63 (243)°	10000ft - 14000ft	1.0min timed	ICAO rules
ILHA1F	ESB	NDB	right	32 (212)°	> 7000ft	1.0min timed	230
ILHA1G	ESB	NDB	right	32 (212)°	> 7000ft	1.0min timed	230
ILHA1N	BUK	FIX	left	32 (212)°	> 6800ft	1.0min timed	ICAO rules
ILHA1N	ILHAN	VHF	left	63 (243)°	10000ft - 14000ft	1.0min timed	ICAO rules
ILHA1P	SALAZ	VHF	right	122 (302)°	> 10000ft	1.0min timed	ICAO rules
KIZI1E	ANK	FIX	left	212 (32)°	> 6500ft	1.0min timed	ICAO rules
KIZI1F	ESB	NDB	right	32 (212)°	> 7000ft	1.0min timed	230
KIZI1G	ESB	NDB	right	32 (212)°	> 7000ft	1.0min timed	230
KIZI1N	BUK	FIX	left	32 (212)°	> 6800ft	1.0min timed	ICAO rules
KUBE1E	ANK	FIX	left	212 (32)°	> 6500ft	1.0min timed	ICAO rules
KUBE1E	KUBER	VHF	left	107 (287)°	10000ft - 13000ft	1.0min timed	ICAO rules
KUBE1F	ESB	NDB	right	32 (212)°	> 7000ft	1.0min timed	230
KUBE1G	ESB	NDB	right	32 (212)°	> 7000ft	1.0min timed	230
KUBE1N	BUK	FIX	left	32 (212)°	> 6800ft	1.0min timed	ICAO rules
KUBE1N	KUBER	VHF	left	107 (287)°	10000ft - 13000ft	1.0min timed	ICAO rules
LATG1K	TABIP	VHF	right	32 (212)°	> 10000ft	1.0min timed	ICAO rules
LATG1P	MELLI	VHF	left	301 (121)°	> 10000ft	1.0min timed	ICAO rules
NASI1E	ANK	FIX	left	212 (32)°	> 6500ft	1.0min timed	ICAO rules
NASI1F	ESB	NDB	right	32 (212)°	> 7000ft	1.0min timed	230
NASI1G	ESB	NDB	right	32 (212)°	> 7000ft	1.0min timed	230
NASI1N	BUK	FIX	left	32 (212)°	> 6800ft	1.0min timed	ICAO rules
NEMR1K	TABIP	VHF	right	32 (212)°	> 10000ft	1.0min timed	ICAO rules
PETA1E	ANK	FIX	left	212 (32)°	> 6500ft	1.0min timed	ICAO rules
PETA1F	ESB	NDB	right	32 (212)°	> 7000ft	1.0min timed	230
PETA1G	ESB	NDB	right	32 (212)°	> 7000ft	1.0min timed	230
PETA1K	TABIP	VHF	right	32 (212)°	> 10000ft	1.0min timed	ICAO rules
PETA1N	BUK	FIX	left	32 (212)°	> 6800ft	1.0min timed	ICAO rules
SALG1E	ANK	FIX	left	212 (32)°	> 6500ft	1.0min timed	ICAO rules
SALG1F	ESB	NDB	right	32 (212)°	> 7000ft	1.0min timed	230
SALG1G	ESB	NDB	right	32 (212)°	> 7000ft	1.0min timed	230
SALG1N	BUK	FIX	left	32 (212)°	> 6800ft	1.0min timed	ICAO rules
TELV1E	ANK	FIX	left	212 (32)°	> 6500ft	1.0min timed	ICAO rules
TELV1F	ESB	NDB	right	32 (212)°	> 7000ft	1.0min timed	230
TELV1G	ESB	NDB	right	32 (212)°	> 7000ft	1.0min timed	230
TELV1N	BUK	FIX	left	32 (212)°	> 6800ft	1.0min timed	ICAO rules
TELV1P	SALAZ	VHF	right	122 (302)°	> 10000ft	1.0min timed	ICAO rules
UMRU1P	MELLI	VHF	left	301 (121)°	> 10000ft	1.0min timed	ICAO rules
YAVR1K	TABIP	VHF	right	32 (212)°	> 10000ft	1.0min timed	ICAO rules
YAVR1P	MELLI	VHF	left	301 (121)°	> 10000ft	1.0min timed	ICAO rules
YUCE1E	ANK	FIX	left	212 (32)°	> 6500ft	1.0min timed	ICAO rules
YUCE1F	ESB	NDB	right	32 (212)°	> 7000ft	1.0min timed	230
YUCE1G	ESB	NDB	right	32 (212)°	> 7000ft	1.0min timed	230
YUCE1K	NETGO	VHF	left	121 (301)°	> 10000ft	1.0min timed	ICAO rules
YUCE1N	BUK	FIX	left	32 (212)°	> 6800ft	1.0min timed	ICAO rules
YUCE1P	SALAZ	VHF	right	122 (302)°	> 10000ft	1.0min timed	ICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
