Airports for X-Plane

Ankara - Esenboga

Airport details

CountryTurkey
StateAnkara
RegionLT
AirspaceAnkara Ctr
MunicipalityÇubuk
Elevation3125ft (952m)
TimezoneGMT +3
Coordinates40.13108, 32.99089
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLTAC
IATA codeESB
FAA coden/a

Communication

Esenboga ATIS123.600
Esenboga Ground Control121.900
Esenboga Tower118.100
Esenboga Approach119.600
Esenboga Approach120.600
Esenboga Approach122.100
Esenboga Departure119.100

Approach frequencies

ILS-cat-IIIRW03R110.318.00mi
ILS-cat-IIRW03L108.918.00mi
ILS-cat-IRW21R108.318.00mi
ILS-cat-IRW21L108.118.00mi
3° GSRW03L108.918.00mi
3° GSRW03R110.318.00mi
3° GSRW21R108.318.00mi
3° GSRW21L108.118.00mi

Runway info

Runway 03R / 21L
 length3750m (12303ft)
 bearing44° / 224°
 width59m (194ft)
 surfaceasphalt
 blast zone65m (213ft) / 60m (197ft)
Runway 03L / 21R
 length3389m (11119ft)
 bearing44° / 224°
 width45m (148ft)
 surfaceconcrete
 blast zone0m (0ft) / 57m (187ft)
Runway 03 / 21
 length3752m (12310ft)
 bearing44° / 224°
 width45m (148ft)
 surfaceasphalt
 blast zone60m (197ft) / 60m (197ft)

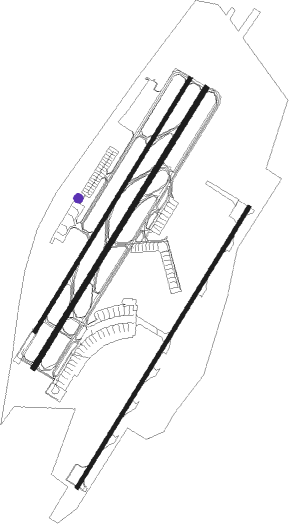

Airport layout - parking location H2


Taxiway locations

 A  A1  A2  A3  AB  AC  B  B1
 B2  C  C1  D  D1  D2  E  E1
 E2  F  G  G1  G3  G4  H  J
Parking locations

 1-C  10-D  101-E  102-E  103-D  104-C  105-D  106-C
 107-D  108-C  109-D  11-D  110-C  111-D  112-C  113-D
 114-D  115-C  116-E  117-D  118-D  119-C  12-D  120-D
 13-D  14-D  15-D  16-D  17-D  18-C  19-C  1A-B
 2-C  20-C  201-D  202-D  203-D  204-D  205-D  206-D
 207-D  21-C  22-B  3-C  4-C  5-C  6-D  602
 603  604  605  606  607  608  609  610
 611  612  613  614  615  616  617  618
 619  620  621  622  623  624  625  626
 627  628  629  630  631  7-D  701  702
 703  704  8-C  9-C  A1  A3  C1  C2
 D3  F1  F3  G1  G2  G3  H1  H2

Nearby beacons

codeidentifierdistbearingfrequency
ESBESENBOGA (ANKARA) VOR/DME1.354°112.10
NKESENBOGA (ANKARA) NDB1.5211°305
ANESENBOGA (ANKARA) NDB4.9220°285
BUKCUBUK (ANKARA) NDB8.446°425
BAGBAGLUM (ANKARA) VOR/DME9251°113.10
ANKANKARA NDB13222°356
ETIANKARA-ETIMESGUT TACAN17.8241°116.60
ZIRMURTED TACAN19.2264°114.50
GBIGOLBASI NDB26.3202°315
HAYHAYMANA NDB47.2215°350

Departure and arrival routes

Transition altitude10000ft
SID end pointsdistanceoutbound heading
RW03 (ALL)
 ASTA1A, ASTA1C37mi12°
 ILHA1C, ILHA1A38mi66°
 GURB1A, GURB1C39mi87°
 GOBI1C46mi112°
 KUBE1A34mi116°
 BALA1C54mi130°
 YUCE1A43mi133°
 BAKI1A44mi154°
 AZBU1C48mi154°
 ERKU1C55mi183°
 TELV1A46mi185°
 HALI1A, HALI1C, HALI1U53mi221°
 UMRU1C51mi273°
 PETA1A42mi273°
 LATG1A43mi283°
 ABIS1C50mi283°
 YAVR1C60mi291°
 SALG1A42mi293°
 DERE1C, DERE1A51mi306°
RW21 (ALL)
 ASTA1B37mi12°
 NEMR1D48mi15°
 ILHA1B38mi66°
 EKME1D49mi69°
 GURB1B39mi87°
 BENT1D44mi89°
 GOBI1D46mi112°
 KUBE1B34mi116°
 BALA1D54mi130°
 YUCE1B43mi133°
 BAKI1B44mi154°
 AZBU1D48mi154°
 TELV1D, TELV1B46mi185°
 HALI1B, HALI1D53mi221°
 PETA1D, PETA1B42mi273°
 LATG1D, LATG1B43mi283°
 YAVR1D60mi291°
 SALG1B42mi293°
 DERE1B, DERE1D51mi306°

STAR starting pointsdistanceinbound heading
RW03 (ALL)
 ERKU1K55.03°
 TELV1E, TELV1F45.75°
 HALI1E, HALI1K, HALI1F, HALI2K53.241°
 PETA1E, PETA1F, PETA1K41.893°
 LATG1K42.9103°
 KIZI1F, KIZI1E42.2109°
 YAVR1K59.5111°
 SALG1E, SALG1F41.6113°
 NASI1E, NASI1F40.0124°
 DERE1K50.5126°
 ASTA1E, ASTA1F37.1192°
 NEMR1K47.6195°
 ILHA1F, ILHA1E37.6246°
 EKME1K49.0249°
 GURB1K, GURB1E, GURB1F38.7267°
 GOBI1K46.4292°
 KUBE1F, KUBE1E33.6296°
 YUCE1K, YUCE1F, YUCE1E43.0313°
 ARMU1K59.2331°
 BAKI1E, BAKI1F44.3334°
RW21 (ALL)
 TELV1N, TELV1P, TELV1G45.75°
 HALI1P, HALI1N, HALI1M, HALI1G53.241°
 UMRU1P51.193°
 PETA1N, PETA1G41.893°
 LATG1P42.9103°
 KIZI1N, KIZI1G42.2109°
 YAVR1P59.5111°
 SALG1G, SALG1N41.6113°
 NASI1G, NASI1N40.0124°
 DERE1P50.5126°
 ASTA1P, ASTA1G, ASTA1N37.1192°
 ILHA1N, ILHA1G, ILHA1P37.6246°
 GURB1N, GURB1P, GURB1G38.7267°
 GOBI1P46.4292°
 KUBE1N, KUBE1G33.6296°
 YUCE1P, YUCE1N, YUCE1G43.0313°
 BAKI1G, BAKI1N, BAKI1P44.3334°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ARMU1KNETGOVHFleft121 (301)°> 10000ft1.0min timedICAO rules
ASTA1EANKFIXleft212 (32)°> 6500ft1.0min timedICAO rules
ASTA1FESBNDBright32 (212)°> 7000ft1.0min timed230
ASTA1GESBNDBright32 (212)°> 7000ft1.0min timed230
ASTA1NBUKFIXleft32 (212)°> 6800ft1.0min timedICAO rules
ASTA1PMELLIVHFleft301 (121)°> 10000ft1.0min timedICAO rules
BAKI1EANKFIXleft212 (32)°> 6500ft1.0min timedICAO rules
BAKI1FESBNDBright32 (212)°> 7000ft1.0min timed230
BAKI1GESBNDBright32 (212)°> 7000ft1.0min timed230
BAKI1NBUKFIXleft32 (212)°> 6800ft1.0min timedICAO rules
BAKI1PSALAZVHFright122 (302)°> 10000ft1.0min timedICAO rules
DERE1KTABIPVHFright32 (212)°> 10000ft1.0min timedICAO rules
DERE1PMELLIVHFleft301 (121)°> 10000ft1.0min timedICAO rules
EKME1KNETGOVHFleft121 (301)°> 10000ft1.0min timedICAO rules
ERKU1KNETGOVHFleft121 (301)°> 10000ft1.0min timedICAO rules
GOBI1KNETGOVHFleft121 (301)°> 10000ft1.0min timedICAO rules
GOBI1PSALAZVHFright122 (302)°> 10000ft1.0min timedICAO rules
GURB1EANKFIXleft212 (32)°> 6500ft1.0min timedICAO rules
GURB1FESBNDBright32 (212)°> 7000ft1.0min timed230
GURB1GESBNDBright32 (212)°> 7000ft1.0min timed230
GURB1KNETGOVHFleft121 (301)°> 10000ft1.0min timedICAO rules
GURB1NBUKFIXleft32 (212)°> 6800ft1.0min timedICAO rules
GURB1PSALAZVHFright122 (302)°> 10000ft1.0min timedICAO rules
HALI1EANKFIXleft212 (32)°> 6500ft1.0min timedICAO rules
HALI1FESBNDBright32 (212)°> 7000ft1.0min timed230
HALI1GESBNDBright32 (212)°> 7000ft1.0min timed230
HALI1KNETGOVHFleft121 (301)°> 10000ft1.0min timedICAO rules
HALI1MBUKFIXleft32 (212)°> 6800ft1.0min timedICAO rules
HALI1NBUKFIXleft32 (212)°> 6800ft1.0min timedICAO rules
HALI1NHAYFIXright243 (63)°14000ft - 65535ft1.5min timedICAO rules
HALI1PSALAZVHFright122 (302)°> 10000ft1.0min timedICAO rules
HAY1EANKFIXleft212 (32)°> 6500ft1.0min timedICAO rules
HAY1EHAYFIXright243 (63)°14000ft - 65535ft1.5min timedICAO rules
HAY1FESBNDBright32 (212)°> 7000ft1.0min timed230
HAY1GESBNDBright32 (212)°> 7000ft1.0min timed230
HAY1MBUKFIXleft32 (212)°> 6800ft1.0min timedICAO rules
HAY1MHAYFIXright243 (63)°14000ft - 65535ft1.5min timedICAO rules
HAY1NBUKFIXleft32 (212)°> 6800ft1.0min timedICAO rules
HAY1NHAYFIXright243 (63)°14000ft - 65535ft1.5min timedICAO rules
ILHA1EANKFIXleft212 (32)°> 6500ft1.0min timedICAO rules
ILHA1EILHANVHFleft63 (243)°10000ft - 14000ft1.0min timedICAO rules
ILHA1FESBNDBright32 (212)°> 7000ft1.0min timed230
ILHA1GESBNDBright32 (212)°> 7000ft1.0min timed230
ILHA1NBUKFIXleft32 (212)°> 6800ft1.0min timedICAO rules
ILHA1NILHANVHFleft63 (243)°10000ft - 14000ft1.0min timedICAO rules
ILHA1PSALAZVHFright122 (302)°> 10000ft1.0min timedICAO rules
KIZI1EANKFIXleft212 (32)°> 6500ft1.0min timedICAO rules
KIZI1FESBNDBright32 (212)°> 7000ft1.0min timed230
KIZI1GESBNDBright32 (212)°> 7000ft1.0min timed230
KIZI1NBUKFIXleft32 (212)°> 6800ft1.0min timedICAO rules
KUBE1EANKFIXleft212 (32)°> 6500ft1.0min timedICAO rules
KUBE1EKUBERVHFleft107 (287)°10000ft - 13000ft1.0min timedICAO rules
KUBE1FESBNDBright32 (212)°> 7000ft1.0min timed230
KUBE1GESBNDBright32 (212)°> 7000ft1.0min timed230
KUBE1NBUKFIXleft32 (212)°> 6800ft1.0min timedICAO rules
KUBE1NKUBERVHFleft107 (287)°10000ft - 13000ft1.0min timedICAO rules
LATG1KTABIPVHFright32 (212)°> 10000ft1.0min timedICAO rules
LATG1PMELLIVHFleft301 (121)°> 10000ft1.0min timedICAO rules
NASI1EANKFIXleft212 (32)°> 6500ft1.0min timedICAO rules
NASI1FESBNDBright32 (212)°> 7000ft1.0min timed230
NASI1GESBNDBright32 (212)°> 7000ft1.0min timed230
NASI1NBUKFIXleft32 (212)°> 6800ft1.0min timedICAO rules
NEMR1KTABIPVHFright32 (212)°> 10000ft1.0min timedICAO rules
PETA1EANKFIXleft212 (32)°> 6500ft1.0min timedICAO rules
PETA1FESBNDBright32 (212)°> 7000ft1.0min timed230
PETA1GESBNDBright32 (212)°> 7000ft1.0min timed230
PETA1KTABIPVHFright32 (212)°> 10000ft1.0min timedICAO rules
PETA1NBUKFIXleft32 (212)°> 6800ft1.0min timedICAO rules
SALG1EANKFIXleft212 (32)°> 6500ft1.0min timedICAO rules
SALG1FESBNDBright32 (212)°> 7000ft1.0min timed230
SALG1GESBNDBright32 (212)°> 7000ft1.0min timed230
SALG1NBUKFIXleft32 (212)°> 6800ft1.0min timedICAO rules
TELV1EANKFIXleft212 (32)°> 6500ft1.0min timedICAO rules
TELV1FESBNDBright32 (212)°> 7000ft1.0min timed230
TELV1GESBNDBright32 (212)°> 7000ft1.0min timed230
TELV1NBUKFIXleft32 (212)°> 6800ft1.0min timedICAO rules
TELV1PSALAZVHFright122 (302)°> 10000ft1.0min timedICAO rules
UMRU1PMELLIVHFleft301 (121)°> 10000ft1.0min timedICAO rules
YAVR1KTABIPVHFright32 (212)°> 10000ft1.0min timedICAO rules
YAVR1PMELLIVHFleft301 (121)°> 10000ft1.0min timedICAO rules
YUCE1EANKFIXleft212 (32)°> 6500ft1.0min timedICAO rules
YUCE1FESBNDBright32 (212)°> 7000ft1.0min timed230
YUCE1GESBNDBright32 (212)°> 7000ft1.0min timed230
YUCE1KNETGOVHFleft121 (301)°> 10000ft1.0min timedICAO rules
YUCE1NBUKFIXleft32 (212)°> 6800ft1.0min timedICAO rules
YUCE1PSALAZVHFright122 (302)°> 10000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
