Airports for X-Plane

Trabzon

Airport details

CountryTurkey
StateTrabzon
RegionLT
AirspaceAnkara Ctr
Elevation104ft (32m)
TimezoneGMT +3
Coordinates40.99583, 39.78528
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLTCG
IATA codeTZX
FAA coden/a

Communication

Trabzon Ground Control121.900
Trabzon Tower119.325
Trabzon Tower126.850
Trabzon Approach120.100
Trabzon Approach119.250

Approach frequencies

LOCRW29108.918.00mi
ILS-cat-IRW11109.118.00mi
3.3° GSRW11109.118.00mi

Runway info

Runway 11 / 29
 length2624m (8609ft)
 bearing107° / 287°
 width45m (148ft)
 surfaceasphalt
 blast zone60m (197ft) / 60m (197ft)

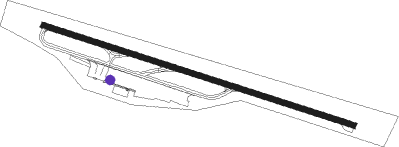

Airport layout - parking location 11


Taxiway locations

 A  B  C  D  E
Parking locations

 1  10  11  12  13  14  2  3
 4  5  6  7  8  9

Nearby beacons

codeidentifierdistbearingfrequency
TBNTRABZON NDB0.493°371

Departure and arrival routes

Transition altitude12000ft
SID end pointsdistanceoutbound heading
RW11
 ATPU1U, ATPU1A29mi72°
 NETP1A, NETP1U29mi97°
 BAVT1A29mi125°
 PIXA1A30mi191°
 TEME1U, TEME1A30mi275°
 TOLU1A50mi289°
 ERID1X, ERID1U31mi290°
 NIVA1U, NIVA1A30mi343°
RW29
 ATPU1M, ATPU1G29mi72°
 DELE1G50mi92°
 NETP1M29mi97°
 ABVE1G40mi97°
 BAVT1G29mi125°
 PIXA1G30mi191°
 ARLA1G49mi275°
 TEME1M30mi275°
 TOLU1G50mi289°
 ERID1M31mi290°
 NIVA1G, NIVA1M30mi343°

STAR starting pointsdistanceinbound heading
RW11
 PIXA1S, PIXA1D29.911°
 TEME1S, TEME1D29.595°
 ERID1D, ERID1S30.8110°
 NIVA1S, NIVA1D30.4163°
 ATPU1S, ATPU1D29.2252°
 NETP1S, NETP1D29.0277°
 BAVT1S, BAVT1D29.2305°
RW29
 PIXA1E, PIXA1T29.911°
 TEME1E, TEME1T29.595°
 TOLU1T49.5109°
 ERID1E30.8110°
 NIVA1E, NIVA1T30.4163°
 ATPU1T, ATPU1E29.2252°
 NETP1T, NETP1E29.0277°
 BAVT1T, BAVT1E29.2305°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ATPU1DTBNNDBright89 (269)°> 6000ft1.0min timed230
ATPU1ETBNNDBright89 (269)°> 6000ft1.0min timed230
ATPU1STUDVOVHFleft27 (207)°> 10000ft1.0min timedICAO rules
ATPU1TCG925VHFright7 (187)°> 6000ft1.0min timedICAO rules
BAVT1DTBNNDBright89 (269)°> 6000ft1.0min timed230
BAVT1ETBNNDBright89 (269)°> 6000ft1.0min timed230
BAVT1SCG542VHFleft154 (334)°> 11000ft1.0min timedICAO rules
BAVT1TBAVTIVHFright180 (0)°> 14000ft1.0min timedICAO rules
ERID1DTBNNDBright89 (269)°> 6000ft1.0min timed230
ERID1ETBNNDBright89 (269)°> 6000ft1.0min timed230
ERID1SERIDUVHFleft296 (116)°> 9000ft1.0min timedICAO rules
NETP1DTBNNDBright89 (269)°> 6000ft1.0min timed230
NETP1ETBNNDBright89 (269)°> 6000ft1.0min timed230
NETP1STUDVOVHFleft27 (207)°> 10000ft1.0min timedICAO rules
NETP1TNETPUVHFright105 (285)°> 14000ft1.0min timedICAO rules
NIVA1DTBNNDBright89 (269)°> 6000ft1.0min timed230
NIVA1ETBNNDBright89 (269)°> 6000ft1.0min timed230
NIVA1STUDVOVHFleft27 (207)°> 10000ft1.0min timedICAO rules
NIVA1TCG925VHFright7 (187)°> 6000ft1.0min timedICAO rules
PIXA1DTBNNDBright89 (269)°> 6000ft1.0min timed230
PIXA1ETBNNDBright89 (269)°> 6000ft1.0min timed230
PIXA1SCG542VHFleft154 (334)°> 11000ft1.0min timedICAO rules
PIXA1TCG145VHFright228 (48)°> 12000ft1.0min timedICAO rules
TEME1DTBNNDBright89 (269)°> 6000ft1.0min timed230
TEME1ETBNNDBright89 (269)°> 6000ft1.0min timed230
TEME1STEMELVHFright244 (64)°> 10000ft1.0min timedICAO rules
TEME1TCG925VHFright7 (187)°> 6000ft1.0min timedICAO rules
TOLU1TCG925VHFright7 (187)°> 6000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
