Airports for X-Plane

Kahramanmaraş - Kahramanmaras

Airport details

CountryTurkey
StateKahramanmaraş Province
RegionLT
AirspaceAnkara Ctr
MunicipalityMarash
Elevation1724ft (525m)
TimezoneGMT +3
Coordinates37.53833, 36.95195
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLTCN
IATA codeKCM
FAA coden/a

Communication

Kahramanmaras Ground Control121.550
Kahramanmaras Tower118.750

Runway info

Runway 07 / 25
 length2307m (7569ft)
 bearing78° / 258°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 304m (997ft)
 blast zone60m (197ft) / 51m (167ft)

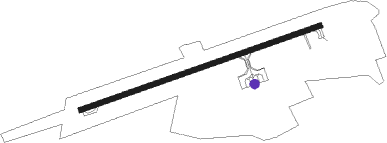

Airport layout - parking location RS3


Parking locations

 GA1  GA2  RS1  RS2  RS3  RS4  RS5

Nearby beacons

codeidentifierdistbearingfrequency
KHMKAHRAMANMARAS NDB0.129°374
GAZGAZIANTEP NDB43.1138°432

Departure and arrival routes

Transition altitude15000ft
SID end pointsdistanceoutbound heading
RW07
 REMP1R24mi284°
RW25
 REMP1A24mi284°

STAR starting pointsdistanceinbound heading
ALL
 POGE1A12.482°
RW25
 POGE1B12.482°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW07REMPO (104°)REMPO 9000ft
CN071 (4mi, 107°) 7860ft
MAXUT (6mi, 107°) 5960ft
SONER (9mi, 115°) 3900ft
 RNAVSONER 3900ft
CN072 (2mi, 90°) 3155ft
MA07 (3mi, 90°) 1941ft
DIKRU (12mi, 82°)
ELKUM (5mi, 92°)
BERET (7mi, 117°)
NARGU (8mi, 218°)
INGAM (15mi, 281°) 11000ft
INGAM (turn) 11000ft
RW25DONDU (246°)DONDU 14000ft
CN251 (8mi, 146°) 12000ft
NARGU (10mi, 117°) 10000ft
BERET (8mi, 38°) 8000ft
ELKUM (7mi, 297°) 6400ft
MAREK (5mi, 280°) 5600ft
RW25INGAM (334°)INGAM 14000ft
NARGU (15mi, 101°) 10000ft
BERET (8mi, 38°) 8000ft
ELKUM (7mi, 297°) 6400ft
MAREK (5mi, 280°) 5600ft
 RNAVMAREK 5600ft
CN252 (3mi, 260°) 4600ft
CN253 (3mi, 260°) 3350ft
MA25 (4mi, 260°) 2041ft
CN461 (6mi, 276°)
CN462 (5mi, 301°)
CN463 (6mi, 276°)
CN464 (7mi, 251°)
CN465 (7mi, 223°)
CN466 (9mi, 121°)
INGAM (20mi, 82°) 14000ft
INGAM (turn) 14000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DOND1AKHMNDBleft136 (316)°> 9500ft1.0min timed210
INGA1GINGAMVHFright279 (99)°> 14000ft1.0min timedICAO rules
INGA1GREMPOVHFright286 (106)°> 9000ft1.0min timedICAO rules
POGE1AKHMNDBleft136 (316)°> 9500ft1.0min timed210
POGE1BINGAMVHFright279 (99)°> 14000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
