Mérida - Merida Intl

Airport details

Country	Mexico
State	Yucatán
Region	MM
Airspace	Merida Ctr
Municipality	Mérida
Elevation	38ft (12m)
Timezone	GMT -6
Coordinates	20.92931, -89.66126
Magnetic var	-1.0°
Type	land
Available since	X-Plane v10.40
ICAO code	MMMD
IATA code	MID
FAA code	n/a

Communication

Merida Intl ATIS	127.900
Merida Intl MERIDA INFO	126.900
Merida Intl MERIDA Tower	118.300

Approach frequencies

ILS-cat-I	RW10	111.7	18.00mi
3° GS	RW10	111.7	18.00mi

Nearby Points of Interest:

ring of cenotes

Runway info

Runway 10 / 28
	length	3203m (10509ft)
	bearing	104° / 284°
	width	46m (151ft)
	surface	asphalt
	displ threshold	320m (1050ft) / 0m (0ft)
	blast zone	72m (236ft) / 61m (200ft)
Runway 18 / 36
	length	2320m (7612ft)
	bearing	181° / 1°
	width	46m (151ft)
	surface	asphalt
	blast zone	53m (174ft) / 50m (164ft)

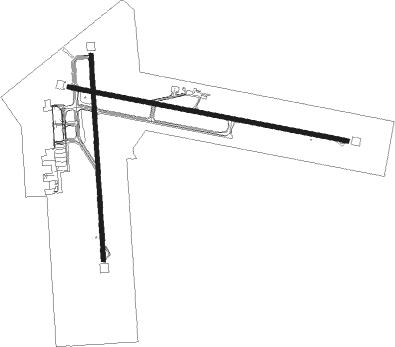

Airport layout

Taxiway locations

Parking locations

Recommended scenery file

Type	3D
Author	bkeith
Released	07 Jun 2018
Features	› has ATC flow › has taxi route › has ground routes

Nearby beacons

code	identifier	dist	bearing	frequency
MID	MERIDA VOR/DME	0.5	30°	117.70

Departure and arrival routes

Transition altitude

18500ft

Transition level

19500ft

SID end points		distance	outbound heading
RW10
	CAEA1A	51mi	36°
	DAPI2A	26mi	36°
	LIBA2A	20mi	63°
	USBU1A	22mi	70°
	BIBE1A	50mi	76°
	EPNA1A	50mi	87°
	TULU3A	33mi	87°
	DURP2A	25mi	102°
	RENE2A	25mi	150°
	DUSL2A	30mi	157°
	GREP1A	50mi	158°
	TAXT2A	25mi	175°
	SIFT1A	50mi	175°
	PAGA2A	24mi	188°
	ELSI1A	50mi	218°
	VOLE2A	24mi	218°
	VIVE1C	50mi	285°
	ISAR1A	50mi	301°
	RUDM2A	23mi	337°
	PERG2A	21mi	351°
	NAPL1A	51mi	357°
	SISA2A	26mi	358°
RW18
	TULU2B	33mi	87°
	DURP2B	25mi	102°
	RENE2B	25mi	150°
	DUSL2B	30mi	157°
	TAXT4B	25mi	175°
	PAGA3B	24mi	188°
	VOLE2B	24mi	218°
	URPU2A	22mi	242°
	XOLR2A	25mi	257°
RW28
	CAEA1B	51mi	36°
	DAPI2B	26mi	36°
	BIBE1B	50mi	76°
	EPNA1B	50mi	87°
	GREP1B	50mi	158°
	SIFT1B	50mi	175°
	PAGA2C	24mi	188°
	VOLE2C	24mi	218°
	ELSI1B	50mi	218°
	URPU2B	22mi	242°
	XOLR2B	25mi	257°
	VIVE1D, VIVE2A	50mi	285°
	ISAR1B	50mi	301°
	RUDM2B	23mi	337°
	PERG2B	21mi	351°
	NAPL1B	51mi	357°
	SISA2B	26mi	358°
RW36
	CAEA1C	51mi	36°
	DAPI2C	26mi	36°
	LIBA2B	20mi	63°
	USBU1B	22mi	70°
	BIBE1C	50mi	76°
	EPNA1C	50mi	87°
	TULU2C	33mi	87°
	GREP1C	50mi	158°
	SIFT1C	50mi	175°
	ELSI1C	50mi	218°
	VIVE2B, VIVE1E	50mi	285°
	ISAR1C	50mi	301°
	RUDM2C	23mi	337°
	PERG2C	21mi	351°
	NAPL1C	51mi	357°
	SISA3C	26mi	358°

STAR starting points		distance	inbound heading
RW10
	CANO1A	49.6	8°
	ELSI1D	49.5	38°
	ILEL1A	49.5	61°
	DYSO1A	69.5	76°
	VIVE1F	49.9	105°
	ISAR1D	50.0	121°
	XUBS1A, XUBS1B	50.2	140°
	AVOM1A	50.5	156°
	CAEA1D	50.7	216°
	GABO1A	50.4	244°
	NAPR1A, NAPR1B	50.1	283°
	LIFT1B, LIFT1A	49.8	331°
RW18
	VIVE1F	49.9	105°
	ISAR1D	50.0	121°
	XUBS1A	50.2	140°
RW28
	ELSI1E	49.5	38°
	ILEL1B	49.5	61°
	DYSO1B	69.5	76°
	XUBS1C	50.2	140°
	AVOM1B	50.5	156°
	CAEA1E	50.7	216°
	GABO1B	50.4	244°
	NAPR1D, NAPR1C	50.1	283°
	LIFT1D, LIFT1C	49.8	331°
RW36
	CANO1B	49.6	8°
	ELSI1F	49.5	38°
	ILEL1C	49.5	61°
	DYSO1C	69.5	76°
	XUBS1D	50.2	140°
	AVOM1C	50.5	156°
	CAEA1F	50.7	216°
	GABO1C	50.4	244°
	NAPR1E, NAPR1F	50.1	283°
	LIFT1F, LIFT1E	49.8	331°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW10	OTMAM (106°)	OTMAM 4000ft MD400 (5mi, 104°) 2800ft
RW10	SEBEP (82°)	SEBEP 4000ft MD400 (5mi, 16°) 2800ft
RW10	TEXOB (132°)	TEXOB 4000ft MD400 (5mi, 196°) 2800ft
	RNAV	MD400 2800ft MD401 (5mi, 104°) 1700ft MMMD (5mi, 110°) 92ft MD402 (8mi, 101°) MILTE (18mi, 113°) 11000ft MILTE (turn) 15000ft
RW28	ALRUN (305°)	ALRUN 4000ft MD500 (5mi, 16°) 2800ft
RW28	HADOW (261°)	HADOW 4000ft MD500 (5mi, 196°) 2800ft
RW28	VOLOR (283°)	VOLOR 4000ft MD500 (5mi, 284°) 2800ft
	RNAV	MD500 2800ft MD501 (5mi, 284°) 1700ft MMMD (7mi, 280°) 86ft OTMAM (15mi, 286°) ETGOT (25mi, 359°) 11000ft ETGOT (turn) 17000ft
RW36	AVRUB (0°)	AVRUB 4000ft MD900 (5mi, 1°) 2400ft
RW36	ITSAK (29°)	ITSAK 4000ft MD900 (5mi, 91°) 2400ft
RW36	ULILI (331°)	ULILI 4000ft MD900 (5mi, 271°) 2400ft
	RNAV	MD900 2400ft MD901 (5mi, 1°) 1300ft MMMD (4mi, 358°) 84ft MD902 (7mi, 3°) ETGOT (27mi, 324°) 10000ft ETGOT (turn) 16000ft

Holding patterns

STAR name	hold at	type	turn	heading*	altitude	leg	speed limit
AVOM1A	ETGOT	VHF	right	344 (164)°	> 11000ft	1.0min timed	230
AVOM1B	ETGOT	VHF	right	344 (164)°	> 11000ft	1.0min timed	230
AVOM1C	ETGOT	VHF	right	344 (164)°	> 11000ft	1.0min timed	230
CAEA1D	ULISO	VHF	right	50 (230)°	> 17000ft	1.0min timed	230
CAEA1E	ULISO	VHF	right	50 (230)°	> 17000ft	1.0min timed	230
CAEA1F	ULISO	VHF	right	50 (230)°	> 17000ft	1.0min timed	230
CANO1A	TOTIL	VHF	right	175 (355)°	> 10000ft	1.0min timed	230
CANO1B	PAARS	VHF	right	190 (10)°	9000ft - 10000ft	1.0min timed	230
DYSO1A	KEVBU	VHF	right	247 (67)°	> 6000ft	1.0min timed	230
DYSO1B	XUDER	VHF	right	254 (74)°	> 17000ft	1.0min timed	230
DYSO1C	CIMAT	VHF	left	271 (91)°	> 13000ft	1.0min timed	230
ELSI1D	ITPEB	VHF	right	205 (25)°	4000ft - 4000ft	1.0min timed	ICAO rules
ELSI1E	VERVA	VHF	right	230 (50)°	4000ft - 4000ft	1.0min timed	ICAO rules
ELSI1F	VERVA	VHF	right	230 (50)°	4000ft - 4000ft	1.0min timed	ICAO rules
GABO1A	ULISO	VHF	right	50 (230)°	> 17000ft	1.0min timed	230
GABO1B	ULISO	VHF	right	50 (230)°	> 17000ft	1.0min timed	230
GABO1C	ULISO	VHF	right	50 (230)°	> 17000ft	1.0min timed	230
ILEL1A	UDNAP	VHF	right	234 (54)°	> 10000ft	1.0min timed	230
ILEL1B	UDNAP	VHF	right	234 (54)°	> 10000ft	1.0min timed	230
ILEL1C	CIMAT	VHF	left	271 (91)°	> 13000ft	1.0min timed	230
LIFT1A	KETNI	VHF	right	160 (340)°	> 15000ft	1.0min timed	230
LIFT1B	KETNI	VHF	right	160 (340)°	> 15000ft	1.0min timed	230
LIFT1C	KETNI	VHF	right	160 (340)°	> 15000ft	1.0min timed	230
LIFT1D	KETNI	VHF	right	160 (340)°	> 15000ft	1.0min timed	230
LIFT1E	BUYCK	VHF	left	93 (273)°	> 10000ft	1.0min timed	230
LIFT1F	JAFEY	VHF	right	142 (322)°	4000ft - 4000ft	1.0min timed	ICAO rules
NAPR1A	MILTE	VHF	left	97 (277)°	> 16000ft	1.0min timed	230
NAPR1B	KETNI	VHF	right	160 (340)°	> 15000ft	1.0min timed	230
NAPR1C	RAKEP	VHF	right	104 (284)°	8000ft - 9000ft	1.0min timed	230
NAPR1D	RAKEP	VHF	right	104 (284)°	8000ft - 9000ft	1.0min timed	230
NAPR1E	BUYCK	VHF	left	93 (273)°	> 10000ft	1.0min timed	230
NAPR1F	BUYCK	VHF	left	93 (273)°	> 10000ft	1.0min timed	230
XUBS1B	ETGOT	VHF	right	344 (164)°	> 11000ft	1.0min timed	230
XUBS1C	ETGOT	VHF	right	344 (164)°	> 11000ft	1.0min timed	230
XUBS1D	ETGOT	VHF	right	344 (164)°	> 11000ft	1.0min timed	230
*) magnetic outbound (inbound) holding course

Actual weather data

METAR MMMD 062140Z 36004KT 7SM BKN015TCU 28/21 A2995 RMK 8/200 HZY

TAF MMMD 061752Z 0618/0718 35005KT P6SM SCT015 BKN070 TX31/0620Z TN19/0712Z TEMPO 0621/0701 3SM TSRA BKN015CB FM070200 02015KT P6SM BKN015CB TEMPO 0705/0708 2SM TSRA OVC010CB BECMG 0716/0717 02015KT BKN020

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
