Airports for X-Plane

Mérida - Merida Intl

Airport details

CountryMexico
StateYucatán
RegionMM
AirspaceMerida Ctr
MunicipalityMérida
Elevation38ft (12m)
TimezoneGMT -6
Coordinates20.92931, -89.66126
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeMMMD
IATA codeMID
FAA coden/a

Communication

Merida Intl ATIS127.900
Merida Intl MERIDA INFO126.900
Merida Intl MERIDA Tower118.300

Approach frequencies

ILS-cat-IRW10111.718.00mi
3° GSRW10111.718.00mi
Nearby Points of Interest:
ring of cenotes

Runway info

Runway 10 / 28
 length3203m (10509ft)
 bearing104° / 284°
 width46m (151ft)
 surfaceasphalt
 displ threshold320m (1050ft) / 0m (0ft)
 blast zone72m (236ft) / 61m (200ft)
Runway 18 / 36
 length2320m (7612ft)
 bearing181° / 1°
 width46m (151ft)
 surfaceasphalt
 blast zone53m (174ft) / 50m (164ft)

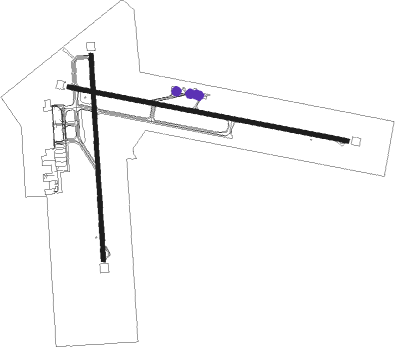

Airport layout - parking location Military


Taxiway locations

 A  B  C  D  E  F  G  H
Parking locations

 GA  Gate  Heli  Military

Nearby beacons

codeidentifierdistbearingfrequency
MIDMERIDA VOR/DME0.530°117.70

Departure and arrival routes

Transition altitude18500ft
Transition level19500ft
SID end pointsdistanceoutbound heading
RW10
 CAEA1A51mi36°
 DAPI2A26mi36°
 LIBA2A20mi63°
 USBU1A22mi70°
 BIBE1A50mi76°
 EPNA1A50mi87°
 TULU3A33mi87°
 DURP2A25mi102°
 RENE2A25mi150°
 DUSL2A30mi157°
 GREP1A50mi158°
 TAXT2A25mi175°
 SIFT1A50mi175°
 PAGA2A24mi188°
 ELSI1A50mi218°
 VOLE2A24mi218°
 VIVE1C50mi285°
 ISAR1A50mi301°
 RUDM2A23mi337°
 PERG2A21mi351°
 NAPL1A51mi357°
 SISA2A26mi358°
RW18
 TULU2B33mi87°
 DURP2B25mi102°
 RENE2B25mi150°
 DUSL2B30mi157°
 TAXT4B25mi175°
 PAGA3B24mi188°
 VOLE2B24mi218°
 URPU2A22mi242°
 XOLR2A25mi257°
RW28
 CAEA1B51mi36°
 DAPI2B26mi36°
 BIBE1B50mi76°
 EPNA1B50mi87°
 GREP1B50mi158°
 SIFT1B50mi175°
 PAGA2C24mi188°
 VOLE2C24mi218°
 ELSI1B50mi218°
 URPU2B22mi242°
 XOLR2B25mi257°
 VIVE1D, VIVE2A50mi285°
 ISAR1B50mi301°
 RUDM2B23mi337°
 PERG2B21mi351°
 NAPL1B51mi357°
 SISA2B26mi358°
RW36
 CAEA1C51mi36°
 DAPI2C26mi36°
 LIBA2B20mi63°
 USBU1B22mi70°
 BIBE1C50mi76°
 EPNA1C50mi87°
 TULU2C33mi87°
 GREP1C50mi158°
 SIFT1C50mi175°
 ELSI1C50mi218°
 VIVE2B, VIVE1E50mi285°
 ISAR1C50mi301°
 RUDM2C23mi337°
 PERG2C21mi351°
 NAPL1C51mi357°
 SISA3C26mi358°

STAR starting pointsdistanceinbound heading
RW10
 CANO1A49.68°
 ELSI1D49.538°
 ILEL1A49.561°
 DYSO1A69.576°
 VIVE1F49.9105°
 ISAR1D50.0121°
 XUBS1A, XUBS1B50.2140°
 AVOM1A50.5156°
 CAEA1D50.7216°
 GABO1A50.4244°
 NAPR1A, NAPR1B50.1283°
 LIFT1B, LIFT1A49.8331°
RW18
 VIVE1F49.9105°
 ISAR1D50.0121°
 XUBS1A50.2140°
RW28
 ELSI1E49.538°
 ILEL1B49.561°
 DYSO1B69.576°
 XUBS1C50.2140°
 AVOM1B50.5156°
 CAEA1E50.7216°
 GABO1B50.4244°
 NAPR1D, NAPR1C50.1283°
 LIFT1D, LIFT1C49.8331°
RW36
 CANO1B49.68°
 ELSI1F49.538°
 ILEL1C49.561°
 DYSO1C69.576°
 XUBS1D50.2140°
 AVOM1C50.5156°
 CAEA1F50.7216°
 GABO1C50.4244°
 NAPR1E, NAPR1F50.1283°
 LIFT1F, LIFT1E49.8331°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW10OTMAM (106°)OTMAM 4000ft
MD400 (5mi, 104°) 2800ft
RW10SEBEP (82°)SEBEP 4000ft
MD400 (5mi, 16°) 2800ft
RW10TEXOB (132°)TEXOB 4000ft
MD400 (5mi, 196°) 2800ft
 RNAVMD400 2800ft
MD401 (5mi, 104°) 1700ft
MMMD (5mi, 110°) 92ft
MD402 (8mi, 101°)
MILTE (18mi, 113°) 11000ft
MILTE (turn) 15000ft
RW28ALRUN (305°)ALRUN 4000ft
MD500 (5mi, 16°) 2800ft
RW28HADOW (261°)HADOW 4000ft
MD500 (5mi, 196°) 2800ft
RW28VOLOR (283°)VOLOR 4000ft
MD500 (5mi, 284°) 2800ft
 RNAVMD500 2800ft
MD501 (5mi, 284°) 1700ft
MMMD (7mi, 280°) 86ft
OTMAM (15mi, 286°)
ETGOT (25mi, 359°) 11000ft
ETGOT (turn) 17000ft
RW36AVRUB (0°)AVRUB 4000ft
MD900 (5mi, 1°) 2400ft
RW36ITSAK (29°)ITSAK 4000ft
MD900 (5mi, 91°) 2400ft
RW36ULILI (331°)ULILI 4000ft
MD900 (5mi, 271°) 2400ft
 RNAVMD900 2400ft
MD901 (5mi, 1°) 1300ft
MMMD (4mi, 358°) 84ft
MD902 (7mi, 3°)
ETGOT (27mi, 324°) 10000ft
ETGOT (turn) 16000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AVOM1AETGOTVHFright344 (164)°> 11000ft1.0min timed230
AVOM1BETGOTVHFright344 (164)°> 11000ft1.0min timed230
AVOM1CETGOTVHFright344 (164)°> 11000ft1.0min timed230
CAEA1DULISOVHFright50 (230)°> 17000ft1.0min timed230
CAEA1EULISOVHFright50 (230)°> 17000ft1.0min timed230
CAEA1FULISOVHFright50 (230)°> 17000ft1.0min timed230
CANO1ATOTILVHFright175 (355)°> 10000ft1.0min timed230
CANO1BPAARSVHFright190 (10)°9000ft - 10000ft1.0min timed230
DYSO1AKEVBUVHFright247 (67)°> 6000ft1.0min timed230
DYSO1BXUDERVHFright254 (74)°> 17000ft1.0min timed230
DYSO1CCIMATVHFleft271 (91)°> 13000ft1.0min timed230
ELSI1DITPEBVHFright205 (25)°4000ft - 4000ft1.0min timedICAO rules
ELSI1EVERVAVHFright230 (50)°4000ft - 4000ft1.0min timedICAO rules
ELSI1FVERVAVHFright230 (50)°4000ft - 4000ft1.0min timedICAO rules
GABO1AULISOVHFright50 (230)°> 17000ft1.0min timed230
GABO1BULISOVHFright50 (230)°> 17000ft1.0min timed230
GABO1CULISOVHFright50 (230)°> 17000ft1.0min timed230
ILEL1AUDNAPVHFright234 (54)°> 10000ft1.0min timed230
ILEL1BUDNAPVHFright234 (54)°> 10000ft1.0min timed230
ILEL1CCIMATVHFleft271 (91)°> 13000ft1.0min timed230
LIFT1AKETNIVHFright160 (340)°> 15000ft1.0min timed230
LIFT1BKETNIVHFright160 (340)°> 15000ft1.0min timed230
LIFT1CKETNIVHFright160 (340)°> 15000ft1.0min timed230
LIFT1DKETNIVHFright160 (340)°> 15000ft1.0min timed230
LIFT1EBUYCKVHFleft93 (273)°> 10000ft1.0min timed230
LIFT1FJAFEYVHFright142 (322)°4000ft - 4000ft1.0min timedICAO rules
NAPR1AMILTEVHFleft97 (277)°> 16000ft1.0min timed230
NAPR1BKETNIVHFright160 (340)°> 15000ft1.0min timed230
NAPR1CRAKEPVHFright104 (284)°8000ft - 9000ft1.0min timed230
NAPR1DRAKEPVHFright104 (284)°8000ft - 9000ft1.0min timed230
NAPR1EBUYCKVHFleft93 (273)°> 10000ft1.0min timed230
NAPR1FBUYCKVHFleft93 (273)°> 10000ft1.0min timed230
XUBS1BETGOTVHFright344 (164)°> 11000ft1.0min timed230
XUBS1CETGOTVHFright344 (164)°> 11000ft1.0min timed230
XUBS1DETGOTVHFright344 (164)°> 11000ft1.0min timed230
*) magnetic outbound (inbound) holding course
