Cayo Largo Del Sur - Vilo Acuna Intl

Airport details

Country	Cuba
State	Isle of Youth
Region	MU
Airspace	Havana Ctr
Elevation	7ft (2m)
Timezone	GMT -5
Coordinates	21.61611, -81.54556
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	MUCL
IATA code	CYO
FAA code	n/a

Communication

Vilo Acuna Intl CAYO LARGO Tower	118.500
Vilo Acuna Intl CAYO LARGO Approach	120.100

Runway info

Runway 12 / 30
	length	2993m (9820ft)
	bearing	115° / 295°
	width	45m (148ft)
	surface	asphalt
	blast zone	60m (197ft) / 60m (197ft)

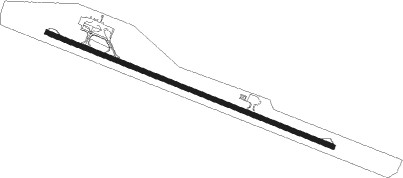

Airport layout

Taxiway locations

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
UCL	CAYO LARGO DEL SUR VOR/DME	0.9	131°	112.10

Departure and arrival routes

Transition altitude

3000ft

SID end points		distance	outbound heading
RW12
	VARC3A	63mi	8°
	YANT2A	49mi	130°
RW30
	EMUN3B	63mi	8°
	IKLA3A	104mi	210°

STAR starting points		distance	inbound heading
RW12
	ESTA4A	17.9	78°
	EMUN3A	17.9	154°
RW30
	VARC3B	18.8	205°
	TARTA1	19.8	336°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW12	CL610 (138°)	CL610 3000ft IGROS (6mi, 186°) 1500ft
RW12	CL611 (92°)	CL611 3000ft IGROS (6mi, 48°) 1500ft
	RNAV	IGROS 1500ft CL615 (5mi, 114°) 1500ft MUCL (5mi, 115°) 57ft (4933mi, 105°) 1500ft IKLAL (4940mi, 285°) IKLAL (turn)
RW30	CL620 (266°)	CL620 3000ft PELAO (6mi, 208°) 1500ft
RW30	CL621 (324°)	CL621 3000ft PELAO (6mi, 28°) 1500ft
	RNAV	PELAO 1500ft BISPI (5mi, 295°) 1500ft MUCL (5mi, 294°) 60ft (4933mi, 105°) 1500ft IKLAL (4940mi, 285°) IKLAL (turn)

Holding patterns

STAR name	hold at	type	turn	heading*	altitude	leg	speed limit
EMUN3A	EMUNO	VHF	right	18 (198)°	4000ft - 14000ft	DME 4.2mi	230
ESTA4A	ESTAS	VHF	right	227 (47)°	4000ft - 14000ft	DME 4.2mi	230
TARTA1	TARTA	VHF	right	180 (0)°	4000ft - 14000ft	DME 4.2mi	230
VARC3B	VARCA	VHF	right	351 (171)°	4000ft - 14000ft	DME 4.2mi	230
*) magnetic outbound (inbound) holding course
