Airports for X-Plane

Georgetown - Owen Roberts Intl

Airport details

CountryCayman Islands
State[Other]
RegionMW
AirspaceKingston Ctr
MunicipalityGeorge Town
Elevation6ft (2m)
TimezoneGMT -5
Coordinates19.29278, -81.35777
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeMWCR
IATA codeGCM
FAA coden/a

Communication

Owen Roberts Intl ATIS132.350
Owen Roberts Intl Ground Control121.900
Owen Roberts Intl Tower118.000
Owen Roberts Intl GRAND CAYMAN Approach120.200

Runway info

Runway 08 / 26
 length2139m (7018ft)
 bearing77° / 257°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 122m (400ft)

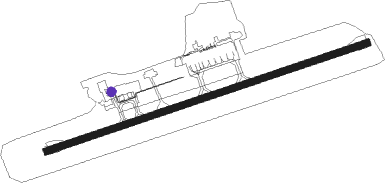

Airport layout - parking location Cayman


Taxiway locations

 A  B  C  D
Parking locations

 Cayman  General  Terminal

Nearby beacons

codeidentifierdistbearingfrequency
GCMGRAND CAYMAN VOR/DME0.8257°115.60

Departure and arrival routes

Transition altitude17000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW08
 SRAY2, RIKEL246mi24°
 KANEX256mi42°
 EEND2, TEXAM2, TURTU243mi75°
 NALRO267mi103°
 ULISA2, RBAY252mi234°
 MAMBI240mi283°
RW26
 KANEX256mi42°
 TEXAM243mi75°
 NALRO2, SEAVI267mi103°
 ULISA252mi234°
 MAMBI240mi283°
 ATUVI143mi355°

STAR starting pointsdistanceinbound heading
ALL
 GORAN310.877°
 GUBEL311.1257°
RW08
 NORTH, SOUTH43.1255°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW08ATUVI (175°)ATUVI
ALONA (40mi, 192°) 1500ft
MOBIX (6mi, 165°) 1500ft
RW08DELKA (32°)DELKA
MOBIX (37mi, 21°) 1500ft
RW08EMONA (4°)EMONA
VODAK (30mi, 348°) 1500ft
MOBIX (6mi, 345°) 1500ft
RW08KANEX (222°)KANEX
ALONA (61mi, 232°) 1500ft
MOBIX (6mi, 165°) 1500ft
RW08LEROL (23°)LEROL
MOBIX (35mi, 9°) 1500ft
RW08MAMBI (103°)MAMBI
MOBIX (32mi, 111°) 1500ft
RW08MATIS (294°)MATIS
VODAK (60mi, 283°) 1500ft
MOBIX (6mi, 345°) 1500ft
RW08MOBIX (77°)MOBIX 1500ft
RW08NALRO (283°)NALRO
VODAK (74mi, 275°) 1500ft
MOBIX (6mi, 345°) 1500ft
RW08NUBIS (77°)NUBIS
MOBIX (32mi, 77°) 1500ft
RW08TEXAM (255°)TEXAM
VODAK (54mi, 249°) 1500ft
MOBIX (6mi, 345°) 1500ft
RW08ULISA (54°)ULISA
MOBIX (43mi, 49°) 1500ft
 RNAVMOBIX 1500ft
SASER (5mi, 77°) 1500ft
MWCR (5mi, 77°) 58ft
(4915mi, 103°) 1500ft
MOBIX (4925mi, 283°)
MOBIX (turn)
RW26ATUVI (175°)ATUVI
TAGUN (36mi, 160°) 1500ft
PODIS (6mi, 165°) 1500ft
RW26DELKA (32°)DELKA
OLIMA (48mi, 46°) 1500ft
PODIS (6mi, 345°) 1500ft
RW26EMONA (4°)EMONA
OLIMA (37mi, 23°) 1500ft
PODIS (6mi, 345°) 1500ft
RW26KANEX (222°)KANEX
PODIS (48mi, 215°) 1500ft
RW26LEROL (23°)LEROL
OLIMA (43mi, 39°) 1500ft
PODIS (6mi, 345°) 1500ft
RW26MAMBI (103°)MAMBI
TAGUN (47mi, 91°) 1500ft
PODIS (6mi, 165°) 1500ft
RW26MATIS (294°)MATIS
PODIS (48mi, 301°) 1500ft
RW26NALRO (283°)NALRO
PODIS (59mi, 287°) 1500ft
RW26PODIS (257°)PODIS 1500ft
RW26RIKEL (204°)RIKEL
PODIS (41mi, 192°) 1500ft
RW26TEXAM (255°)TEXAM
PODIS (33mi, 255°) 1500ft
RW26ULISA (54°)ULISA
OLIMA (59mi, 63°) 1500ft
PODIS (6mi, 345°) 1500ft
 RNAVPODIS 1500ft
AMBOR (5mi, 257°) 1500ft
MWCR (5mi, 257°) 56ft
(4915mi, 103°) 1500ft
PODIS (4906mi, 283°)
PODIS (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
GORAN3GORANVHFright260 (80)°> 1500ft1.0min timed230
GUBEL3GUBELVHFright80 (260)°1500ft - 60000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
